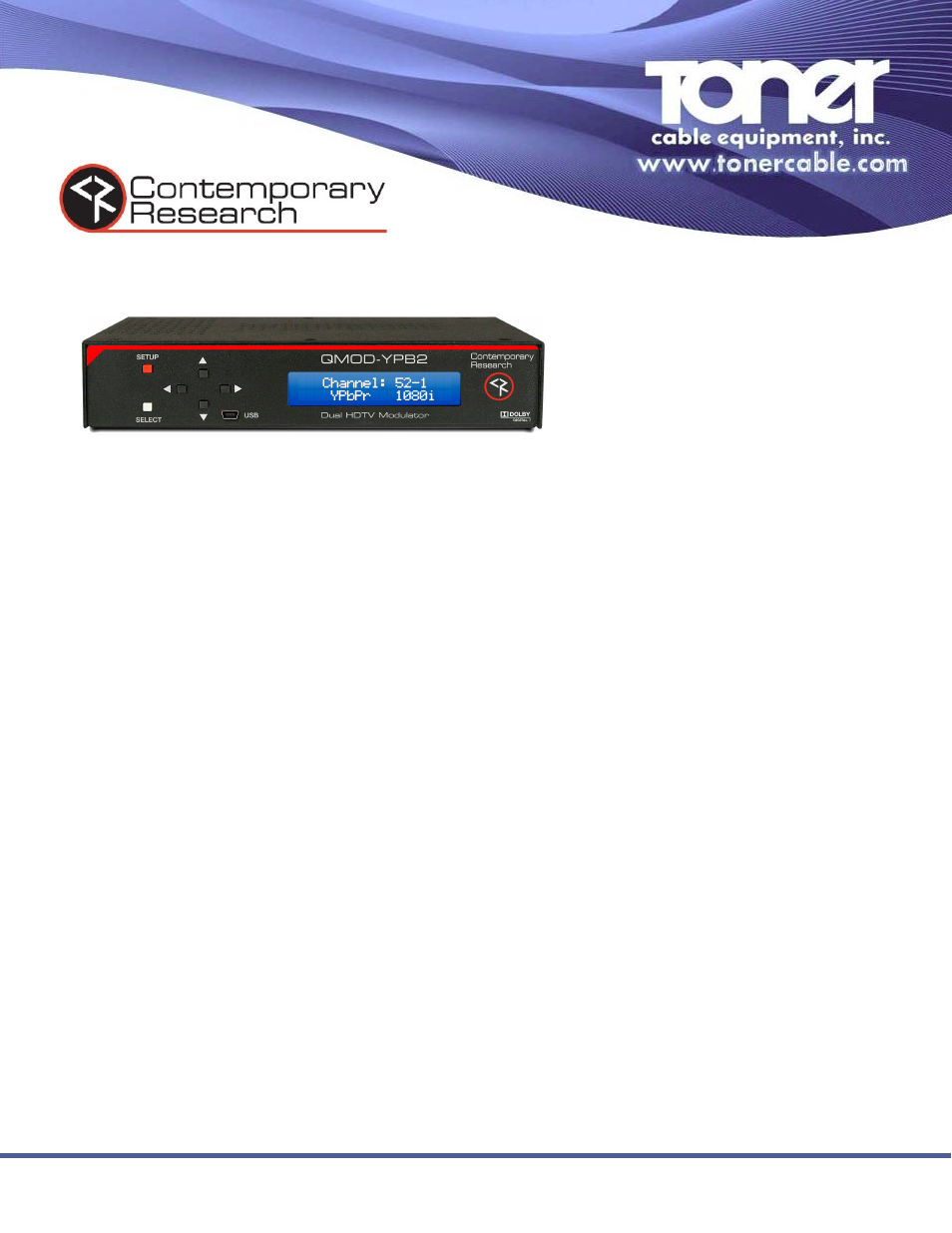

Toner Cable QMOD-YPB2 HDTV Modulator User Manual
Qmod-<3% hdtv modulator

969 Horsham Road
l
Horsham, Pennsylvania 19044 USA
l
Phone: 215-675-2053 Fax: 215-675-7543
l
QMOD-<3% HDTV Modulator
Applications
HD/SD Cable Receivers
HD/SD Satellite Receivers
HD/SD Media Sources
Sources
Two Component inputs; 1080i, 720p, 480p, 480i
Two Composite/CC video inputs for encoding, captioning, or EAS use
Two sets of stereo and SPIDF coax audio inputs
Encoding
Creates a high-definition 720p/1080i MPEG-2 stream for broadcast
Accepts stereo, PCM, or pass-through AC-3 audio, can create two MTS
sub-channels for each input, supporting two languages each
Includes captioning from Line 21 data on composite video inputs
Flex encoding compensates for slightly off-frequency video, or 60/30 Hz
sources such as consumer HD cameras
Output
Delivers a fully agile QAM 64/256 digital cable channel 2-135
Up to 270 HD Programs/Channels per system
Streams IPTV from GigE Ethernet port
Distributes channel over an on-site broadband cable system with
adjustable output level to 29 dBmV, compatible with all cable format
broadband systems
Operation
Sets up with front-panel buttons and easy to use menus, including inputs,
encoding, channel, and RF options.
Onboard Web page for setup and monitoring
Control with IP Telnet commands
Saves power and rack space using efficient design
Includes compact switching power supply
Mounts in optional 1RU single (RK1) or dual (RK2EZ) 19” rack kits
Meets RoHS safety and California energy standards
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
The QMOD-YPB2 continues the QMOD
TM
track
record for quality and innovation, setting a
new benchmark for features and performance,
converting two HD Component sources into one
HD RF channel.
