Attenuator pads, 1 ghz fam series / 2.5 ghz sfam series, Sfam 2.5 ghz satellite power passing attenuators – Toner Cable FAM Attenuator Pads User Manual
Page 2
969 Horsham Road
l
Horsham, Pennsylvania 19044 USA
l
Phone: 215-675-2053 Fax: 215-675-7543
l
Specifications Subject To Change Without Notice
Rev
06-13
©Toner Cable Equipment, Inc.

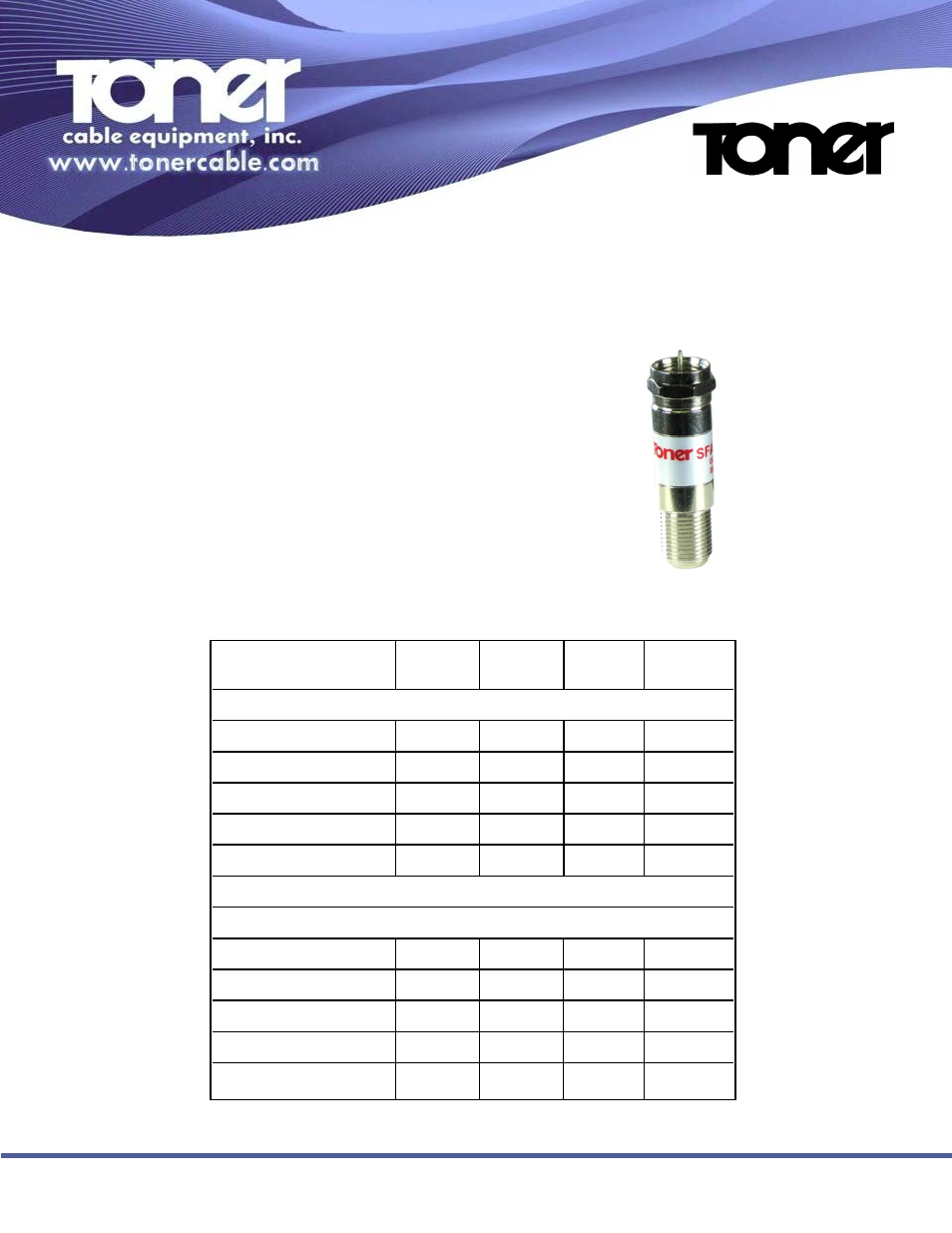

Attenuator Pads
1 GHz FAM Series / 2.5 GHz SFAM Series
MODEL
SFAM-3
SFAM-6
SFAM-8
SFAM-10
ATTENUATION (dB)
5-600 MHz
3.0
6.0
8.0
10.0
600-1000 MHz
3.0
6.0
8.0
10.0
1000-1600 MHz
2.7
5.8
7.5
9.5
1600-2050 MHz
2.5
6.0
7.5
9.5
2050-2500 MHz
2.5
6.1
7.3
9.3
RETURN LOSS (dB) minimum
5-600 MHz
16
18
18
18
600-1000 MHz
13
14
13
13
1000-1600 MHz
10
11
11
11
1600-2050 MHz
9
10
10
10
2050-2500 MHz
7
7
7
7
SFAM 2.5 GHz Satellite Power Passing Attenuators
POWER PASSING:
30 VDC @ 1200 mA
FREQUENCY RANGE:
5-2500 MHz
IMPEDANCE:
75 ohms
ACCURACY:
± 0.8 Db
