NVE-1-3G & NVD-1-3G
JPEG 2000 Encoder / Decoder
Model Description
NVE-1-3G Encoder, JPEG 2000, 3G HD-SDI, HD, SMPTE 424M, 292M and 259M, Stand-alone
NVD-1-3G Decoder, JPEG 2000, 3G HD-SDI, HD, SMPTE 424M, 292M and 259M, Stand-alone
NV-PS 12 VDC Power supply
Ordering Information Encoding & Decoding
Specifications Values
Compression JPEG 2000
Video Resolutions 1080p, 1080i, 720p, 576i and 480i
Latency < 50 ms+ network latency
Bit Rate 20 to 800 Mbps
Frame Rate 24 Hz to 60 MHz
Pixel Clock 25 MHz to 150 Hz
Color Depth 12-Bit
Physical Characteristics
Specifications Values
Input Power 12 VDC +/- 10%
Power Consumption 13 Watts
Weight 6.2 lbs (2.8 kg)
Dimensions 16” W x 9.8” D x 1.77” H (40.5cm x 25cm x 4.5cm)
(19” plug-in with 2 cards)
Operating Temperature -20 to 80° C
3G HD-SDI Encoder
Ethernet Port
USB A & B Keyboard Mouse Ports
Reserve Slot /
Audio Module
1 Input
With
Loopback
3G HD-SDI Decoder
1 Input
With
Loopback
USB A & B Keyboard Mouse Ports
Ethernet Port
Reserve Slot /
Audio Module

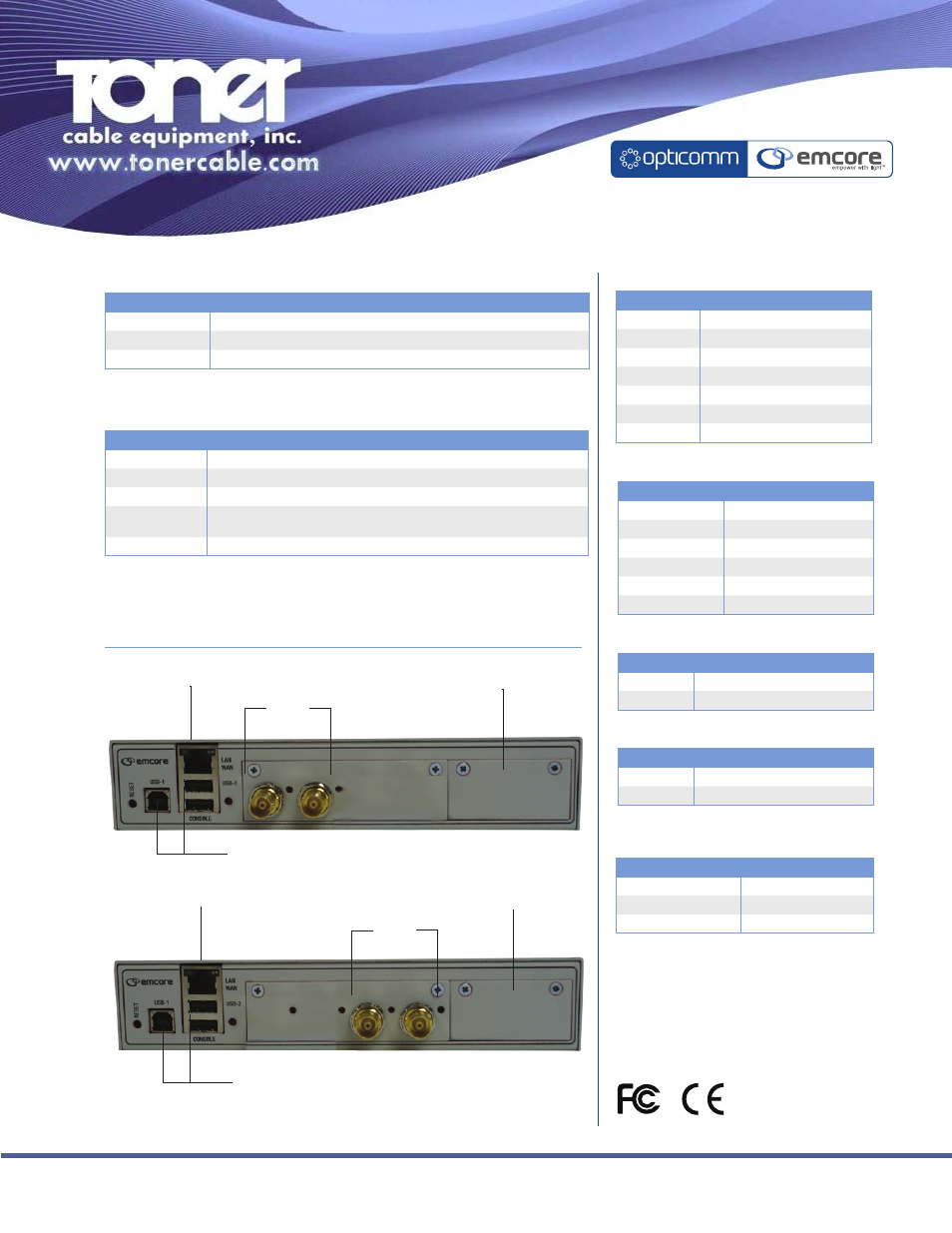

Connection Diagram
Network
Specifications Values
Ethernet 1x 10/100/1000 Base TX using RJ45
Data USB 2.0 for control and programming
Data
Specifications Values
Data USB HID (keyboard and mouse)
Connector USB type A (1), USB type B (1)
Management
Specifications Values
Software Internal web server
Serial Control CLI over USB console port
Remote Monitoring & Control SNMP v1, v2, v3
Compliance
Video
Specifications Values
Video Inputs 3G HD-SDI, HD-SDI, SDI
Data Rate 2.97, 1.485Gbps and 270 Mbps
Standards SMPTE 424M, 292M and 259M
Encoder Video interfaces 1 input with loopback
Decoder Video interfaces 1 output
Connector Type BNC 75 ohm
