Specifications Subject To Change Without Notice
Rev 10-11
©Toner Cable Equipment, Inc.
969 Horsham Road
l
Horsham, Pennsylvania 19044 USA
l
Phone: 215-675-2053 Fax: 215-675-7543
l
Front Panel
Tactile Raised Keypad Buttons:
Mode, Select, Enter, Escape, Up, Down,Left, Right
Blue Translucent LCD:
20 character by 2 row
Front Panel Host LEDs:
Power, Alarm, Link, Busy, MPE
Front Panel LEDs:
ASI, SMPTE 310M, Channels 1-12, Alarm
Standards Compliance
SCTE 30
Ad Server to Splicer IP based command and
control protocol
SCTE 35
Via SCTE 30 from Splicer Transport private data cueing
Storage
300GB RAID 1
Inputs
Gigabit Ethernet
DTMF/GPI
Twelve GPI or GPO
Twelve DTMF In
Output Options
ASI Mirrored (BNC x 3) - 213 Mbps Max
Jitter less than 150 (nS)
PCR, PTS re-stamping
SMPTE 310M Option (BNCx2) - 19.4 Mbps
Host Platform
PowerPC CPU
Linux 2.6 Kernel OS
10/100 Ethernet RJ-45
Serial Port (RJ-48)
GPIO (9 Pin D-sub)
HTTP, FTP, Telnet, IP Logging, DHCP, XCP
(Adtec encrypted layer 3 protocol)
Power
70-240 VAC switching power supply
50/60 Hertz
Rated at 150 Watts nominal usage 40 watts
Physical
19 in. wide, 1.75 in. tall, 14 in. deep
1 Rack Unit
Environmental
Active cooling (Push pull Fans)
0 to 90 Degrees Fahrenheit
Less than 70% RH
Non-Condensing

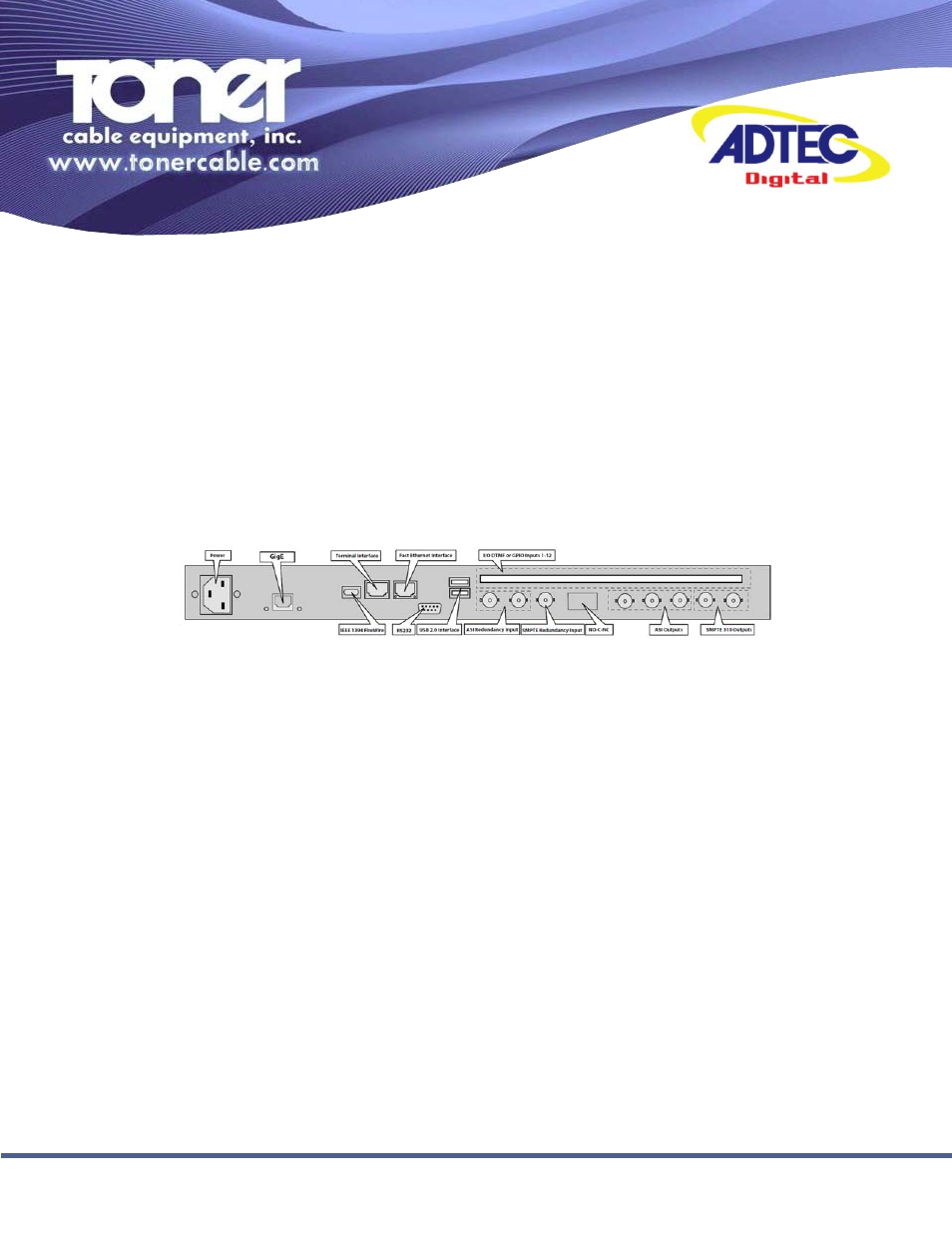

Specifications
DPI1200
Digital Program Insertion Ad Server
Power:
70 – 240 VAC switching power supply; standard 3-pin computer power plug
GigE:
Gigabit Ethernet
Firewire:
IIEE1194 FireWire (reserved for future use)
Terminal Interface:
Back end serial port for Adtec service technicians
Fast Ethernet:
10/100 base T ethernet interface
RS232:
Used to communicate with redundancy switch
USB 2.0:
Reserved for future use.
I/O DTMF or GPIO:
Inputs 1-12 DTMF tone / GPIO board option for DPI-1200
ASI Redundancy Input:
Used to link 2 DPI-1200’s in tandem; one as primary, one as backup
SMPTE Redundancy Input:
Used to link 2 DPI-1200’s in tandem; one as primary, one as backup
No-C-NC:
Redundancy Tally, used to hook up to an external alarm device
ASI Outputs (3):
Triple Mirrored ASI Outputs
SMPTE 310 Outputs (2):
Optional Mirrored SMPTE Output
