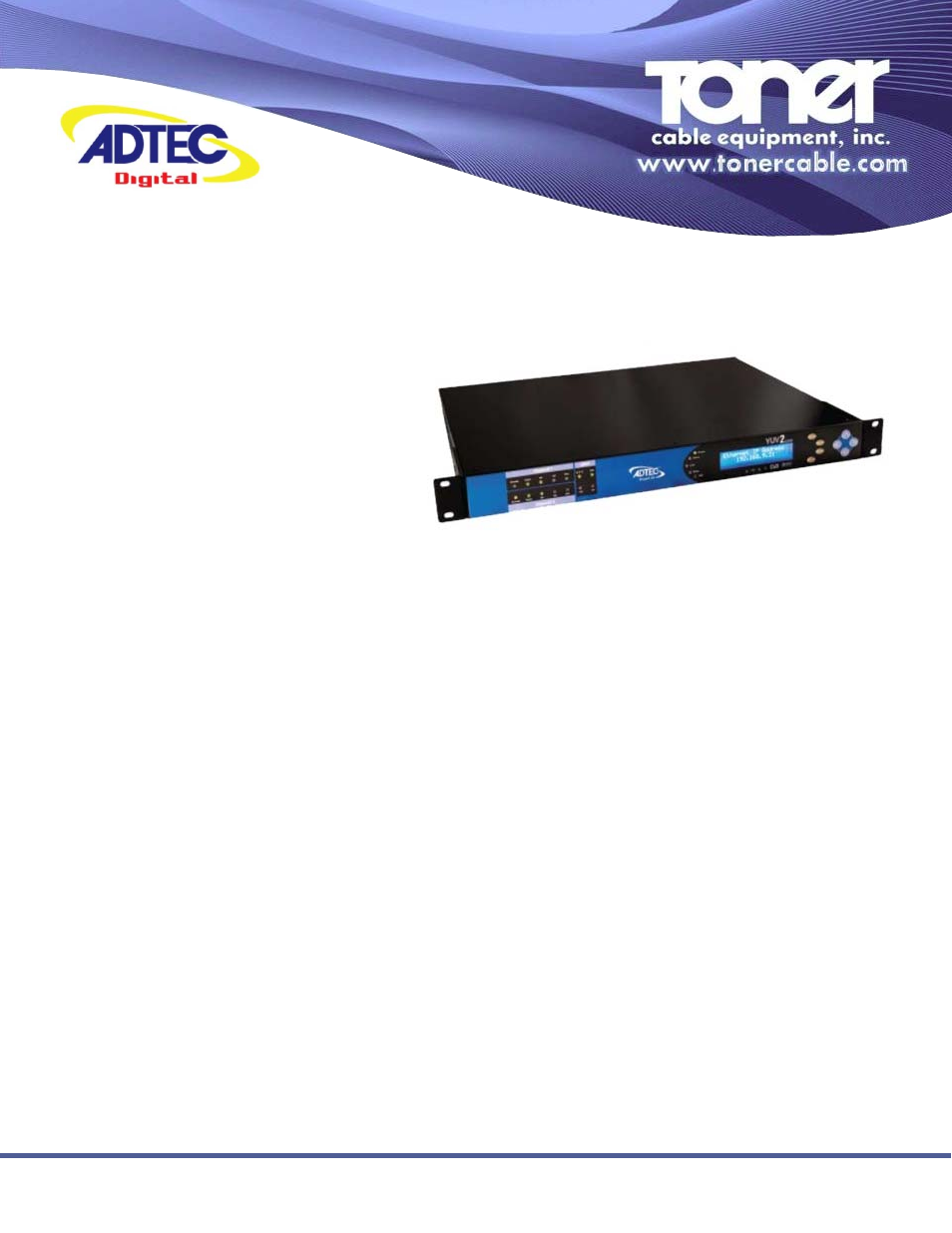

DPI1200
Digital Program Insertion Ad Server
969 Horsham Road
l
Horsham, Pennsylvania 19044 USA
l
Phone: 215-675-2053 Fax: 215-675-7543
l
Digital Program Insertion Ad Server Designed to
concurrently insert up to twelve MPEG2 or AVC
programs into a digital cable or television service,
the DPI-1200 Ad Server offers the absolute highest
transport standards required for broadcasting. The
DPI-1200 imports programs to its core, processes
and multiplexes them in preparation for their deliv-
ery via ASI output to a single or multiple ad splicers
and seamlessly interfaces with Adtec's adVantage
Enterprise Management Solution. The DPI-1200
interoperates with ad insertion systems from C-
COR and SeaChange as well.
Combine the ad server with Adtec's mediaHUB-HD Pro or mediaHUB-HD 422 Studio Encoder to bridge the transition
from analog and SDI digital insertion to digital program insertion.
Benefits
• Twelve Concurrent Inserts:
The DPI-1200 delivers ads to seamless back-to-back
splicing on twelve unique programs. Its ability to
stitch together the media and maintain broadcast
transport standards is unmatched by the competition.
• Gigabit Ethernet Input:
The DPI-1200 utilizes a GIGE Ethernet interface to
provide rapid media loading.
• RAID storage:
The DPI-1200 includes 300 GB of RAID storage.
• DVB-ASI Outputs:
The DPI-1200 provides three mirrored DVB-ASI out-
puts. This is ideal for interfacing with up to three Ad
Splicers concurrently without external ASI distribution
hardware.
• SMPTE-310M (Optional):
The DPI-1200 optionally provides the highly accurate
clock and physical interface for ATSC 8VBS modula-
tors. When SMPTE-310 is enabled, the ASI outputs
mirror the SMPTE clock rate.
• Absolute Control:
Controlling and configuring the DPI-1200 is user-
friendly. Whether using the integrated front panel
keypad and LCD or Telnet, the DPI-1200 responds
rapidly and reliably to the desires of the operator.
• Traffic and Billing Interface:
The DPI-1200 provides a native Traffic and Billing
interface. When combined with the Adtec Traffic and
Billing Gateway Server, the DPI-1200 will automati-
cally retrieve media and schedules and return logs to
their appropriate folders on the LAN/WAN.
