Specifications
Feature
Physical 8.5” [216mm] wide x 1.73” [62mm] height (1RU) x 6.0” [153mm] deep
1.5 lbs [0.68kg]
+32° to 122° F operating temperature, convection cooled
Rack mounting for one or two units side-by-side optional (RK1, RK2EZ)
Encoding MPEG2 Profile:MP@HL for HD, MP@ML for SD
1080i, 720p, 480p, and 480i resolution
Video Encoding bitrate 11, 13, 15, 18 or 25 Mbps
AC-3 (Pass-through or stereo) or MPEG1, Layer 2 audio
MTS Dual-language capability
Full scaling for video up- and down-conversion with optional upgrade key
Dual-channel operation with optional upgrade key
Modulation Switchable 64/256 QAM, J83 Annex B, Interleaving Modes (128,1)
MER 38 dB typical
Compliance FCC Class B, ROHS, meets California standards
Front Panel Select and directional buttons for menu setup
Menu LCD, Blue with 2 lines of 20 white characters each

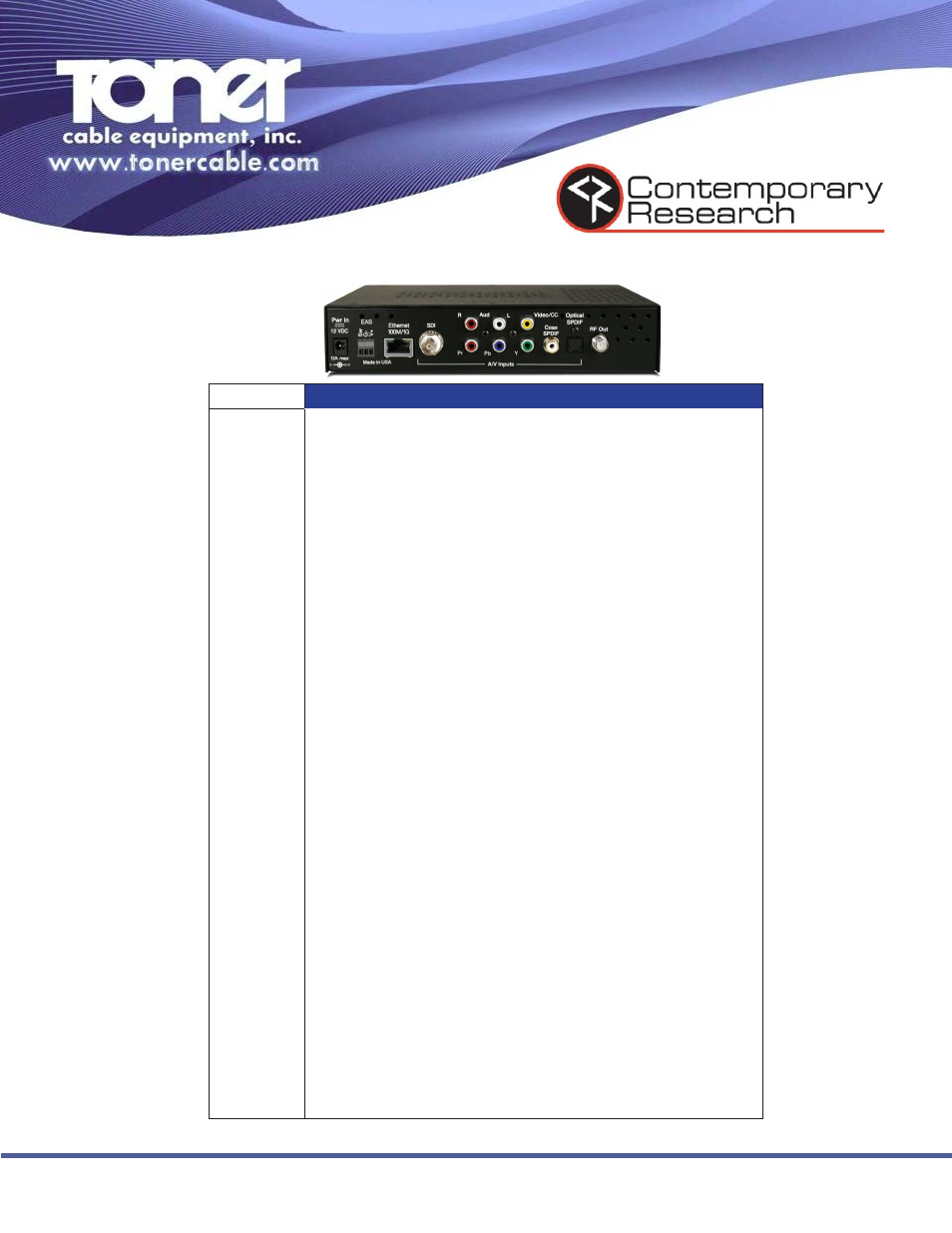

Back Panel
Power 2.1mm coaxial jack (inside center conductor positive)
1.1A maximum, 11.5 to 13.5 VDC, 12 VDC typical
EAS Control 3 GPI Pins for momentary or latching control
Ethernet RJ-45 GigE Ethernet connector for IP control, IPTV and internal Web page
SDI Input BNC Female
SD-SDI @ 270Mb/s, HD-SDI @ 1.485Gb/s, 3G SDI @ 2.970Gb/s
Coax cable auto-equalizer for SD up to 460m, HD up to 230m (RG6)
Resolutions 1080p at 59.94Hz, 1080i/720p at 59.94/60Hz, or SD 480i at 29.97Hz
Video Format YCbCr 4:2:2
Accepts SDI embedded Stereo/AC-3 48KHz audio
Widescreen option for 480i
Analog Video Component: RCA Y, Pb, Pr (1080i/720p/480p/480i), 59.94/60/29.97/30 Hz
S-Video: Y(Composite), C (Blue Pb) 480i, 29.97 Hz
Composite Video: RCA female (480i), 29.97 Hz, supplies line 21 Captioning
Audio Inputs Coax and optical SPDIF digital audio inputs
Analog L and R: 2 stereo RCA jacks
Inputs assignable to video inputs
RF ‘F’, female, 75 ohm impedance
Agile, channels 2-135 (48-860 MHz), standard, HRC, or IRC spacing
6 MHz bandwidth fits any open channel without interference to adjacent channels
1 KHz resolution, +/- 30 ppm accuracy, +/- 35 ppm stability
29 dB typical output power, attenuated in 5 steps, approx 4 dB
Includes Compact PS12-1.5 switching power supply, 1.5A 12 VDC, fits power strip
Free option to include PS12-4Y power supply with every 2-3 modulators when ordered
Options RK1 Single Rack Kit
RK2EZ Dual Rack Kit
Upgrade keys for dual-channel operation and scaling
QMOD-SDI1.5 HD-SDI Modulator
