SPECIFICATIONS - LA141, LA142, LA143
Gain
950 MHz 10 dB
1450 MHz 11 dB
2150 MHz 14 dB
2400 MHz 13 dB
Maximum Input (32 transponders)
IM2 with 2 tones @ -30 dBm
-40 dBc
IM3 with 2 tones @ -23 dBm -45 dBc
1 dB Compression, 1 tone -6 dBm
Passband Flatness
Any 24 MHz band 0.1 dB
Input Return Loss 950-2150 MHz 17 dB
Output Return Loss 950-2150 MHz 15 dB
Noise Figure 6 dB
Power Specifcations
Voltage 12 to 22 VDC
Current 45 mA / channel

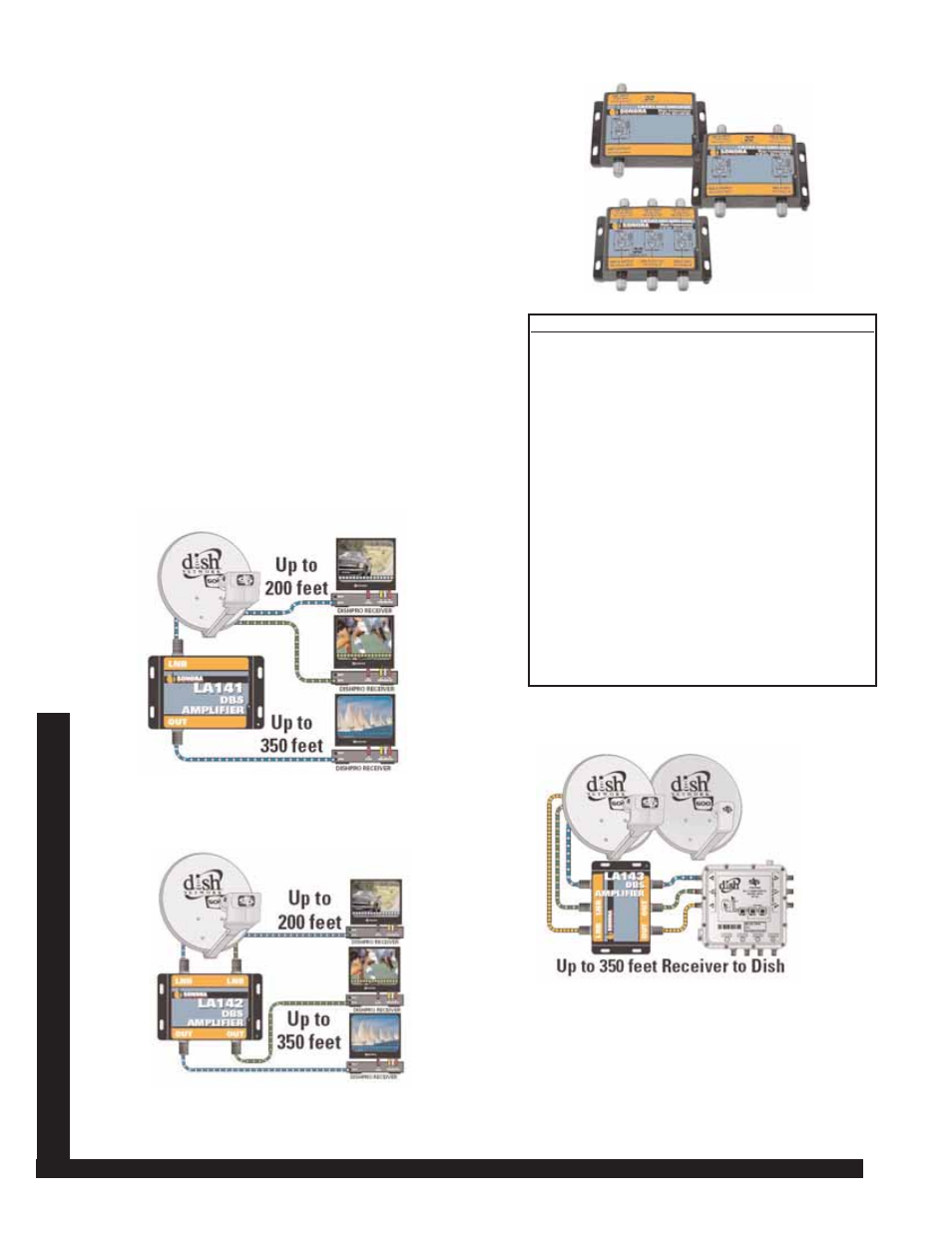

DBS Line Powered Amplifier
Model LA141, LA142, LA143
Indoor / Outdoor 950 to 2400 MHz DBS line powered
amplifiers have 14 dB gain. Available in single, dual and
triple configurations. Model LA141, LA142, or LA143
inserted between the receiver and the dish boosts the
DBS signal level the equivalent of 150 feet of RG-6
cable.
• Receiver Compatibility: . . . . . . . . . . . . DirecTV, DISH
• High Input Level: . . . . . . . . . . . . . . . . . . . . . .-28 dBm
• DC & 22 kHz/DiSeQc passing: . . . .low insertion loss
. . . . . . . . . . . . . . . . . . . . . . .high impedance to ground
• Line Amplification . . . . . . . . . . . . .14 dB (150 ft RG-6)
