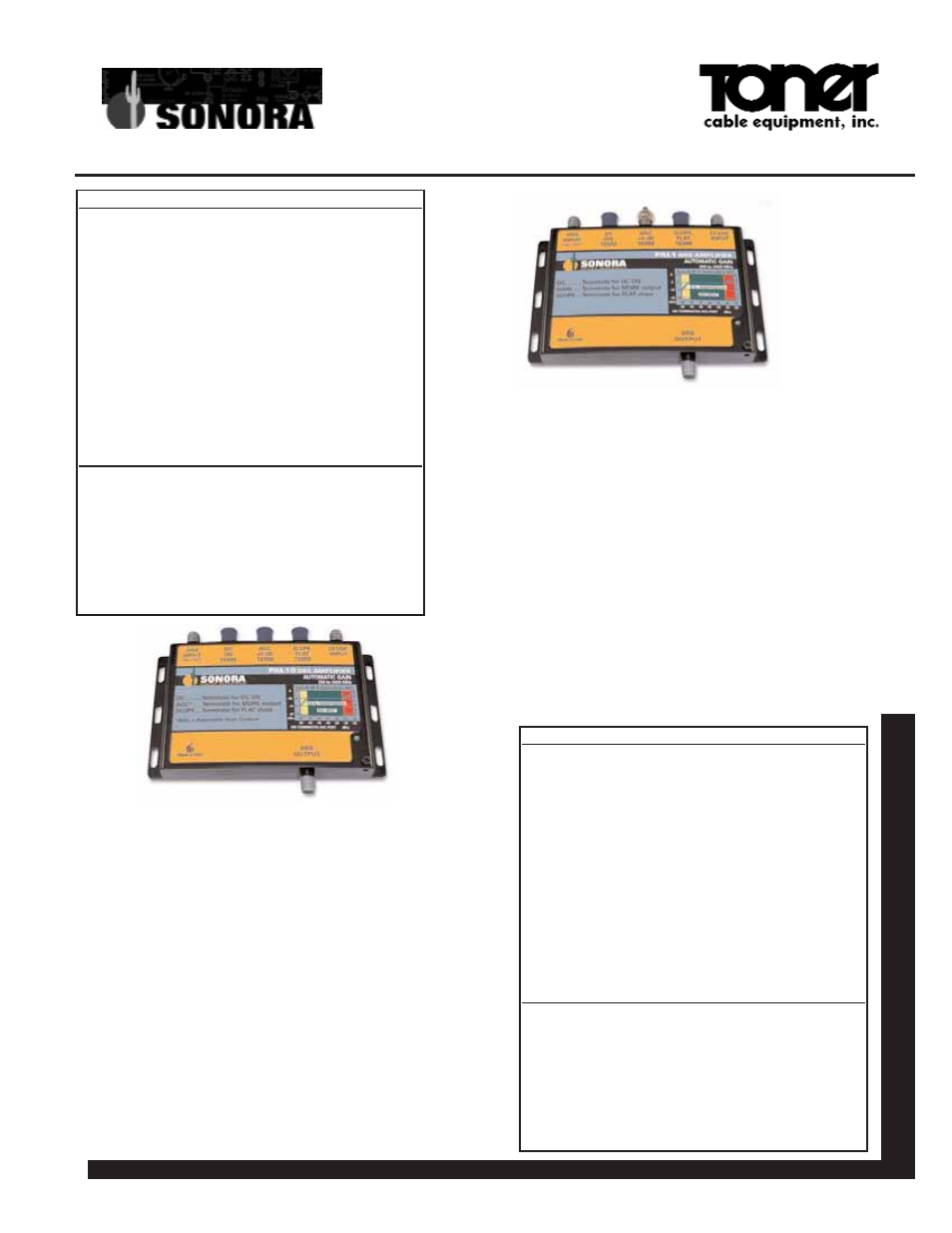

Autogain DBS Amplifier
Model PAL1-T
Model PAL1-T powers a DBS dish, amplifies the DBS
signals, pre-emphasizes high frequencies to compen-
sate for cable slope and automatically adjust signal out-
put level for -1 dBm per transponder (for 32 equal ampli-
tude input transponders).
• DBS compatibility: . . . . . . . . . . . . . . .DirecTV & DISH
• MADE IN USA: . . . . . . . . . . . . . . . . . .3 YR Warranty
• Indoor/Outdoor Case: . . . . . . . . . . .Diecast Aluminum
• Powers LNBs: . . . . . . . . . . . . . .short circuit protected
• Automatic Gain: . . . . . . . . .preset for -1 dBm (32 CH)
• Slope Compensation: . . . . .select: 50 or 300 ft RG-6
SPECIFICATIONS - PAL1-T
Passband Flatness
Any 24 MHz Band
0.1 dB
Slope Compensation
ON / OFF
250 MHz to 2150 MHz
8 dB
950 MHz to 2150 MHz
6 dB
Input Return Loss
12 dB
Output Return Loss
13 dB
Preset AGC Output (32 Transponders) -1 dBm
AGC Window @ -1 dBm out
-21 to -41 dBm
(for 32 equal amplitude KU transponders)
Noise Figure
7 dB @ 2150 MHz
RF SPECIFICATIONS - PAL1-T
Passband Gain @ inputs below AGC threshold
Frequency
Flat
Slope
Flat
Slope
250 MHz
40 dB
36 dB
38 dB
34 dB
950 MHz
38 dB
38 dB
36 dB
36 dB
1450 MHz
39 dB 40 dB
37 dB
38 dB
2150 MHz
41 dB
44 dB
39 dB
42 dB
2400 MHz
38 dB
41 dB
36 dB
39 dB
Satellite Amplifiers
Autogain DBS Amplifier
Model PAL10-T
DBS (DirecTV or DISH) 250 to 2400 MHz high power
automatic gain amplifier. (AGC stands for Automatic
Gain Control). Model PAL10-T powers a DBS dish,
amplifies the DBS signals, pre-emphasizes high fre-
quencies to compensate for cable slope and automati-
cally adjusts signal output level for -10 dBm per
transponder (for 32 equal amplitude input transponders).
• DBS compatibility: . . . . . . . . . . . . . . .DirecTV & DISH
• MADE IN USA: . . . . . . . . . . . . . . . . . .3 YR Warranty
• Indoor/Outdoor Case: . . . . . . . . . . .Diecast Aluminum
• Powers LNBs: . . . . . . . . . . . . . .short circuit protected
• Automatic Gain: . . . . . . . .preset for -10 dBm (32 CH)
• Slope Compensation: . . . . .select: 50 or 300 ft RG-6
SPECIFICATIONS - PAL10-T
Passband Flatness
Any 24 MHz Band
0.1 dB
Slope Compensation
ON / OFF
250 MHz to 2150 MHz
8 dB
950 MHz to 2150 MHz
6 dB
Input Return Loss
12 dB
Output Return Loss
13 dB
Preset AGC Output (32 Transponders) -10 dBm
AGC Window @ -10 dBm out
-29 to -49 dBm
(for 32 equal amplitude KU transponders)
Noise Figure
7 dB @ 2150 MHz
RF SPECIFICATIONS - PAL10-T
Passband Gain @ inputs below AGC threshold
Frequency
Flat
Slope
Flat
Slope
250 MHz
40 dB
36 dB
38 dB
34 dB
950 MHz
38 dB
38 dB
36 dB
36 dB
1450 MHz
39 dB 40 dB
37 dB
38 dB
2150 MHz
41 dB
44 dB
39 dB
42 dB
2400 MHz
38 dB
41 dB
36 dB
39 dB
