Toner Cable 2807 Mini-Node Fiber Optic Receiver User Manual
Fiber optic receivers
Telephone:
Nationwide:
Fax:
E-mail:
Internet:
08/08
Emcor
e 2807 & 2808 Fiber Optic R
eceiv
er
s
215-675-2053
800-523-5947
215-675-7543
http://www.tonercable.com
969 Horsham Road
Horsham, Pennsylvania 19044 USA
Features
Wide bandwidth of 50 to 860 MHz accommodates up to 110
channels on all models.
Provides excellent picture quality with a CNR up to 54.5 dB,
CSO of -63, and CTB of -66 dBm.
Provides up to +38 dBmV RF output signal over the entire
optical input range, allowing a greater number of drops or
splits.
Wide optical input range of -8 dBm to +4.5 dBm permits the
use of a lower power transmitter, lowering system cost.
Capable of responding to changing system requirements
with field-installable return path modules.
Digitally adjustable built-in RF attenuator and equalizer set-
tings allow for accurate adjustment of parameters via an
LCD screen.

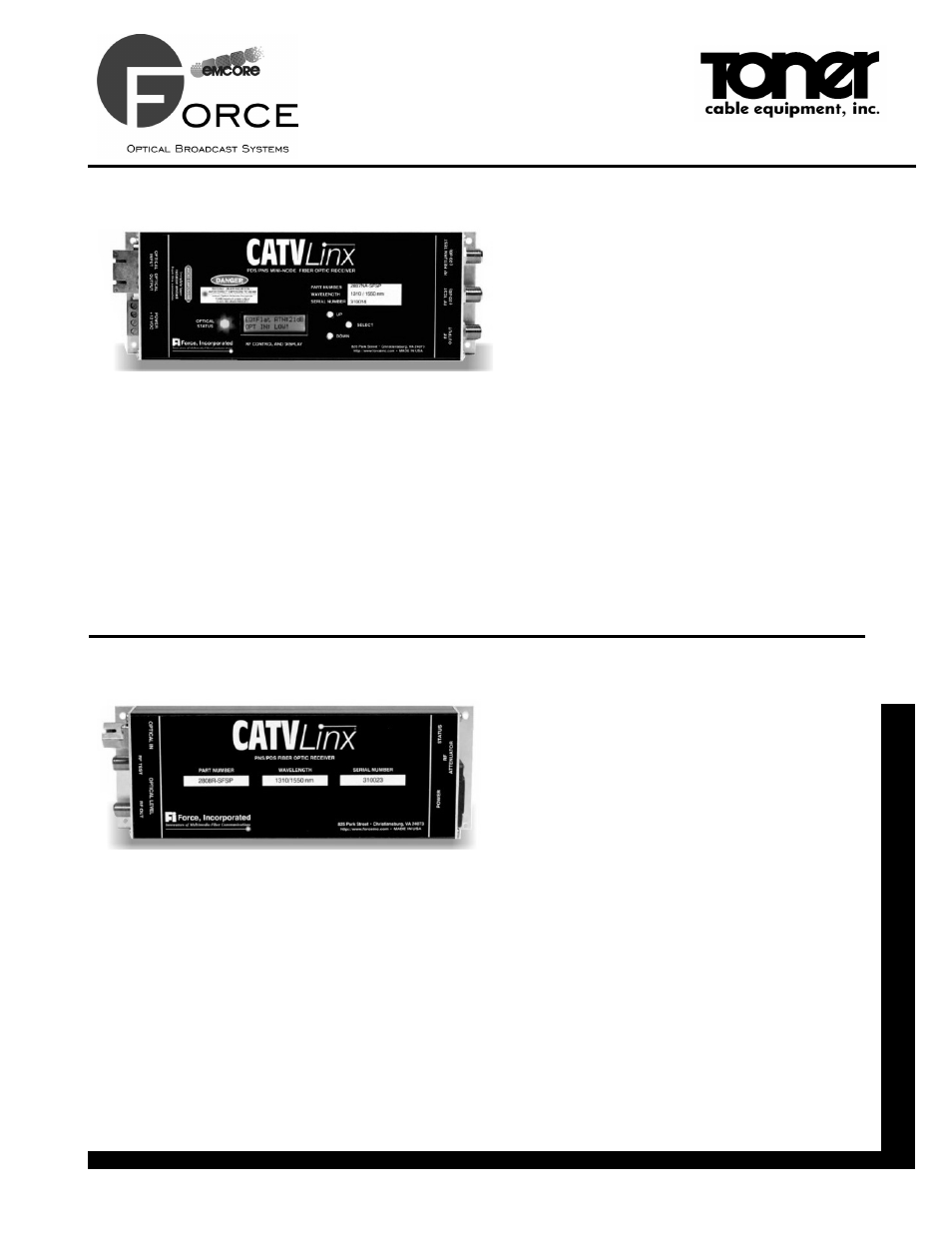

Model 2807 Mini-Node Optical Receiver
Model 2808 110 Channel VSB/AM Fiber Optic Receiver
The Force CATVLinx
®
Model 2807 Mini-node
Optical Receiver, working with either the Model
2804 PDS or 2805 PNS transmitter, provides
CATV distribution headend operators with an
extensive array of features that offer a low-cost
solution to increase system performance. The unit
provides an output of +38 dBmV of RF over the
entire optical input range, allowing multiple RF
splits without the use of an external RF amplifier.
Additionally, the mini-node's ability to operate
over a wide optical input range of -8 to +4.5 dBm
allows for a variety of system designs without
degrading performance. An LCD display allows
the operator to accurately set the tilt and RF out-
put levels to ensure quality of service. The Model
2807 mininode can be ordered either with or with-
out the return path module. A separate return path
module may also be ordered, allowing for a quick
factory upgrade or laser replacement. The return
path module utilizes either an FP or DFB laser.
The modular design of the Model 2807 offers the
flexibility and performance demanded by today's
broadband professional.
Features
Wide bandwidth of 40 to 860 MHz accommodates up to 110
channels on all models.
Provides excellent picture quality with a CNR up to 54.5 dB,
CSO of -63, and CTB of -66 dBm.
RF Output up to +28 dBmV allows a greater number of
drops or splits.
Wide optical input range of -8 dBm to +4.5 dBm permits the
use of a lower power transmitter, reducing system cost.
Built-in, universal AC power supply frees system user from
bulky wall-mount AC adapters.
The Force CATVLinx
®
Model 2808 110 Channel
Private Network Solution (PNS)/Professional
Distribution Solution (PDS) VSB/AM Fiber Optic
Receiver, working with Model 2804 PDS or 2805
PNS transmitter, provides CATV distribution head-
end operators with an extensive array of features
that offer a low-cost solution to increase system
performance. The unit provides an RF output of
+28 dBmV, allowing multiple RF splits without the
use of an external RF amplifier. The Model 2808
is equipped with a manual gain control that allows
the user to adjust the RF output level for optimum
performance. Additionally, the receiver's ability to
operate over a wide optical input range of -8 to
+4.5 dBm allows for a variety of system designs
without degrading performance. The Model 2808
can transport up to 110 CATV channels using the
entire high-frequency bandwidth, or alternatively,
it can transport up to 80 channels of standard
CATV signals while utilizing the remaining high-
frequency bandwidth to transport 30 digital QAM
channels. The receiver includes a universal AC
power supply, freeing the user from a bulky wall-
mount AC adapter. The streamline design of the
Model 2808 offers the flexibility and performance
demanded by today’s broadband professional.
2807 & 2808
Fiber Optic Receivers
