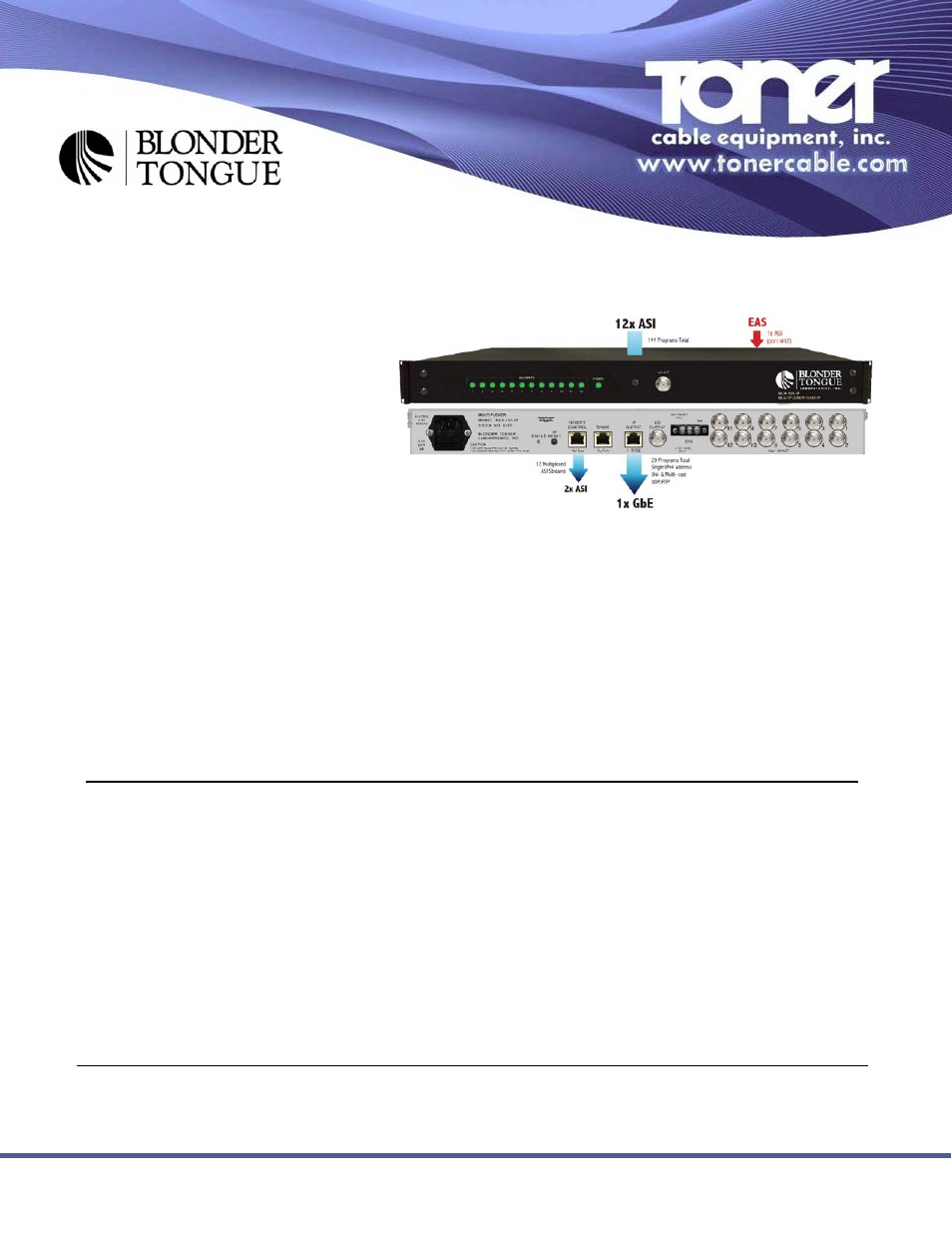

MUX-12A-IP
12:1 ASI-to-IP Multiplexer 12x ASI ◄► 1x GbE
969 Horsham Road
l
Horsham, Pennsylvania 19044 USA
l
Phone: 215-675-2053 Fax: 215-675-7543
l
MUX-12A-IP (Multiplexer; 12:1 ASI-to-IP)
is designed for cherry-picking applications,
allowing operators to create custom-made
channel lineups by grooming standard-
definition (SD) and high-definition (HD)
programs on an as-needed basis.
The multiplexer accepts up to twelve (12)
unencrypted MPEG-2/H.264 inputs in ASI
format, and multiplexes them into to one
MPEG-2/H.264 Multi-Program Transport
Stream (MPTS) which is then encapsulated and assigned to a single IPv4 address in 1000Base-T Ethernet
(GbE) format suitable for distribution over Cat-5 networks. Two identical MPTS outputs are also available in ASI
format.
Each ASI input stream can contain up to 12 unencrypted programs, for a total of 144 input programs. The GbE
output (single IPv4 address) can contain up to 20 programs groomed from any of the available 144 input pro-
grams, not to exceed 214 Mbps.
The multiplexer is EAS-compliant (Emergency Alert System) – operator can assign ASI port #12 as an EAS
input which, when activated, will override the content of all other ASI inputs. Comprehensive remote monitoring
and control is accomplished via a GUI-based interface using any standard Web browser.
ASI Input
• Supports unencrypted MPEG-2/H.264 Single or Multi
Protocol Transport Services (SPTS or MPTS)
• ASI port #12 is user-selectable for EAS messaging
• Supports 12 unencrypted ASI inputs, each up to 270
Mbps
• Performs PCR (Program Clock Reference) correc-
tion
• Performs Null Packet insertion & deletion
GbE Output
• Provides robust protection against IP network jitter
and delay
• Performs PCR (Program Clock Reference) replace-
ment
• Supports Uni- and Multi-cast thru RTP/UDP proto-
cols
• Supports IPv4, ARP, IGMPv2, and ICMP protocols
• Supports variable and constant bitrates
• Provides a single IPv4 address & port
Ordering Information
Model Stock
#
Description
MUX-12A-IP
6517
12:1 ASI-to-IP Multiplexer; 12xASI inputs; 1xGbE output + 2xASI ancillary outputs; EAS compliant
