Ordering Information
LNB Input Frequency:
950-2150 MHz
Switching Voltage:
13-14 VDC-RHCP
17-18 VDC-LHCP
External Power Adapter:
24 VDC 600 mA
DC Passing Capacity:
500 mA
Connectors:
“F” Type
Weight (without AC Adapter):
5.1 lbs
TSMS-2150X-8AUV
4.5 lbs
TSMS-2150X-16AUV
5.1 lbs
Dimensions:
19”L x 2.87”D x 1
3
/
4
”H
Total # of Channels
Max. Input Level
Max. Output Level
7
17 dBmV
-4 dBmV
15
8 dBmV
-6 dBmV
TSMS2150X Specifications
Output Level
TSMS2150-8AUV
8 Outputs
TSMS2150-16AUV
16 Outputs
TSMS2150X-8AUV
TV Antenna Input Frequency:
40-860 MHz
Insertion Loss:
950-1750 MHz
-6 dB minimum
1750-2150
-10 dB
40-860 MHz
-4 dB typical
Isolation:
Horizontal/Vertical
-25 dB
Output-to-Output
-14 dB
TSMS2150X-16A
Insertion Loss:
950-1750 MHz
-8 dB typical
1750-2150 MHz
-13 dB typical
2050-2150 MHz
-16 dB typical
Isolation:
Horizontal/Vertical
-20 dB
Output-to-Output
-12 dB

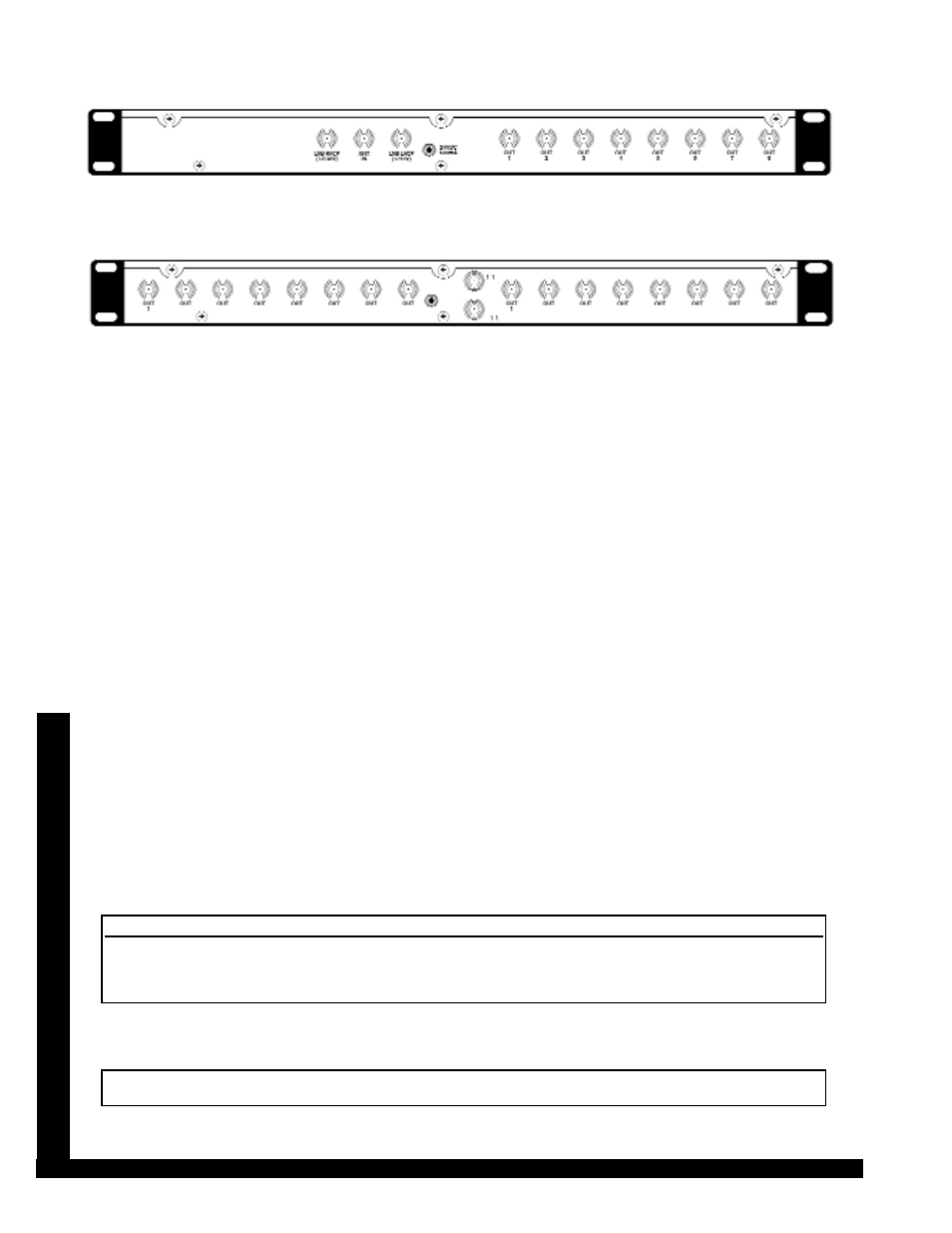

TSMS2150X-8AUV Rear View
TSMS2150X-16A Rear View
