OTX-1HDMI-IR
HDMI with IR Fiber Optic Extender
OTX-1HDMI-IR/XMT-XX-LC OTX-1HDMI-IR/RCV-XX-LC
HDMI Input
IR Connector
HDMI Output
LC Optical Connectors
IR Connector

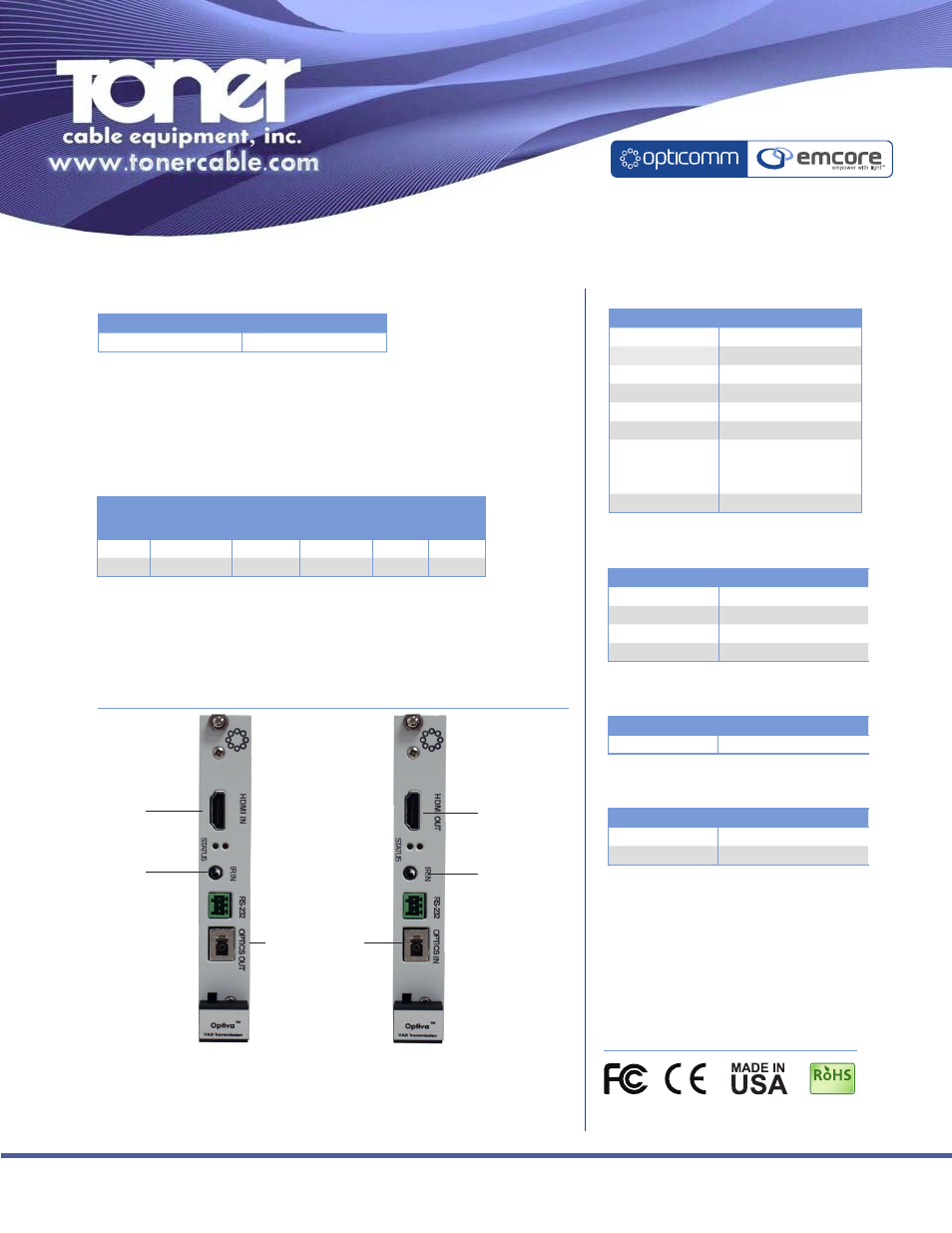

Connection Diagram
General
Specifications Values
Dimensions (Insert Card) 6.3”D x 0.8”W x 4.0”H
Weight 11 oz.
Operating Temperature 0˚ to +50˚C
Storage Temperature 20˚C to +85˚C
Humidity 10 to 90% (non-condensing)
Power Consumption <2W Max.
Monitoring LED on TX & RX
Rapid flash - Boot up
Slow flash - Fiber disconnected
Steady on - Link established
Warranty 3 Years
Compliance (Pending)
Models
Optical Specifications
Fiber Type
“XX”
Wavelength
(nm)
Data Rate
Optical Budget
(db)
Distance
(km)
Connector
MM 850/1310/1550 6.25 Gbps <12 0.3 LC
SM 1490/1550/1310 6.25 Gbps <12 10 LC
DVI Unit Transmitter DVI Unit Receiver
OTX-1HDMI-IR/XMT- XX -LC OTX-1HDMI-IR/RCV- XX -LC
„ When ordering replace “ XX” with one of the Fiber Type Options
„ Chromatic dispersion as well as other losses should also be taken into account
„ Stated distances are the maximum range, shorter distance may require attenuation
„ Standard connection type is UPC
„ Multimode TX must be used with multimode RX and singlemode TX must be used with singlemode RX
Specifications Values
Data Type Serial via IR Connection
Connector Type 2.5mm barrel type (female)
Data
Audio
Specifications Values
Embedded Digital Audio Supported on the HDMI stream
Video
Specifications Values
HDMI Compliance 1.3a
HDCP Compliance v1.2
EDID Plug & Play
Color Depth 24-bit
