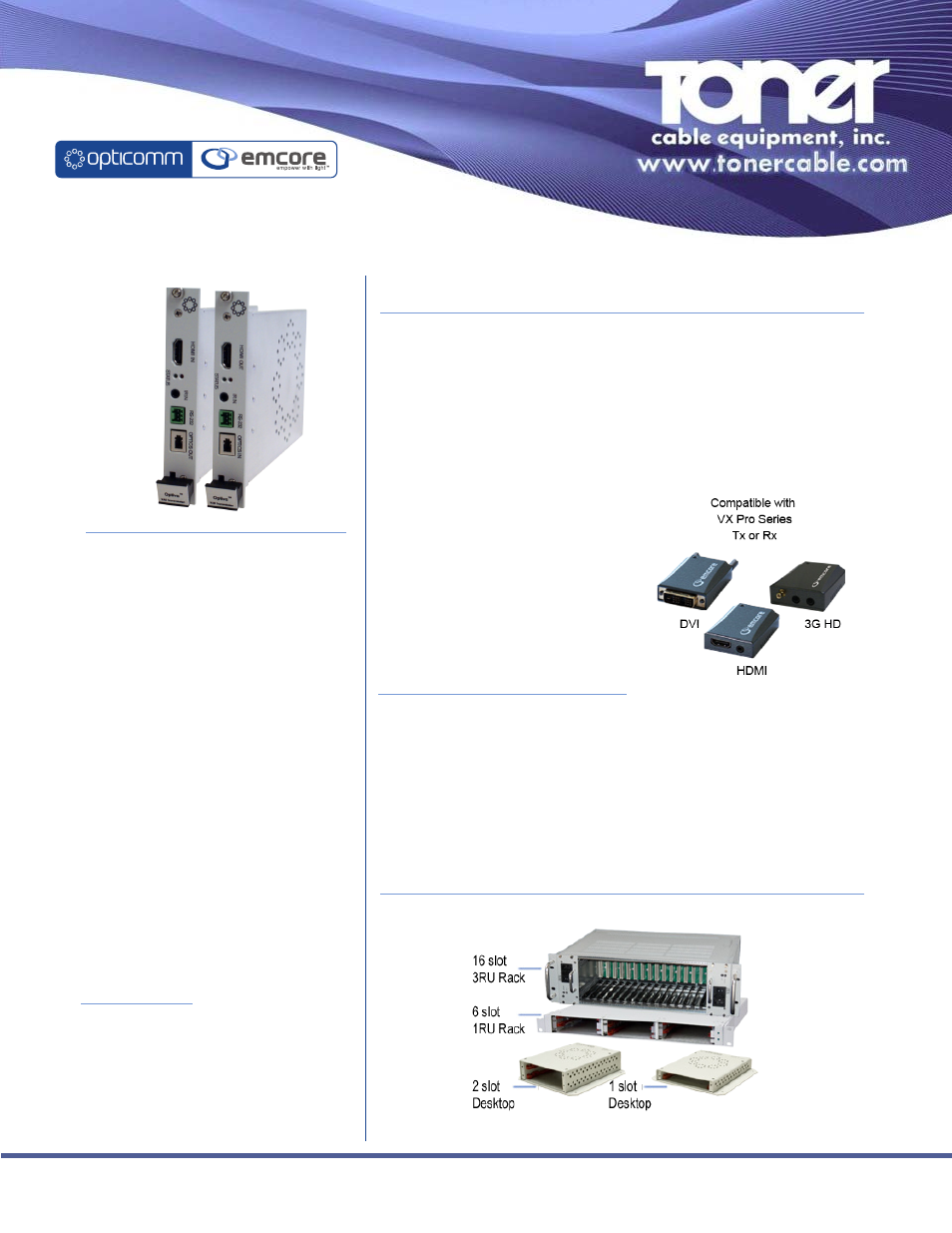

OTX-1HDMI-IR
HDMI with IR Fiber Optic Extender
969 Horsham Road
l
Horsham, Pennsylvania 19044 USA
l
Phone: 215-675-2053 Fax: 215-675-7543
l
Features
Extends HDMI video resolutions up to 1080p
60Hz and graphic resolutions up to 1920x1200
Compatible with VX Pro Series of
Transmitters and Receivers
Fits Optiva enclosures
HDMI 1.3a compliant
HDCP V1.2 compliant
True Plug & Play - Passes HDCP, EDID & CEC.
No EDID Learning Necessary
IR extension via duplex data channel
Diagnostic LED for power and fiber
communication status
Singlemode operation up to 10 km
Multimode operation up 305 meters using OM3
fiber
Uses low profile LC optical connector
Applications
Medical OR Integration / Endoscopy
Airport / Train / Information Displays
Digital Signage / Video Walls
Classrooms
The OTX-1HDMI-IR optical extender is a single fiber DVI extender that can send
1 channel of HDMI and 1 channel of IR serial data up to 10 km, without the
need for distribution amplifiers, cable equalization or in-line repeaters that are
normally associated with copper cable extension.
The extender is an insert card that transports over standard multimode
or singlemode fiber using LC type optical connectors for a secure cable
connection. Graphic resolutions up to 1920x1200 and video resolutions up to
1080p/60Hz are possible over a single fiber.
The OTX-1HDMI-IR Tx and Rx are
compatible with the VX Pro Series of
modular transmitters and receivers,
providing the needed flexibility for
applications requiring both modular insert
cards and stand-alone modules.
No more EDID learning or blanked out screens! Critical EDID information is
read directly from the monitor and passed to the graphics card via the duplex
data channel. The OTX-1HDMI-IR can work on any digital display and provide
resolutions up to 1920x1200. The OTX-1HDMI-IR is also HDCP compliant
allowing the exchange of keys between the source and display. Copyrighted
material can be sent over the fiber link.
Uncompressed HDMI Video & IR Data Over One Optical Fiber
True Plug & Play with HDCP
Enclosure Options
