Ot-dcm-f, Dispersion compensation module, Specifications – Toner Cable OT-DCM-F Dispersion Compensation Module User Manual
Page 2
Specifications Subject To Change Without Notice
Rev 06-11
©Toner Cable Equipment, Inc.
969 Horsham Road
l
Horsham, Pennsylvania 19044 USA
l
Phone: 215-675-2053 Fax: 215-675-7543
l

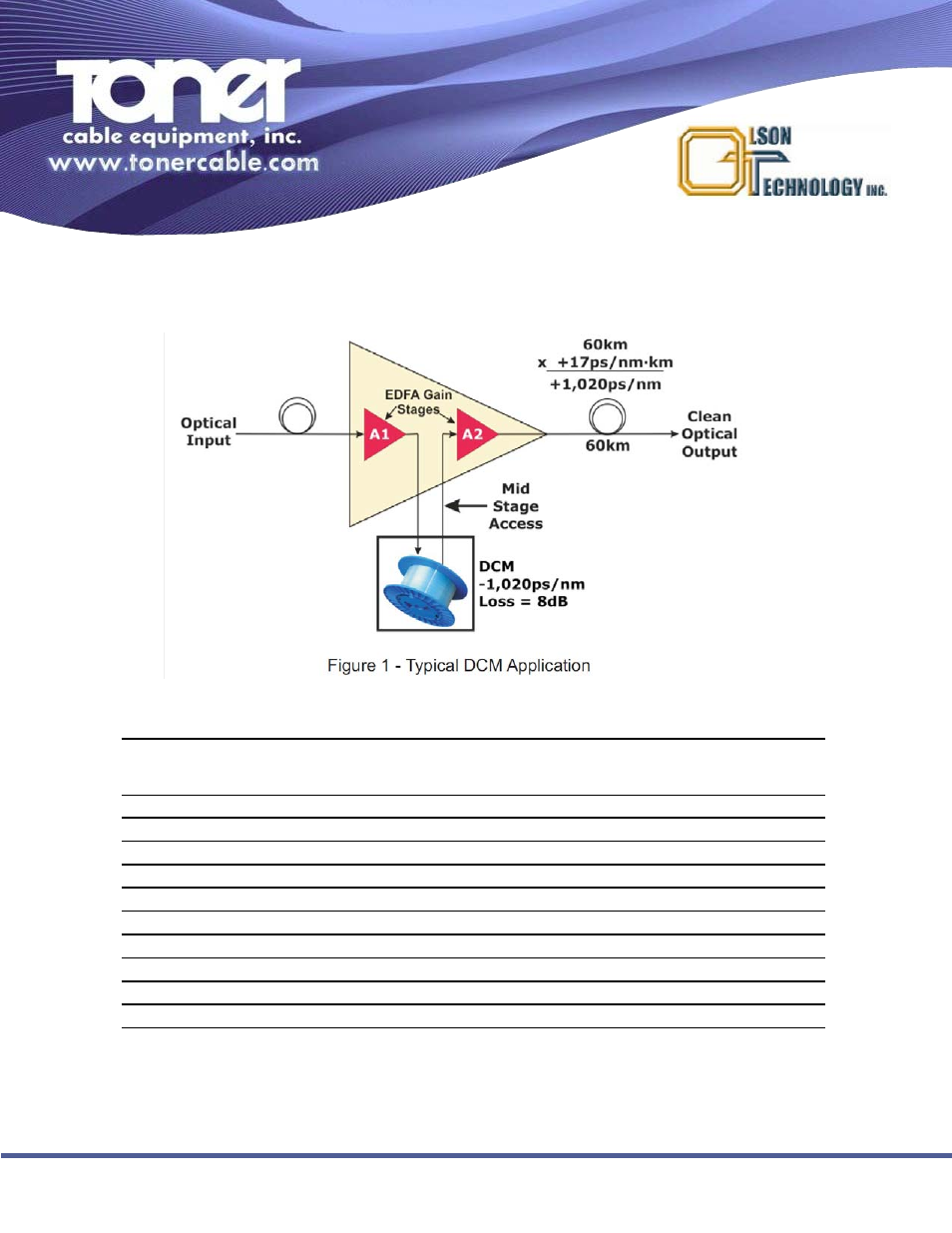

Specifications
OT-DCM-F
Dispersion Compensation Module
Part Numbers and Optical Dispersion Performance
Model
SMF-28 Fiber
Dispersion,
Polarization Typical Insertion Loss
Compensatoin
Typical Value
Dispersion
Insertion Loss
Distance (km)
(ps/nm)
(dB)
(db)
OT-DCM-F10
10
-170
1.2
1.8
OT-DCM-F20
20
-340
1.5
3.6
OT-DCM-F30
30
-510
1.9
4.3
OT-DCM-F40
40
-680
2.2
5.0
OT-DCM-F50
50
-850
2.4
6.0
OT-DCM-F60
60
-1020
2.6
7.0
OT-DCM-F70
70
-1190
2.8
7.7
OT-DCM-F80
80
-1360
3.0
8.5
OT-DCM-F90
90
-1510
3.2
9.2
OT-DCM-F100
100
-1700
3.4
10.0
Note: Each DCM module is designed to compensate for a specific amount of dispersion. For example, the OT-DCM-F10 is
designed to compensate for 10 km of G.652 fiber dispersion, and the OT-DCM-F100 is designed to compensate for
100 km of G.652 fiber dispersion. 'The units can be ordered in 10km increments.
