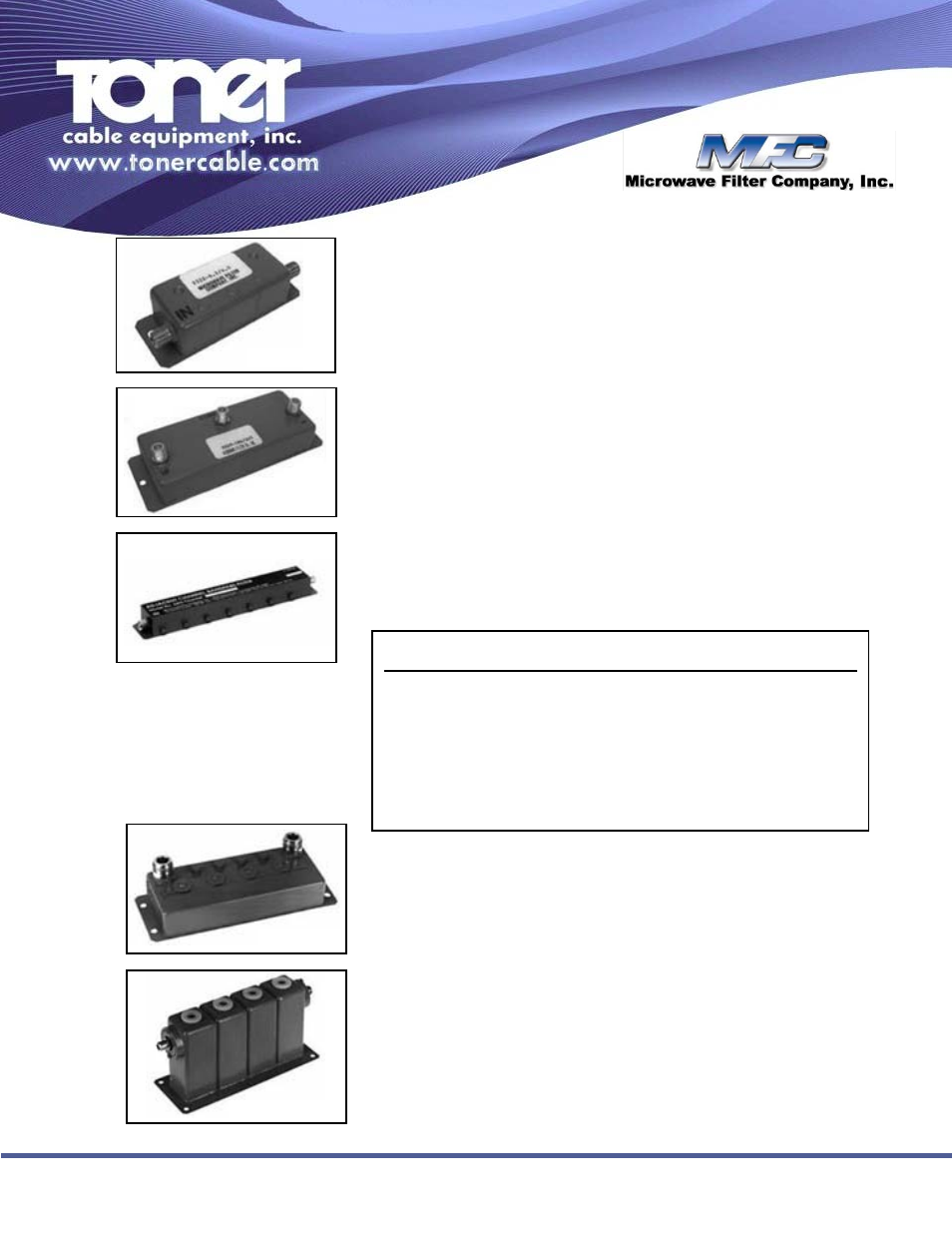

Special Deletion Network
3322 Series Lowpass Filter For Sub-band Channels
The model 3322-W/DD(50) is part of a family of economical low pass fil-
ters intended for headend applications. This unit passes all sub-band
channels through and including channel 36, offering less than 3 dB inser-
tion loss at channel W. It provides greater than 50 dB rejection from
channel DD(40) to 1,000 MHz.
3329 Series Bandsplitters/Combiners
The 3329 Series broadband cable bandsplitters include a model for almost
any CATV or LAN application and reflect a design capability spanning
baseband (4.2 MHz) to UHF (890 MHz). We will gladly quote your specifi-
cations for your special system or application.
Splitters are AC/DC passing on the low band side only.
3303 Series Adjacent Channel Bandpass Filters
These filters suppress adjacent channel and off air interference while
maintaining low insertion loss in the passband. Models are also available
for PAL and SECAM formats.
Mechanical Specifications:
Baseplate Dimensions: 10.25” x 1.50”
Connectors: 75 ohm Type F
3160 Series VHF TV Channel Bandpass Filters
A general purpose, low insertion loss, channel bandpass filter, it sup-
presses interference at the semi-adjacent channel and beyond. Its appli-
cations include processor clean-up before combining or filtering off air
receptions.
4930 & 3278 Series UHF TV Channel Bandpass Filters
These bandpass filters can be used to clean up the desired channel at
the input of the processor or at the output before combining. The model
4930 has a center frequency option of 300-450 MHz and the model
3278(4)-(Ch.#) HYP has a center frequency option of 450-750 MHz.
Model 3303 Video-Aural Adjacent Carrier
Channels Insertion Loss (max.) Rejection (min.)
2 to 6 3.0 dB 25 dB
A-5 to A-3 4.0 dB 25 dB
A-2 to I 4.0 dB 25 dB
7 to 13 5.5 dB 25 dB
J to W 5.0 dB 17 dB
Return Loss: 14 dB min.
Model 3322
Model 3329
Model 3303
Model 3160
Model 4930 & 3278-4
