Special Deletion Network
969 Horsham Road l Horsham, Pennsylvania 19044 USA l Phone: 215-675-2053 Fax: 215-675-7543 l [email protected]
7964 (Contiguous) Series
Filter networks for suppressing an arbitrary number of contiguous
channels are supplied to order. For only a few channels, a series
connection of individual channel deletion filters is used. For a
large number of contiguous channels, a special network is used.
Its components consist of a “Brickwall” lowpass and highpass fil-
ter and a pair of specially designed bandsplitters. For an interme-
diate number of contiguous channels, two single channel deletion
filters establish the “Brickwall” ends while a less selective net-
work deletes the middle of the specified stopband.
Specifications:
Due to the custom nature of these products, specifications must
be quoted.
Mechanical Specifications:
Baseplate dimensions: varies based on frequencies.
Connectors: 75 ohm - Type “F”
Other impedances and connectors can be supplied to order.
The “Fastrap” Series Negative Trapping
For Channel Security
The “Fastrap” (Fast Delivery) series includes negative traps for
channels 2 to 59, U.S. standard channels, HRC, invert or offset.
Traps are also available for European channels.
“Fastrap” Varieties:
•
Negative Traps
•
Band Suppression Filters For Trapping Multiple
Contiguous Channels
•
Lowpass and Highpass Tiering Filters
•
Special Subscriber Multichannel Networks
•
Positive Traps
3367 Series Multichannel Notch Filters
These filters suppress wide, contiguous bands within the VHF
spectrum. They suppress several channels to block viewing or
for insertion of new programming where a guardband is allowed.
These units are AC/DC passing.

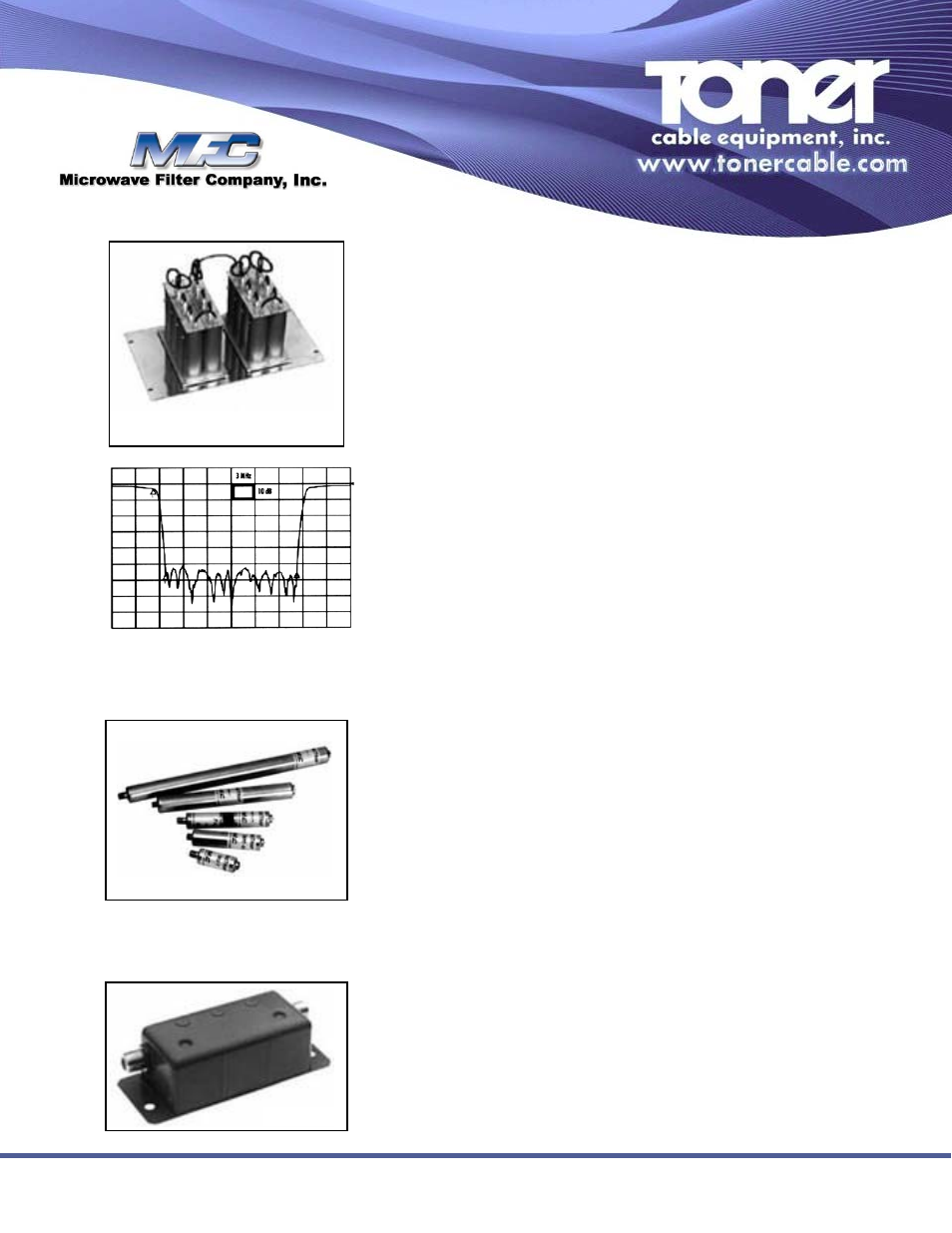

Response of 3 channel 7964
Model 7964
Model 3367
“Fasttrap” Series
