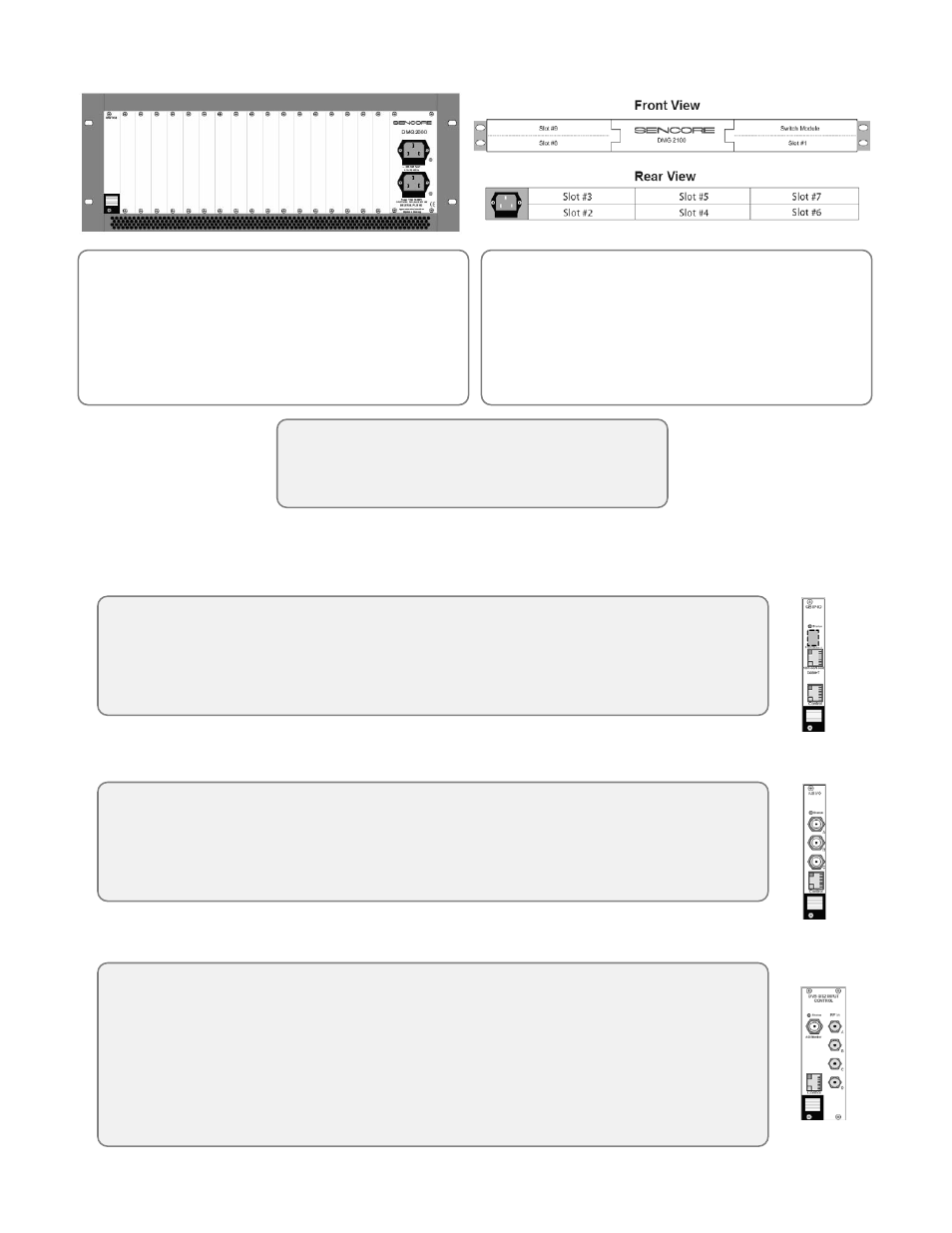

DMG 3000 Chassis (4RU)

MC/CAB4PS-04

• Modular Configuration with up to 16+2 board positions
• WEB based configuration, SNMP Alarms, SOAP/XML

interface

• Forced air-cooling
• Hot-Swappable modules
• Dual redundant hot-swappable 300 W power supply
• 4 individually monitored hot-swappable fans

DMG 3100 Chassis (1RU)

MC/CAB1PSSW

• Modular configuration with up to 9+1 board positions
• WEB based configuration, SNMP Alarms, SOAP/XML

interface

• Forced air-cooling
• Hot-swappable modules in back
• Optional IP IO and descramblers in front
• Switch module included

• 10/100/1000BaseT input card (RJ45)

• Mini-GBIC interface (SFP) for optical input
• Supports UDP/RTP Multicast/Unicast reception
• Supports reception of MPTS and SPTS
• Up to 850 MBit/s
• Service filtering

• PCR regeneration
• 10/100/1000BaseT management port (RJ45)
• Enables WEB management
• 1 slot wide

• 3xASI input

• BNC connectors
• 213 Mbit/s per input
• Supports reception of MPTS and SPTS
• Service filtering
• 10/100/1000BaseT management port (RJ45)

• Enables WEB management
• 1 slot wide

Switch Module (supplied with chassis)

MC/SWM

• One needed per chassis in position 1
• Gbits/s routing between modules in a chassis
• Integrated from the front

• 4xDVB-S/S2 inputs

• F connectors
• DVB-S, DVB-S2 QPSK and 8PSK modes
• 950 – 2150 MHz Frequency Range
• -25 to -70 dBm input level
• 1-45 MSym/s (mode dependent)
• LDPC and BCH decoding
• 1/2, 2/3, 3/4, 5/6, 7/8, 8/9, 9/10 FEC (mode

dependent)

• Normal DVB-S2 FEC frames

• Supports reception of MPTS and SPTS
• LNB Voltage: 0/13/18 Volt
• 400 mA maximum LNB supply current
• LNB Voltage +22 kHz continuous tone LNB sig-
naling
• Service filtering
• ASI monitoring port
• 10/100/1000BaseT management port (RJ45)
• Enables WEB management
• 2 slots wide

DVB-S/S2 Input (EN300 421, EN 302 307)

*MC/4DVBS-MMI | *MC/4DVBSS2-MMI

Ethernet Input w/ Management

*MC/GBIPIN-MMI

ASI Input w/ Management

*MC/3ASI-MMI

DMG 3000 / 3100 Digital Cable System, Multiplexer Solution

INPUT MODULES
