PS8 Power Supply
DRMM12 Rack Enclosure

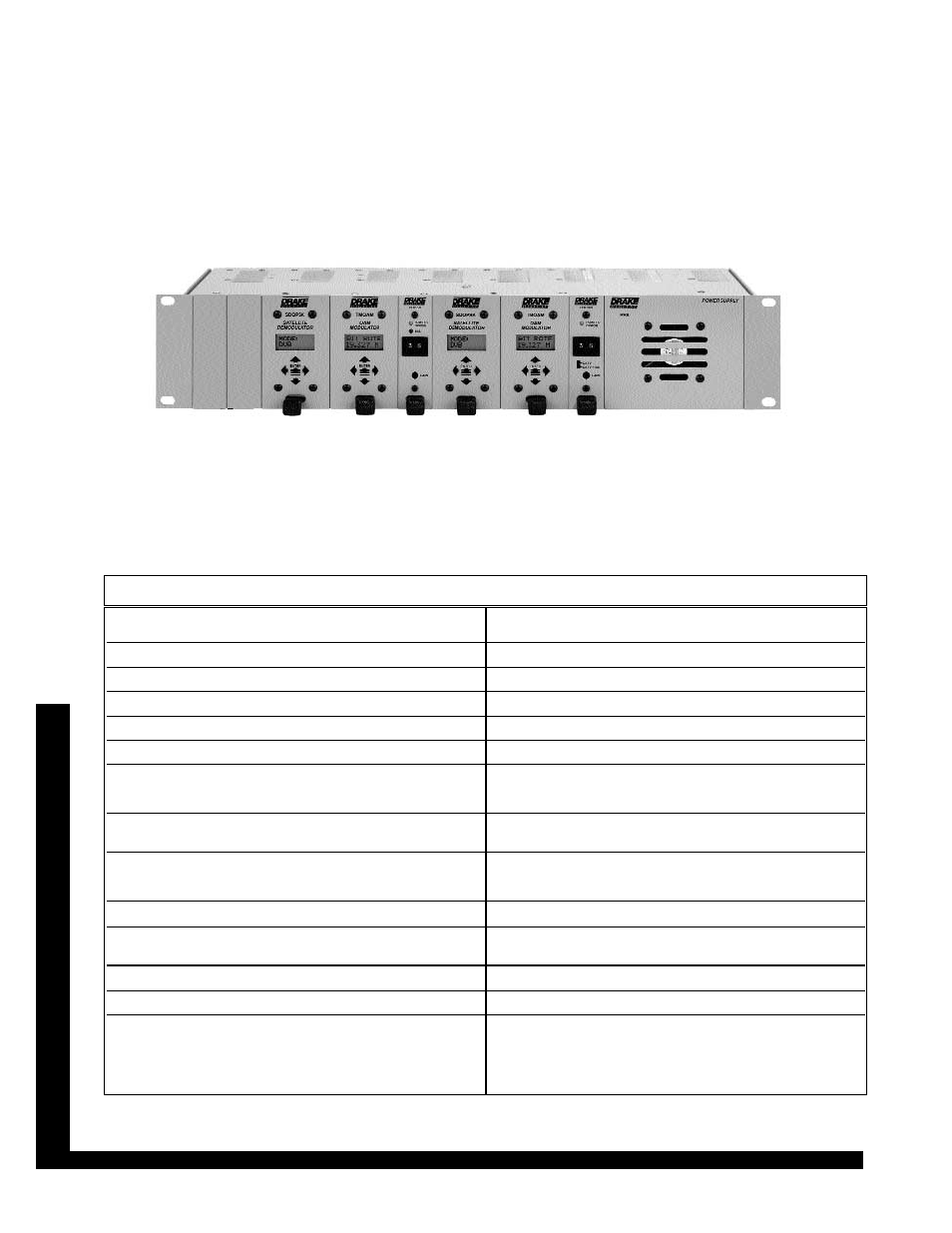

Power for an entire rack of Drake Digital modules is provided by the PS8 power supply.
In addition to the PS8 power supply, up to 12 Drake Digital modules may be
accommodated by the DRMM12 rack enclosure. The completed assembly occupies
two rack units high in a standard 19 inch rack.
The PS8 Power Supply supplies the +5 VDC & +12 VDC required by the Digital
Modules. Using appropriate adapters, the PS8 will also power other DRAKE analog
Mini-rack System modules sharing the same rack. These include a demod, both fixed
and agile modulators as well as audio and video switching modules.
GENERAL
Power Requirements:
100-240 VAC ±10%.
Input Frequency:
50-60 Hz.
AC Input Power:
80 Watts.
Operating Temperature Range:
0 to +50°C.
Internally Mounted (50mm) Axial Fan:
12 CFM (ft.
3
/min.).
Output Voltages:
+5 VDC @ 4.75 Amps maximum.
+12 VDC @ 3.0 Amps maximum.
MECHANICAL
Dimensions:
4.2'' W x 3.5'' H x 9.4'' D
(10.7 cm W x 8.9 cm H x 23.9 cm D).
Weight:
2.6 lbs. (1.2 Kg.).
CONNECTORS
AC Input:
IEC., 6ft. USA AC power cord supplied.
DC Output:
Mini-Fit JR. x 8.
Fuse (Internal, AC Input):
2A, 250 V SLO-BLO, 5 x 20 mm.
Power supply assembly employs short circuit
and over-voltage protection.
PS8 TECHNICAL SPECIFICATIONS
