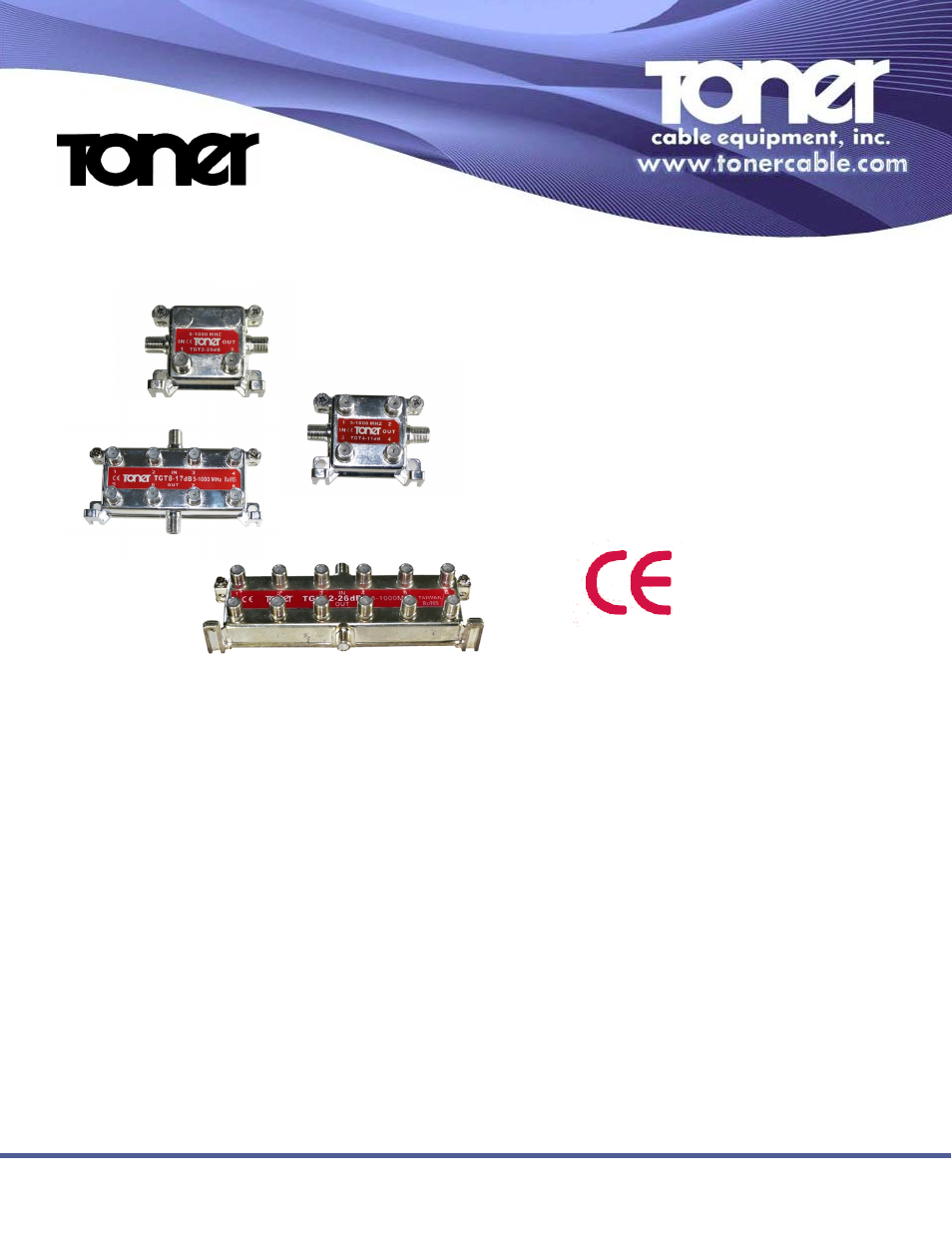

TGT Series
2, 4, 8 & 12 Port 1 GHz Taps
Features:
• 5 to 1000 MHz Bandwidth
• RFI greater than -100 dB
• 75
Ω Impedance
• Port to Port Isolation 23 dB minimum
• Return Loss 20 dB typical, 18 dB minimum
These multiport, indoor/outdoor directional coupled taps are the most recent state
of the art design, and feature our patented circuit design and surface mount tech-
nology. These taps feature our unique dual tongue and groove cover installation to
maintain better than -100 dB RFI integrity which minimizes or eliminates RF ingress
or leakage. The housings are then further epoxy sealed to prevent any moisture
absorption. The housings are zinc diecast with Tin Nickel plating for superior corro-
sion protection.
Available in 2, 4, and 8 port configurations with standard 3 dB tap value spacing for
optimum system design. The 2 and 4 port models both use a small 1 3 /
4
'' x 1 3 /
4
''
housing and the 8 port model uses a 1 3 /
4
'' x 3 7 /
8
'' housing. These small sizes allow
the taps to be installed in the tightest of locations. Each housing incorporates inte-
gral mounting slots and ground blocks for convenience. The taps have “F” ports for
input and output, as well as for the tap ports. Tap ports are on 7 /
8
'' centers to allow
for trap and filter installation.
