AQD

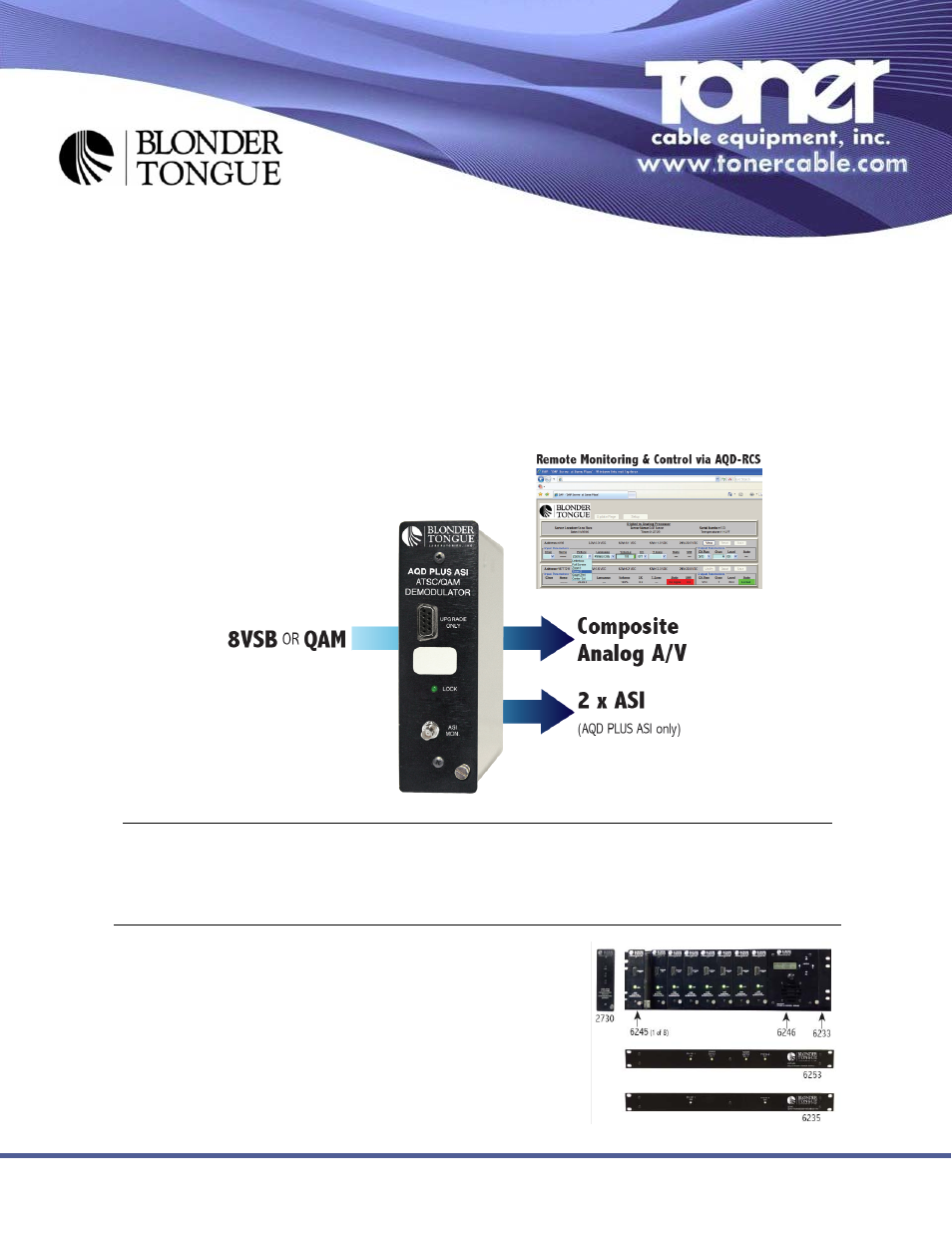

ATSC/QAM Demodulator 1x 8VSB/QAM ► 1x AV/2x ASI
969 Horsham Road l Horsham, Pennsylvania 19044 USA l Phone: 215-675-2053 Fax: 215-675-7543 l [email protected]
AQD (ATSC/QAM Demodulator) accepts one input in 8VSB (digital off-air) or QAM (digital cable) format, and delivers
one output in NTSC composite analog Audio/Video format, and two identical outputs in ASI format.
AQD allows delivering of a digital off-air program to viewers with an analog TV set. It also allows an operator to cher-
ry-pick channels from a “clear” QAM cable lineup.
AQD PLUS is the same as AQD, but includes the AFD broadcast package. AFD (Active Format Description) is a stan-
dard set of codes embedded in the video stream and used by digital television broadcasters to optimally display a
16:9 video format on an analog television set designed for 4:3 video format.
Features
• Input standards supported are digital off-air (8VSB) and digital cable (QAM 64 and 256)
• NTSC Composite Analog Audio/Video output is in 480i format and supports Closed Captioning (EIA-608)
• Optional AQD-RCS module allows remote monitoring and configuration of up to 80 AQD modules
• Optional AQD-SPS unit provides standby utility power to the primary power supply (AQD Power & Control module)
Ordering Information
Model Stock # Description
AQD 6245 ATSC/QAM Demodulator
AQD PLUS 6244 AQD with AFD Broadcast Package
AQD PLUS ASI 6244-10 AQD PLUS with 2xASI outputs
AQD-PCM 6246 AQD Power & Control Module
QTRC 6233 QAM Transcoder Rack Chassis
Options
AQD-RCS
2730 AQD Remote Configuration Server Module
AQD/AQT-SPS 6253 AQD/AQT Standby Power Supply
QTHF 6235 QT Headend Fan
