HDE-M4-1-RM
Video & Audio IP Encoder
Model Description
HDE-M4-1-RM MPEG-4 (H.264/AVC) Video/Audio Encoder, 1RU Rackmount
Models Inputs
Specifications Values
Video HDMI(1080i HDCP), HD/SD-SDI, YPbPr, CVBS
Audio SPDIF, RCA, SDI embedded audio
Video Encoding
Specifications Values
Compression MPEG-4/H.264 AVC High Profile @ Level 4.0
Resolutions 1920 x 1080i @ 60/50 Hz
1440 x 1080i @ 60/50 Hz
1280 x 720p @ 60/50 Hz
720 x 576i @ 50 Hz
720 x 480p @ 60 Hz
Bit Rate SD (2 to 20 Mbps), HD (6 to 20 Mbps)
SD Format NTSC, PAL, SECAM
Broadcast Type Unicast & multicast
Audio Encoding
Specifications Values
Compression MPEG-1 Layer II
Supporting stereo audio
Sampling 48 KHz
Channels 2 analog (mono or stereo) / 1 SPDIF
Outputs
Specifications Values
DVB-ASI 2 ports, BNC connector
TCP/IP TS/IP 100/1000 Ethernet, RJ-45 connector
Monitoring & Control
Specifications Values
Front Panel Keyboard, LCD display, Status LED’s
Remote TCP/IP, Network management software for
full control & system diagnostics
General
Specifications Values
Input Power 90~250 VAC, 50/60 Hz
Power Consumption 30 Watts (max)
Weight 11lbs (5kg)
Dimensions 1.73” (1RU) H x 19” W x 10.79” D
(44mm x 484mm x 274mm)
Operating Temperature 32 - 113° F (0 - 45° C)
Operating Humidity 10% - 80% Relative Humidity
Storage Temperature 23 - 122° F (-5 to 50° C)
Storage Humidity 0% - 90% (non-condensing)

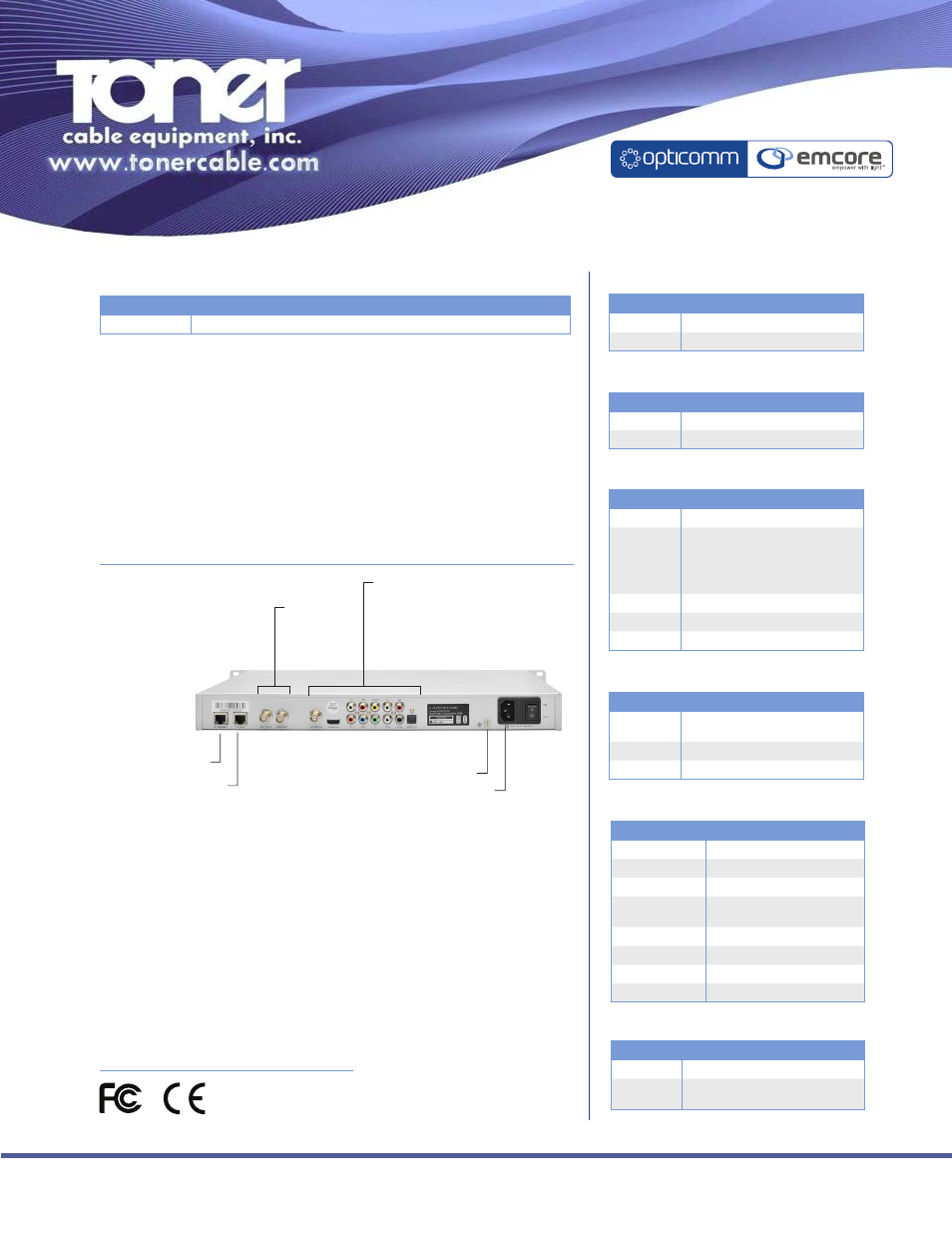

Connection Diagram
Compliance
Power Input
Video/Stereo Audio Inputs
10/100 Ethernet Port
ASI Outputs
External Ground
TS/IP Ethernet Port
