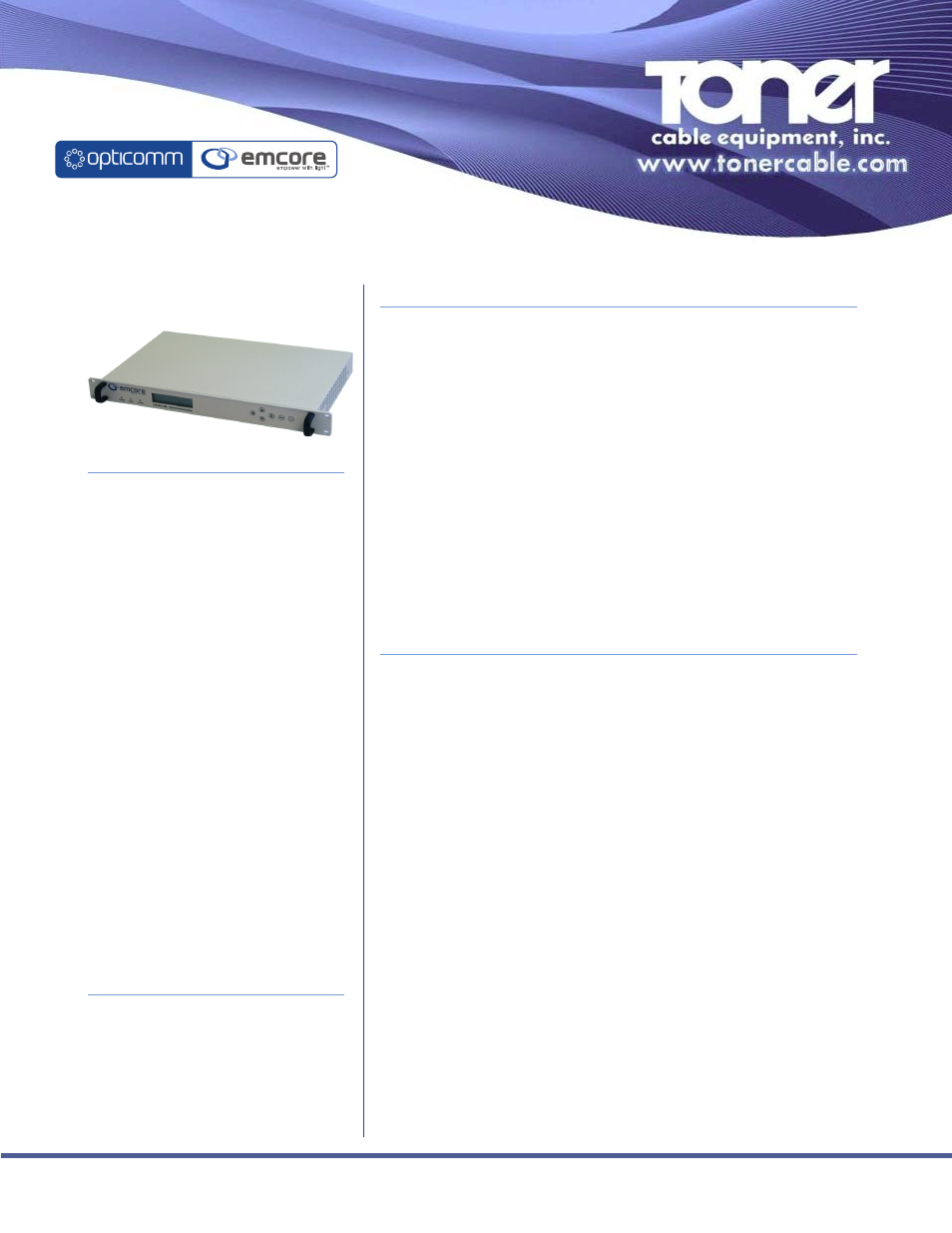

Toner Cable HDE-M4-1-RM Video & Audio IP Encoder User Manual
Hd(-m4-1-rm, Video & audio ip (qcoder

HD(-M4-1-RM
Video & Audio IP (Qcoder
969 Horsham Road
l
Horsham, Pennsylvania 19044 USA
l
Phone: 215-675-2053 Fax: 215-675-7543
l
Features
Compliant with MPEG-4 / H.264-AVC standard
MPEG 1 layer-II audio encoding
NTSC/PAL SD video format
SMPTE-296/SMPTE-274 HD video format
TS/IP Unicast and multicast output
HDMI, HD/ SD-SDI, YPbPr, CVBS inputs
Digital SPDIF audio input
Dolby AC-3 audio encoding (optional)
Supports multiplexing of MPEG-4 video & audio
compressed data streams with DVB packing
Supports SD or HD TS stream output with cor-
responding definition of input signal
SI related editing table
IP output compliant with UDP/RDP protocol
Configuration and monitoring through front
panel or SNMP network manager.
Applications
IPTV Broadcast Systems
HDTV Headend Conversion
MDU Video Distribution
Digital Signage & Kiosk Displays
Emcore’s HDE-M4-1-RM is EMCORE’s advanced high-performance MPEG-4 /
H.264 encoder. It is capable of converting high definition video with audio onto
CATV or IPTV networks.
The HDE-M4-1-RM supports input formats such as HDMI, HD-SDI, SDI,
YPbPr, CVBS, SPDIF and analog audio. Algorithm and compression efficiency
improvements deliver crisp and vibrant video and audio at extremely low bit
rates. Multicasting along with an adjustable bit rate are just a couple of the
features that allow delivery of more HD/SD video and audio channels in the
available bandwidth.
The user-friendly HDE-M4-1-RM encoder is an ideal solution for signal
conversion and distribution over IP for the most demanding broadcast or IPTV
applications.
System Design
Enclosed in a ruggedized aluminum housing, the HDE-M4-1-RM is perfectly
suited towards applications that are space contrained and require equipment
with lower power consumption and heat output. The front faceplate has
push-button controls for configuration as well as status LED’s. SNMP network
management support allows remote interfacing for control and system
diagnostics.
High-Definition MPEG 4 (H.264 AVC) Video / Audio Encoding
