Toner Cable TXS3453 MPEG2 Transcoder User Manual
Txs 3453, Transcoder

TXS 3453
Transcoder
969 Horsham Road
l
Horsham, Pennsylvania 19044 USA
l
Phone: 215-675-2053 Fax: 215-675-7543
l

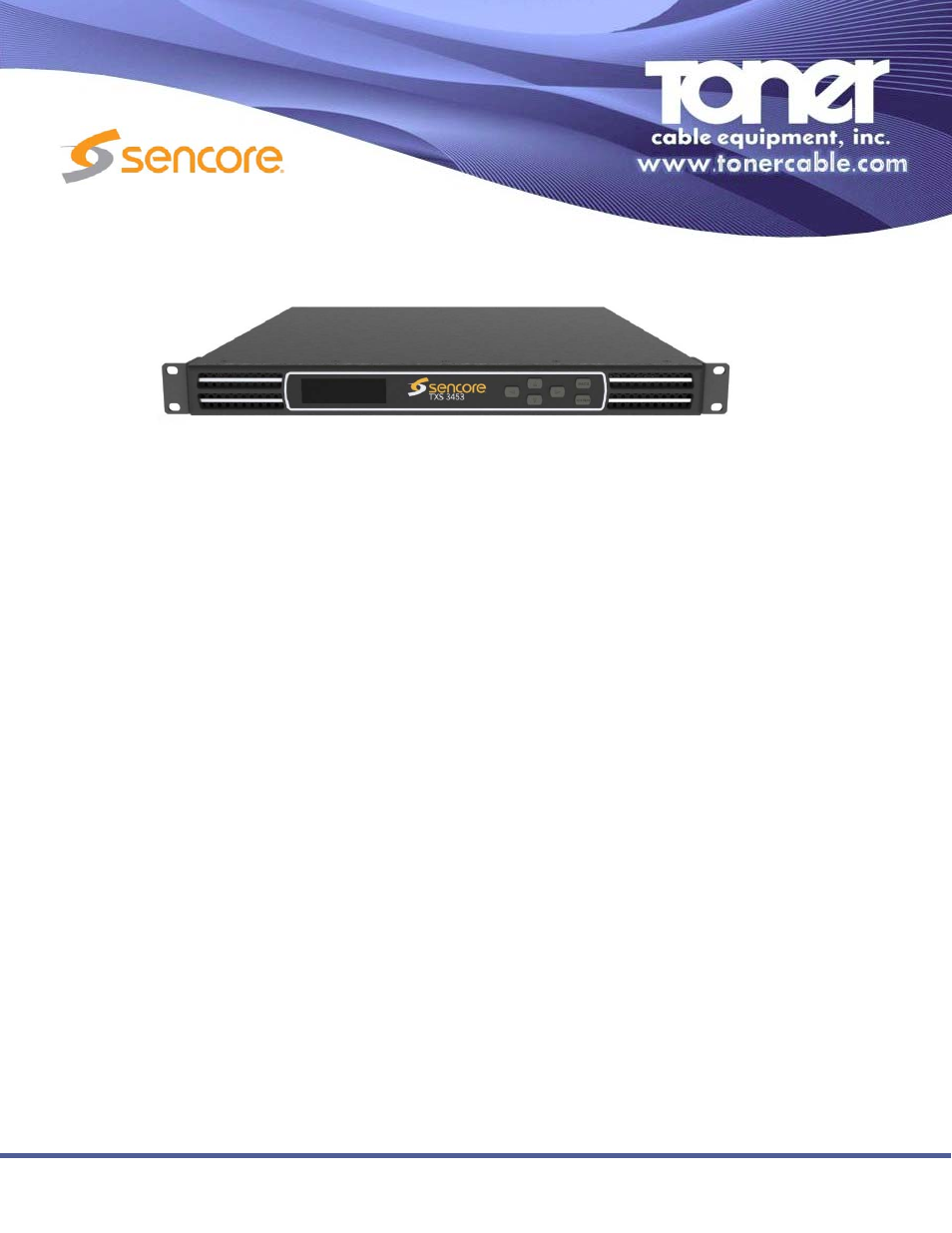

The TXS 3453 Transcoder is the newest processing
platform in Sencore’s Media Delivery Solution portfo-
lio. The TXS 3453 is capable of transcoding up to 16
HD channels of:
• MPEG2 video
• H.264
• H.264 video to MPEG2
This transcoding platform is available in both a Gold
and Platinum model. The Gold version is capable of
high-quality transcoding with density capabilities of up
to 16 programs in a single rack unit. The Platinum ver-
sion is capable of very high quality transcoding at
state-of-the-art bitrates at density capabilities of up to
8 programs in a single rack unit. Both Gold and
Platinum units have ASI and IP I/O standard with
optional Terrestrial and Satellite RF inputs.
The TXS 3453 provides quality, density and price in a
single chassis. With the flexibility of inputs and outputs
this box can fit into many applications. This chassis
eliminates the prior need for multiple racks of equip-
ment while saving power.
Key Features
• 40% higher compression allowing for lower bitrates
• Transcoding/transmitting for up to 16 HD/SD
Channels of:
MPEG2 to H.264
H.264 to MPEG2
MPEG2 to MPEG2
H.264 to H.264
• Inputs: ASI, IP, 8-VSB, & DVB-S2
• Outputs: IP & ASI
• Secondary video output (PIP)
• Redundant Load-Sharing Power Supplies
• Easy-to-Control Web Interface
• SNMP full control and Alarm Monitoring
Applications
• Contribution Reception and Backhaul
Receive network and live feeds via RF, ASI or IP,
and simultaneously transcode to the needed codec
for distribution
•
HD to SD Downconversion
Convert any HD broadcasts to SD to support exist-
ing infrastructure
•
Local Reception and Integration for Distribution
Receive local content off-air or through IP feeds
and simultaneously provide transcoded video for
the distribution network
