VX-1HDMI-IR
HDMI with IR Fiber Optic Extender
Compliance (pending)
Ordering Information

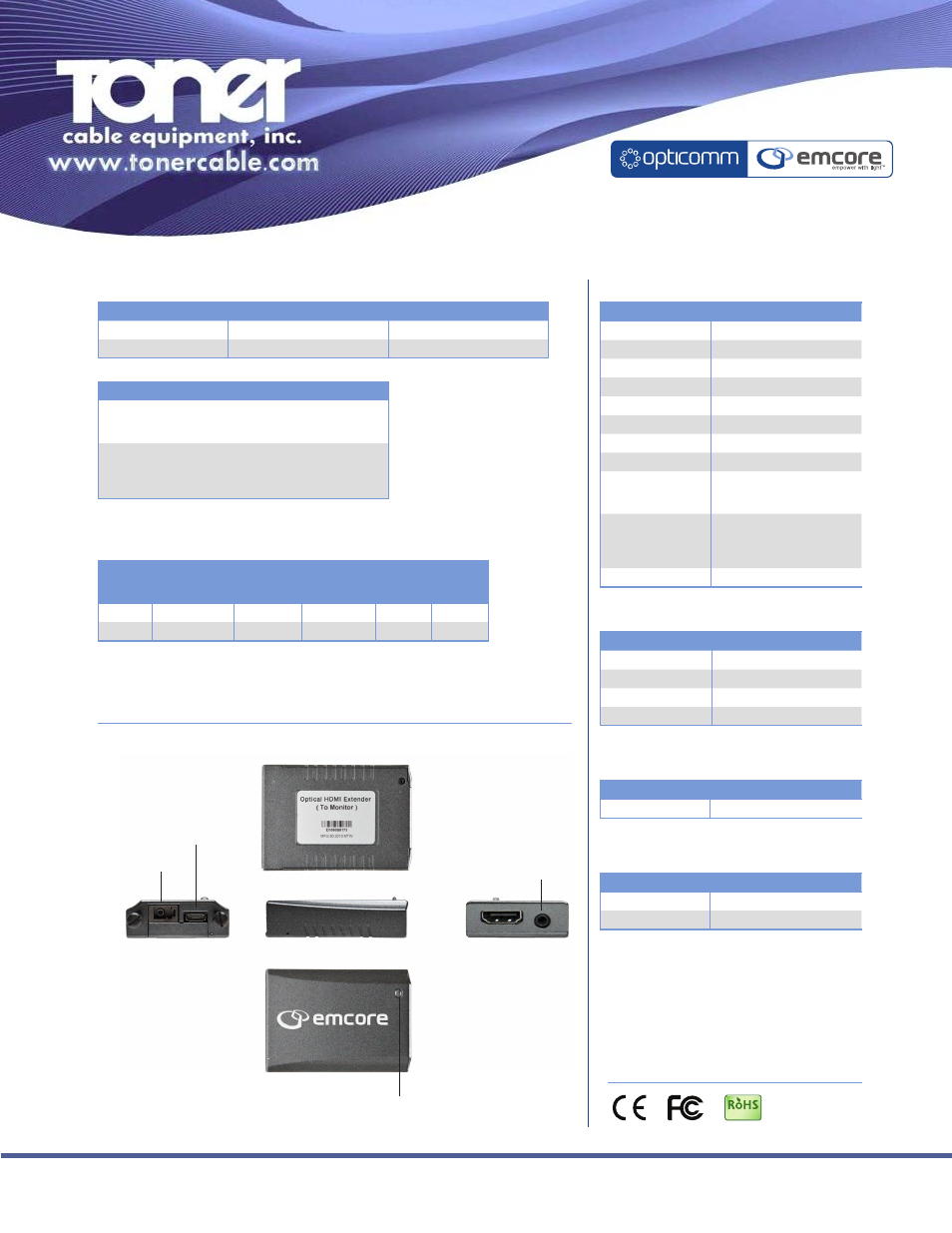

Connection Diagram
LC fiber connection
Mini USB power connection
VX-1HDMI-IR
IR connection
Power / signal indicator
Specifications Values
Data Type Serial via IR Connection
Connector Type 2.5mm barrel type (female)
Data
Audio
Specifications Values
Embedded Digital Audio Supported on the HDMI stream
General
Specifications Values
Dimensions 1.58” x 2.21” x 0.57”
Weight 3.12 oz.
Operating Temperature 0˚C to +50˚C
Storage Temperature 20°C to 85°C
Humidity 10 to 95% (non-condensing)
Input Voltage 1.8V DC
Power Consumption 1.0W Max.
Power Connector Mini USB
Power Supply Not required if the video source or
the display can provide +5V 500ma
on DVI pin 14
Monitoring LED on - Tx & Rx
Rapid flash - Boot up
Gradual on/off - Fiber disconnect
Steady on - Link established
Warranty 1 Year
Video
Specifications Values
HDMI Compliance 1.3a
HDCP Compliance v1.2
EDID Plug & Play
Color Depth 24-bit
DVI Unit Transmitter DVI Unit Receiver DVI Unit Transmitter/Receiver Set
VX-1HDMI-IR/XMT- XX -LC VX-1HDMI-IR/RCV- XX -LC VX-1HDMI-IR/LINK- XX -LC
VX-1HDMI-IR/XMT- XX -LC-UN VX-1HDMI-IR/RCV- XX -LC-UN VX-1HDMI-IR/LINK- XX -LC-UN
„ When ordering replace “ XX” with one of
the Fiber Type Options
„ UN = With universal power supply
„ Chromatic dispersion as well as other
losses should also be taken into account
„ Stated distances are the maximum range,
shorter distance may require attenuation
„ Standard connection type is UPC
„ Multimode TX must be used with
multimode RX and singlemode TX must
be used with singlemode RX
Included For DVI Unit
PC-USB-MUSB
Power Cord for USB to Mini USB [P/N G0220-161]
PS-501 (with -UN model)
Universal 100-240VAC power supply and EU, USA, UK, AUS kit
[P/N G0220-160]
Fiber Type
“XX”
Wavelength
(nm)
Data Rate
Optical Budget
(db)
Distance
(km)
Connector
MM 850/1310/1550 6.25 Gbps <12 0.3 LC
SM 1490/1550/1310 6.25 Gbps <12 10 LC
