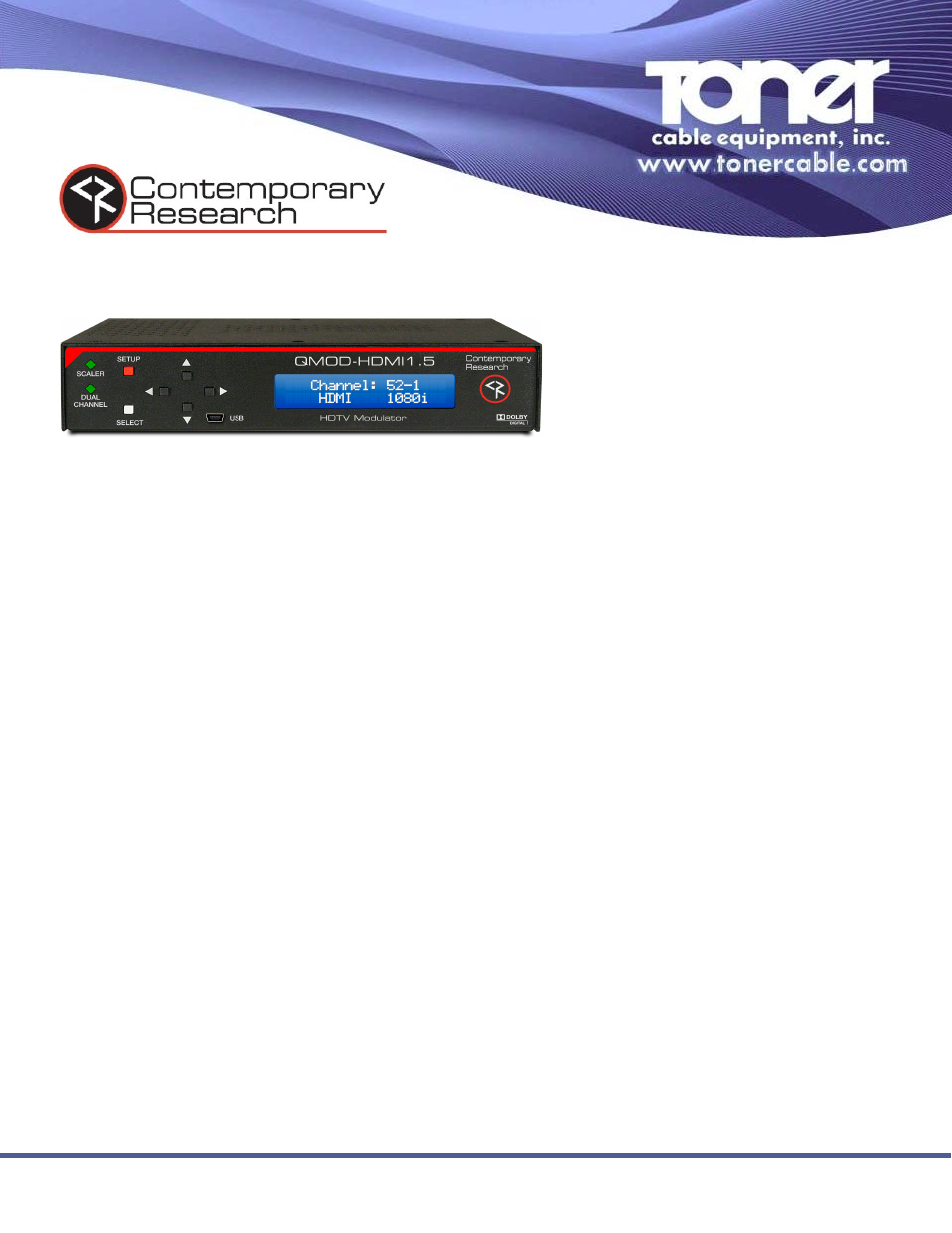

QMOD-HDMI 1.5 HDTV Modulator
Sources
One HDMI (non-HDCP) input, up to 1080p video and audio
One RGBHV/Component input, up to 1080p video
Two Composite video inputs for encoding, captioning, or EAS use
Two sets of stereo and SPIDF coax audio inputs
Encoding
Creates a high-definition 720p/1080i MPEG-2 stream for broadcast
Accepts stereo, PCM, or pass-through AC-3 audio, can create two MTS
sub-channels for each input, supporting two languages each
Includes captioning from Line 21 data on composite video inputs
Flex encoding downscales 1080p to 1080i, allows use of 720p/1080p 60Hz
sources, and compensates for 60/30 Hz sources such as consumer HD
cameras
Scaling upgrade adds scaling for many VGA resolutions, overscan
compensation, and positioning
2-channel upgrade allows selection of inputs to create
2 HD channels
Output
Delivers a fully agile QAM 64/256 digital cable channel 2-135
Up to 270 HD Programs/Channels per system
Streams IPTV from GigE Ethernet port
Distributes channel over an on-site broadband cable system with
adjustable output level to 29 dBmV, compatible with all cable format
broadband systems
Operation
Sets up with front-panel buttons and easy to use menus, including inputs,
encoding, channel, and RF options.
Onboard Web page for setup and monitoring
Control with IP Telnet commands
Saves power and rack space using efficient design
Includes compact switching power supply
Mounts in optional 1RU single (RK1) or dual (RK2EZ) 19” rack kits
Meets RoHS safety and California energy standards
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Employing a totally new HD encoding
technology, the QMOD-HDMI1.5 continues
the QMOD
TM
track record for quality and
innovation, setting a new benchmark for
features and performance. Users can
upgrade operation for digital signage
scaling and dual-channel operation by
entering optional upgrade key codes.
Applications
Digital Signage
HD/SD Cable Receivers
HD/SD Satellite Receivers
HD/SD Media Sources
