Optical and V/A Characteristics
Tx Optical Output Power
0 to +3 dBm
Rx Optical Input Power -20 dBm
Operating Wavelengths 1310 nm
1550 nm
CWDM, DWDM
Optical Loss Range 0 to 20 dB
Line Data Rate (All modules) 2.485 Gb/s
RS-232C Data Rate 115,200 b/s
RS-422/485 Data Rate 460,800 b/s
Ethernet Data Rates 10 Mb/s
100 Mb/s
Analog Video Bandwidth 8 MHz
Analog Video I/O Levels 1.0 Volts p-p
Analog Video SNR 67 dB
Analog Video I/O Impedance 75 Ohms
Analog Audio Frequency Response 20 Hz to 20 kHz
Analog Audio SNR
90 dB
Analog Audio THD 0.8 %
Analog I/O Impedance 600 Ohms
(user selectable; balanced or unbalanced) 10 k Ohms
SDI Digital Data Rate 270 Mb/s
DVB-ASI Digital Data Rate 19.4 to 213 Mb/s
DVB-ASI Clock Speed 270 MHz
SMPTE 310M Digital Data Rate 19.4 Mb/s
SMPTE 310M I/0 Amplitude 800 mV p-p
Electrical Characteristics
Power Supply Voltage
85-264 VAC
Power Supply Frequency 50 to 60 Hz
Rated Fuse Current 1.0 A
Environmental Characteristics
Operating Temperature Range
+10 to +40°C
Storage Temperature Range -20 to +50°C
Humidity 5 to 90 %
5RU Optical Standard SNMP
Chassis Power Supply Power Supply
4762-5RU 4762P-STD-XX* 4762P-SNMP-XX*
Blank Panel, 1RU Blank Panel, 1RU
for Unused Module Slot for Unused Power Supply Slot
4762-BLANK-M 4762-BLANK-P
1310 NM 1550 NM CWDM DWDM
4762X-1310-SC 1 4762X-1550-SC 1 4762XC-XXXX-SC 1,2 4762XD-ITUXX-SC 1,2
4762X-1310-SA 1 4762X-1550-SA 1 4762XC-XXXX-SA 1,2 4762XD-ITUXX-SA 1,2
Transmitter Receiver
Single Channel SDI 4762T-SDI-1CH 4762R-SDI-1CH
Single Channel ASI 4762T-ASI-1CH 4762R-ASI-1CH
3 Channel ASI 4762T-ASI-3CH 4762R-ASI-3CH
Single Channel 4762T-ANA-1C-6A 4762R-ANA-1C-6A
Analog Video/Audio
Dual Channel 4762T-ANA-2C-6A 4762R-ANA-2C-6A
Analog Video/Audio
310 to ASI Converter 4762T-310-ASI 4762R-ASI-1CH
310 to ASI Converter with 4762T-310-ASI-L 4762R-ASI-1CH
Monitor Ouptut
Dual Channel SMPTE 310M 4762T-310-2CH 4762R-310-2CH
Six Channel SMPTE 310M 4762T-310-6CH 4762R-310-6CH
12 Channel Audio 4762T-AUD-12CH 4762R-AUD-12CH
Transceiver
Ehternet 4762X-IP-10/100
Ds3 4762X-DS3-3T3R
Model 4762 Specifications and Ordering Information
Video/Audio Modules P/N
Optical Modules P/N
Optical Chassis and P.S. P/N

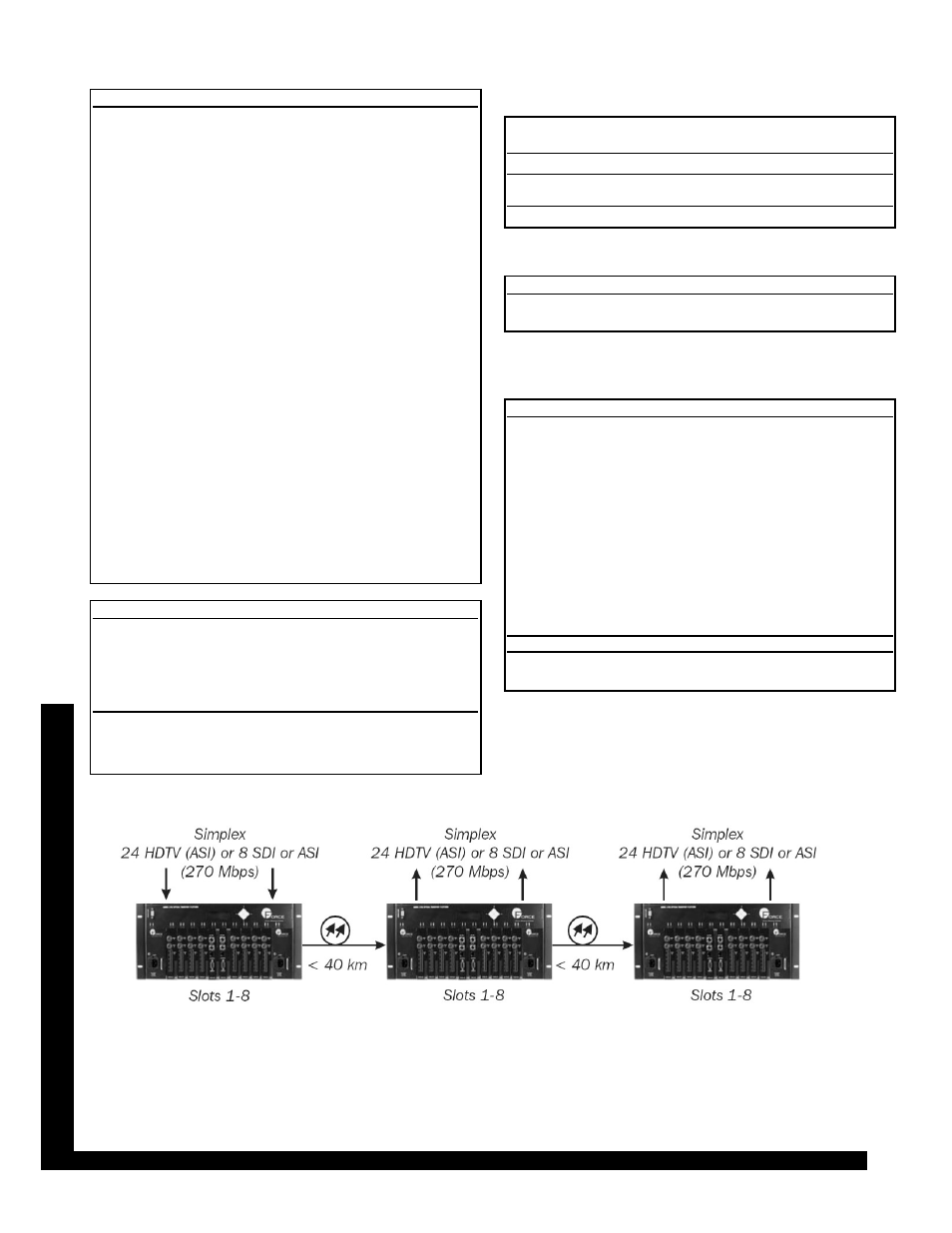

Example 2: Model 4762 optical transport of eight HDTV (ASI) channels that will allow cable oper-
ators to transport HDTV from headend to headend or to various hub sites over long distances.
The HD signals are digitally multiplexed on to a single fiber and can be sent up to 40 km (1310
nm) or 80 km (1550 nm).
1) FC/PC connector options are available. Replace SC in the part
number with FC. FC/APC connector options are available.
Replace SA in the part number with FA.
2) The “XXXX” in the part number specifies one of eight CWDM wave-
lengths. The "ITUXX" in the part number specifies one of thirty four
DWDM wavelengths. CWDM wavelengths are 1471 nm, 1491 nm,
1510 nm, 1531 nm, 1551 nm, 1571 nm, 1591 nm, and 1611 nm,
depending on the channel plan ordered.
* Universal AC and -48 Volts DC power options available
