4762
Multi-Video Platform SNMP
Digital Multi-Video Broadcast Platform
Features
 Mix and match video standards in one platform
 Provides broadcasters and cable operators with
a migration path allowing them to transport digi-
tized analog signals and digital signals. The
5RU chassis can accommodate up to 2 power
supply modules, 2 optical transceiver modules,
and 8 interface modules.
 Meets all additional FCC requirements for the
number of “must carry” audio channels and dig-
ital signal transmission.
 A truly redundant system with redundant optics
and power supplies.
 Available with 1310 nm, 1550 nm, CWDM and
DWDM optics.
 Hot-swappable, field-installabele, mix and
match video/audio modules provide optimum
transmission flexibility and system availability.
 The user can monitor the status and configure
all installed modules, as well as monitor the
system’s optical performance, through either
the 24 LED indicators or the 4-line, 20-charac-
ter LCD display screen. An SNMP power sup-
ply option allows for remote monitoring and
configuration.
 The LCD panel read-out includes detailed sys-
tem status such as optical terminal power, and
temperature levels, the system’s module config-
uration and the audio levels of each channel.

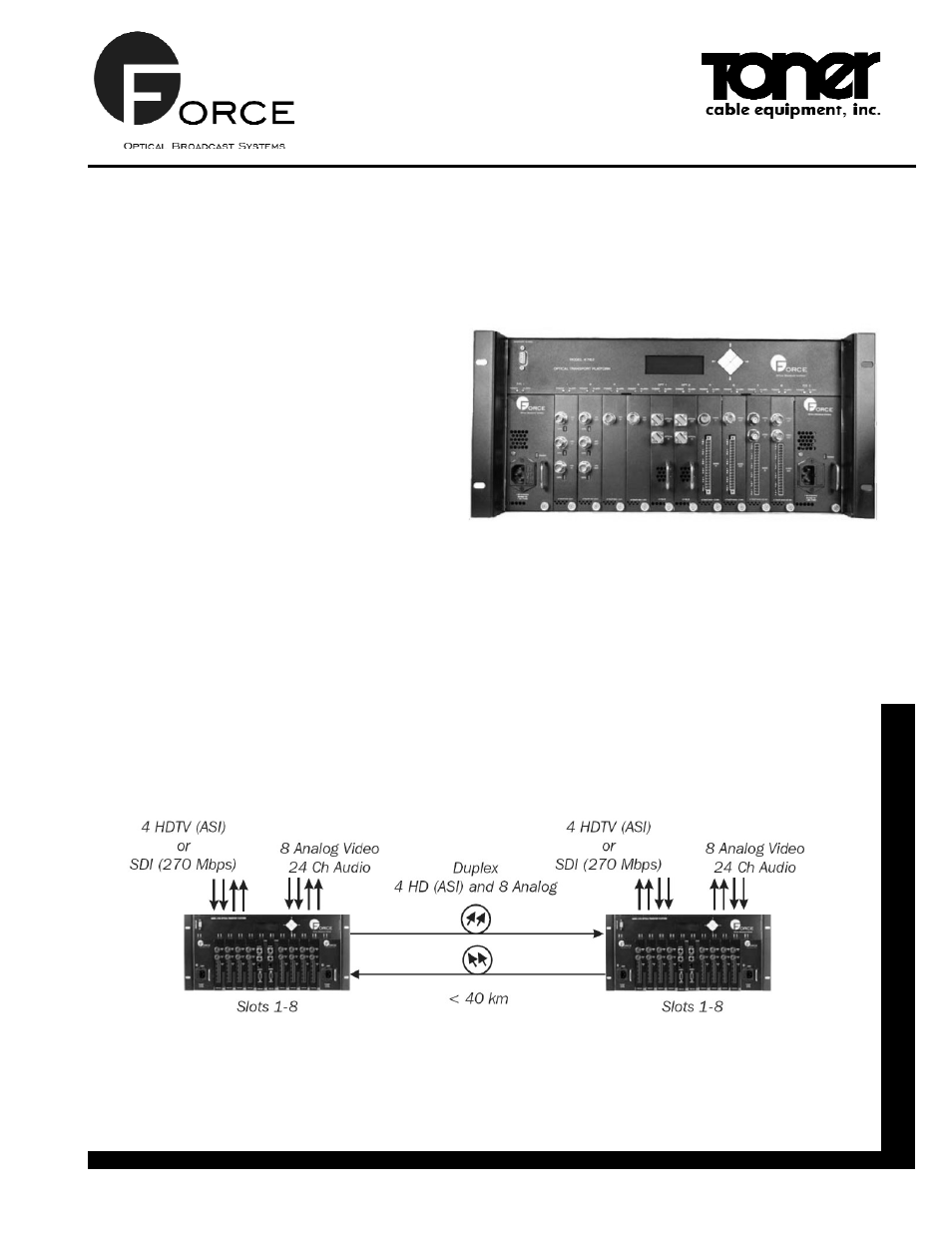

Example 1: Model 4762 duplex transmission of four HDTV (ASI) digital channels and eight 10 bit
analog video channels along with 24 audio channels for cable operators to transport from head-
end to headend to hubs. The video and audio signals are digitally multiplexed on to a single fiber
and can be sent up to 40 km (1310 nm) or 80 km (1550 nm).
Model 4762 Digital Broadcast Platform
