23 IT62H Integrated Toolcarrier specifications

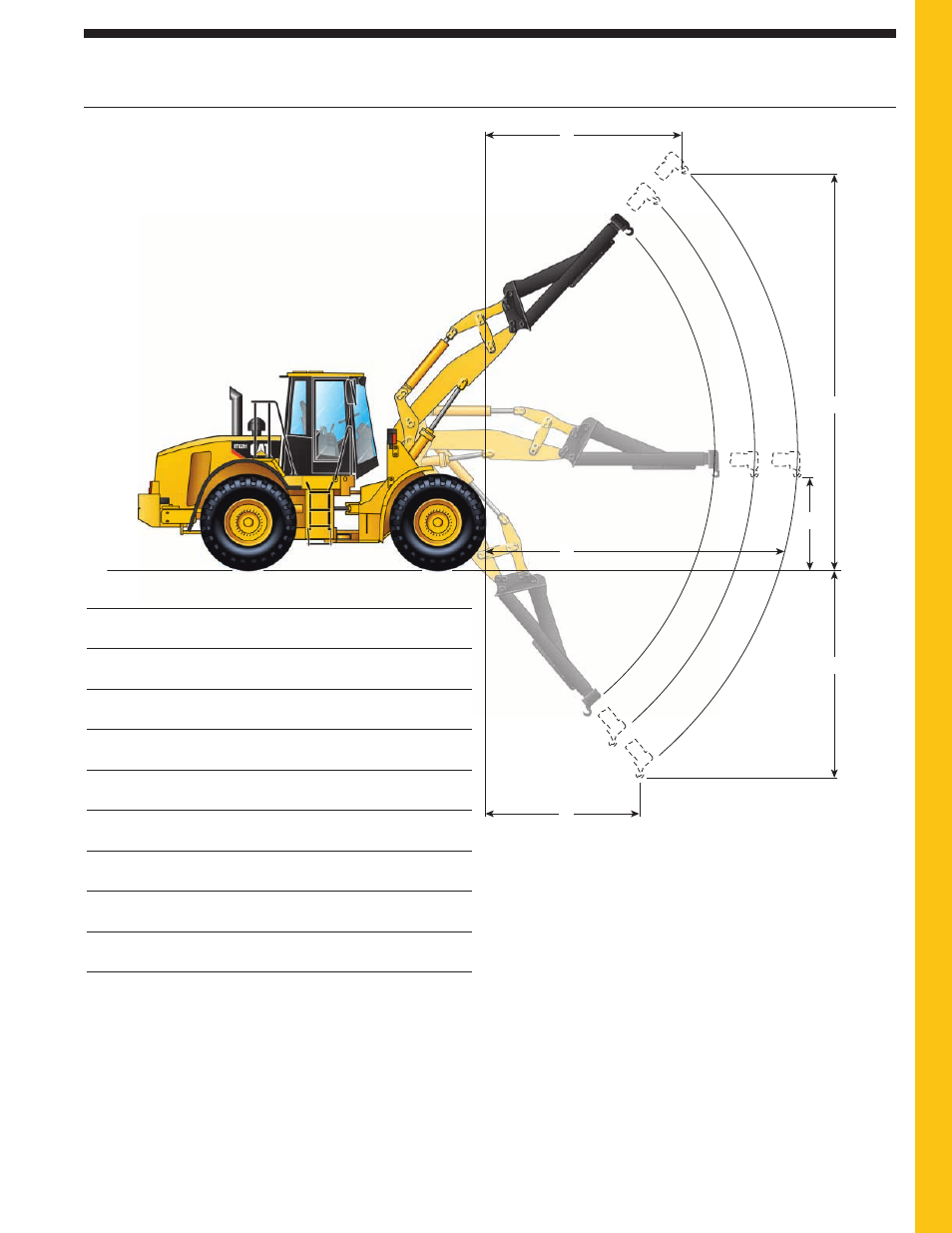

Dimensions – Material Handling Arm
All dimensions are approximate.
Mid-
Hook Position Retracted Position Extended
1 Hook reach, mm 2068 2495 2921
maximum lift ft/in 6'9" 8'2" 9'7"
2 Hook height, mm 6234 6910 7587
maximum lift ft/in 20'5" 22'8" 24'11"
3 Hook reach, mm 3961 4761 5561
lift arm level ft/in 13'0" 15'7" 18'3"
4 Hook height, mm 1828 1828 1828
lift arm level ft/in 6'0" 6'0" 6'0"
5 Hook reach, mm 2187 2688 3190
minimum lift ft/in 7'2" 8'10" 10'6"
6 Hook height, mm 1915 2539 3163
minimum lift ft/in 6'3" 8'4" 10'5"
Static tipping load, kg 7330 6292 5506
straight lb 16,163 13,874 12,141
Static tipping load, kg 6276 5388 4715
full turn lb 13,839 11,881 10,397
Operating kg 18 472 18 472 18 472
weight * (§) lb 40,731 40,731 40,731
* Static tipping loads and operating weights shown are based on standard machine configuration with 23.5R25 tires, full fuel
tank, coolants, lubricants, air conditioner, ride control and operator.
(§) Specifications and ratings conform to all applicable standards recommended by the Society of Automotive Engineers,
including SAE Standard J732C governing loader ratings.
