17 345D L Hydraulic Excavator specifications
3
1
4
5
8
7
9
6
10
2

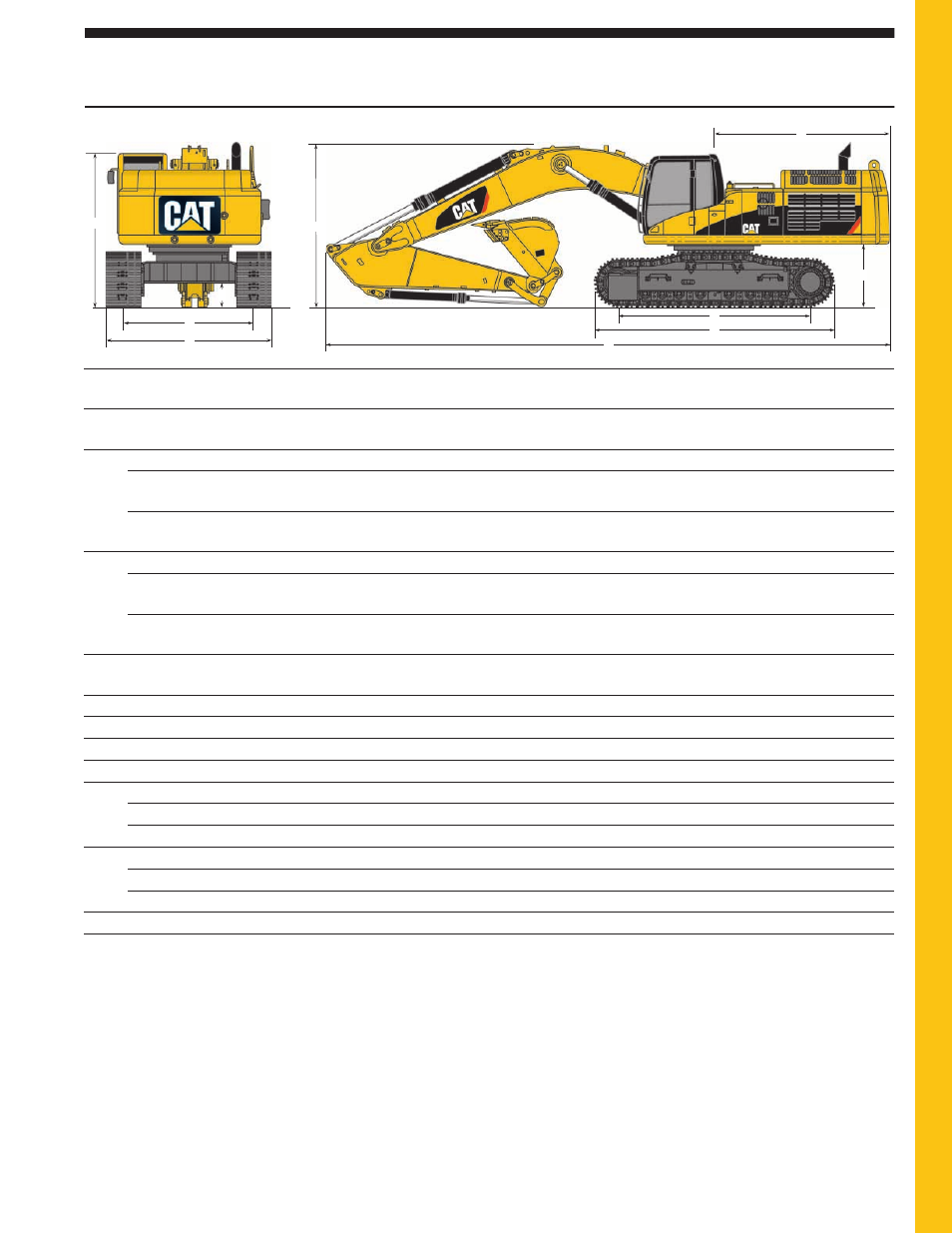

Dimensions
All dimensions are approximate.
Boom Long Reach Boom HD Reach Boom Mass Boom
7.4 m (24'3") 6.9 m (22'8") 6.55 m (21'6")
Stick R4.3TB R3.9TB R3.9TB R3.35TB M3.0UB M2.5UB
(14'1") (12'10") (12'10") (11'0") (9'10") (8'2")
1 Shipping Height
Fixed Gauge 3680 mm 3570 mm 3660 mm 3690 mm 4020 mm 3960 mm
Undercarriage (12'1") (11'8") (12'0") (12'1") (13'2") (13'0")
Variable Gauge 3630 mm 3550 mm 3640 mm 3720 mm 4050 mm 4000 mm
Undercarriage (11'11") (11'7") (11'11") (12'2") (13'3") (13'2")
2 Shipping Length
Fixed Gauge 12 450 mm 12 430 mm 11 950 mm 11 940 mm 11 640 mm 11 710 mm
Undercarriage (40'10") (40'9") (39'2") (39'2") (38'2") (38'5")
Variable Gauge 12 400 mm 12 370 mm 11 910 mm 11 910 mm 11 620 mm 11 680 mm
Undercarriage (40'8") (40'7") (39'1") (39'1") (38'1") (38'4")
3 Tail Swing Radius 3770 mm 3770 mm 3770 mm 3770 mm 3770 mm 3770 mm
(12'4") (12'4") (12'4") (12'4") (12'4") (12'4")
Undercarriage Fixed Gauge Variable Gauge Wide Variable Gauge
4 Length to Center of Rollers 4360 mm (14'4") 4340 mm (14'3") 4340 mm (14'3")
5 Track Length 5360 mm (17'7") 5340 mm (17'6") 5340 mm (17'6")
6 Ground Clearance 510 mm (1'8") 740 mm (2'5") 740 mm (2'5")
7 Track Gauge
Retracted (Transport) Position 2740 mm (9'0") 2640 mm (8'8") 2760 mm (9'1")
Extended (Working) Position 2740 mm (9'0") 2890 mm (9'6") 3240 mm (10'8")
8 Track Width*
Retracted (Transport) Position 3640 mm (11'11") 3540 mm (11'7") 3660 mm (12'0")
Extended (Working) Position 3640 mm (11'11") 3790 mm (12'5") 4140 mm (13'7")
9 Cab Height 3210 mm (10'6") 3360 mm (11'0") 3360 mm (11'0")
10 Counterweight Height (to bottom) 1320 mm (4'4") 1470 mm (4'10") 1470 mm (4'10")
* Track width shown is for 900 mm (36") track shoes. Subtract 150 mm (6") for 750 mm (30") track shoes.
