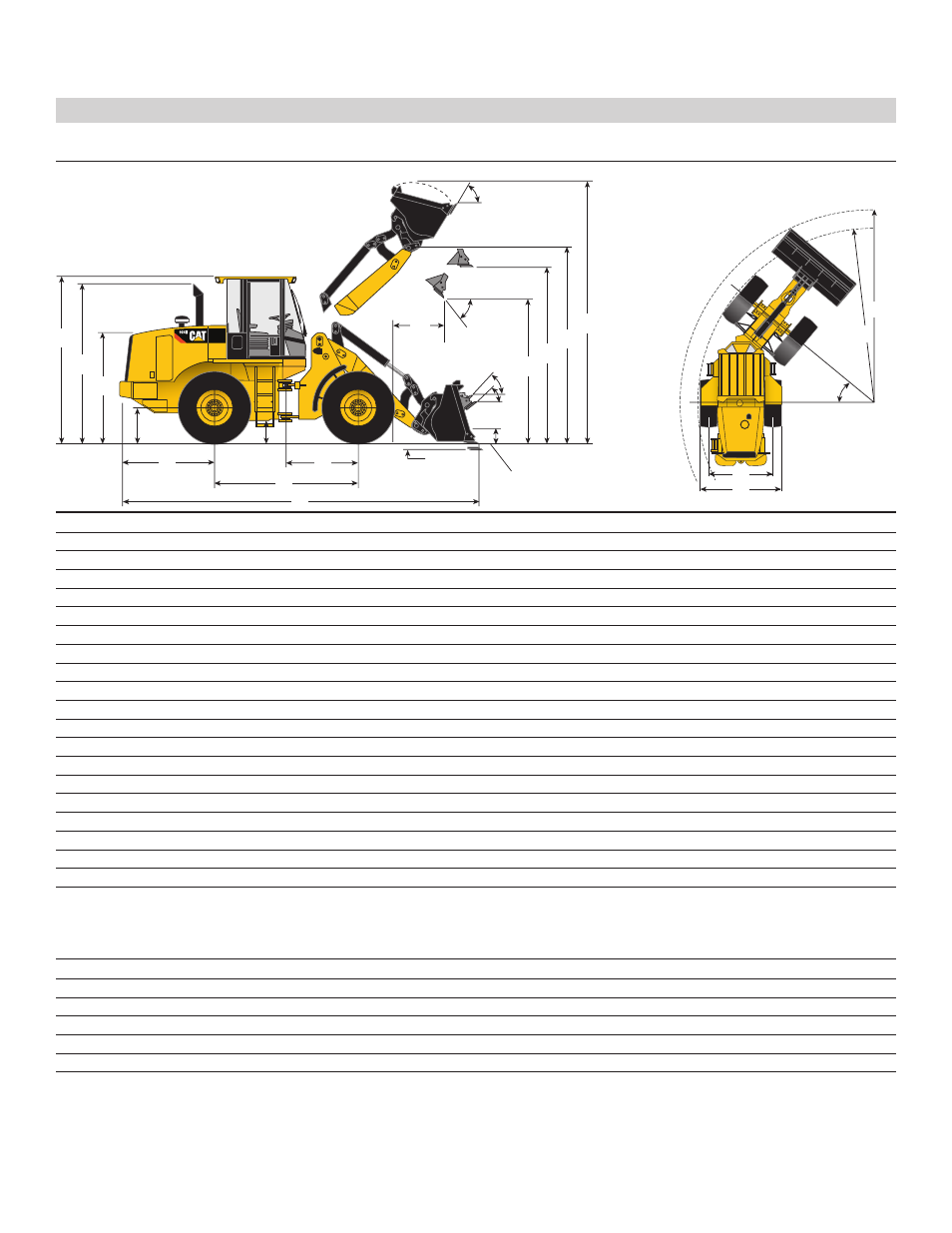

Dimensions with Bucket
All dimensions are approximate. Dimensions may vary with bucket. Refer to Operating Specifications.
Standard VersaLink High Lift VersaLink
1 Height to top of ROPS/FOPS 3227 mm (10 ft 7 in) 3226 mm (10 ft 7 in)
2 Height to top of exhaust stack 3211 mm (10 ft 6 in) 3210 mm (10 ft 6 in)
3 Height to top of hood 2219 mm (7 ft 3 in) 2218 mm (7 ft 3 in)
4 Height to center of axle 692 mm (2 ft 3 in) 692 mm (2 ft 3 in)
5 Ground clearance 436 mm (1 ft 5 in) 435 mm (1 ft 5 in)
6 Overall length 7147 mm (23 ft 5 in) 7649 mm (25 ft 1 in)
7 Length – rear axle to bumper 1962 mm (6 ft 5 in) 1962 mm (6 ft 5 in)
8 Center line of front axle to hitch 1400 mm (4 ft 7 in) 1400 mm (4 ft 7 in)
9 Wheel base length 2800 mm (9 ft 2 in) 2800 mm (9 ft 2 in)
10 Dump clearance at maximum lift and 45° dump 2828 mm (9 ft 3 in) 3335 mm (10 ft 11 in)
11 Bucket clearance at maximum lift and level 3556 mm (11 ft 8 in) 4063 mm (13 ft 4 in)
12 Bucket pin height at maximum lift 3881 mm (12 ft 9 in) 4387 mm (14 ft 5 in)
13 Overall height – bucket raised 5178 mm (16 ft 12 in) 5684 mm (18 ft 8 in)
14 Reach at maximum lift and 45° dump 992 mm (3 ft 3 in) 993 mm (3 ft 3 in)
15 Rack back angle at maximum lift 58° 62°°
16 Dump angle at maximum lift 45° 45°
17 Rack back angle at ground 50° 50°
18 Rack back angle at carry 51° 54°
19 Carry height 435 mm (1 ft 5 in) 592 mm (1 ft 11 in)
20 Digging depth 64 mm (3 in) 75 mm (3 in)
Dimensions listed are for 924H with 1.8 m 3 (2.4 yd 3 ) hook-on bucket with bolt-on cutting edge, standard cab, optional counterweights, limited slip
axles, heavy duty rear brakes, additional guarding, sound supression, 80 kg (176 lb) operator and Michelin 20.5 R25 L3 XHA tires.
20.5 R25 L3 XHA Tires 17.5-25 12PR (L-2) Tires
21 Width at tread center 1880 mm (6 ft 2 in) 1880 mm (6 ft 2 in)
22 Overall width over tires 2492 mm (8 ft 2 in) 2356 mm (7 ft 9 in)
23 Minimum turning radius over tires 5104 mm (16 ft 9 in) 5070 mm (16 ft 8 in)
24 Minimum turning radius over bucket at ground level 5633 mm (18 ft 6 in) 5675 mm (18 ft 7 in)
25 Steering angle – left/right 40° 40°
Change in vertical dimension no change no change –44 mm (–2 in)
