40EPF..PbF Soft Recovery Series
Fast Soft Recovery
Rectifier Diode, 40 A
Vishay High Power Products

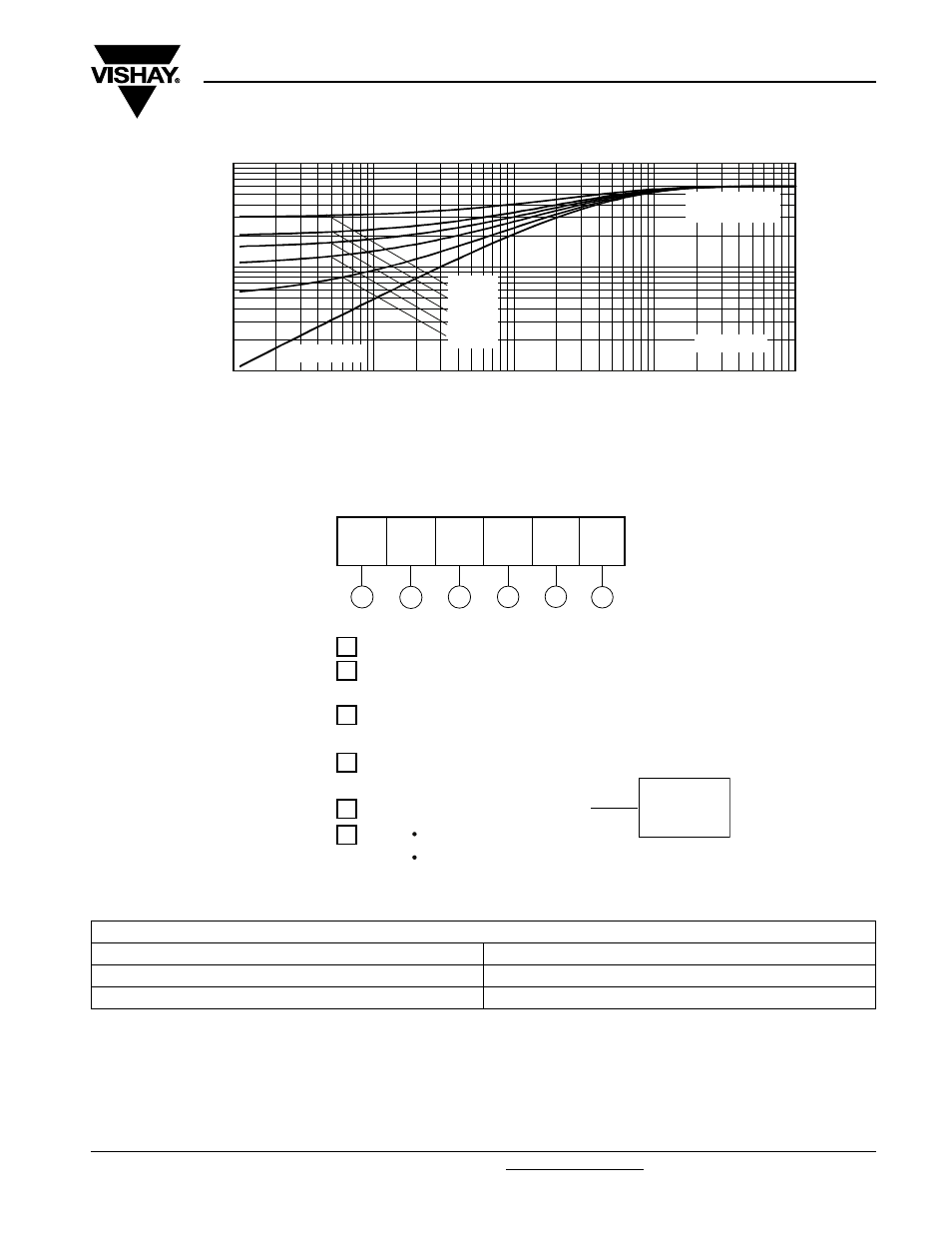

Fig. 14 - Thermal Impedance Z
thJC
Characteristics
ORDERING INFORMATION TABLE
0.01
0.0001 0.001 0.01 0.1
Square Wave Pulse Duration (s) Z
thJC
- Transient Thermal Impedance (K/W)
0.1
1
Single pulse
40EPF.. Series
Steady state value
(DC operation)
D = 0.50
D = 0.33
D = 0.25
D = 0.17
D = 0.08
1
1 - Current rating (40 = 40 A)
2 - Circuit configuration:
E = Single diode
3 - Package:
P = TO-247AC modified
4 - Type of silicon:
F = Fast diode
5 - Voltage code x 100 = V
RRM
6 - None = Standard production
PbF = Lead (Pb)-free
02 = 200 V
04 = 400 V
06 = 600 V
Device code
5 1 3 2 4 6
40 E P F 06 PbF
LINKS TO RELATED DOCUMENTS
Dimensions http://www.vishay.com/doc?95001
Part marking information http://www.vishay.com/doc?95006
SPICE model http://www.vishay.com/doc?95274
