Schottky Rectifier
New Generation 3 D-61 Package, 2 x 55 A
112CNQ030A
Vishay High Power Products
FEATURES
• 150 °C T
J
operation
• Center tap module
• Very low forward voltage drop
• High frequency operation
• High purity, high temperature epoxy encapsulation for
enhanced mechanical strength and moisture resistance
• Guard ring for enhanced ruggedness and long term
reliability
• New fully transfer-mold low profile, small footprint, high
current package
• Designed and qualified for industrial level
DESCRIPTION
The 112CNQ030A center tap Schottky rectifier module has
been optimized for very low forward voltage drop, with
moderate leakage. The proprietary barrier technology allows
for reliable operation up to 150 °C junction temperature.
Typical applications are in switching power supplies,
converters, freewheeling diodes, and reverse battery
protection.
PRODUCT SUMMARY
I
F(AV)
2 x 55 A
V
R
30 V

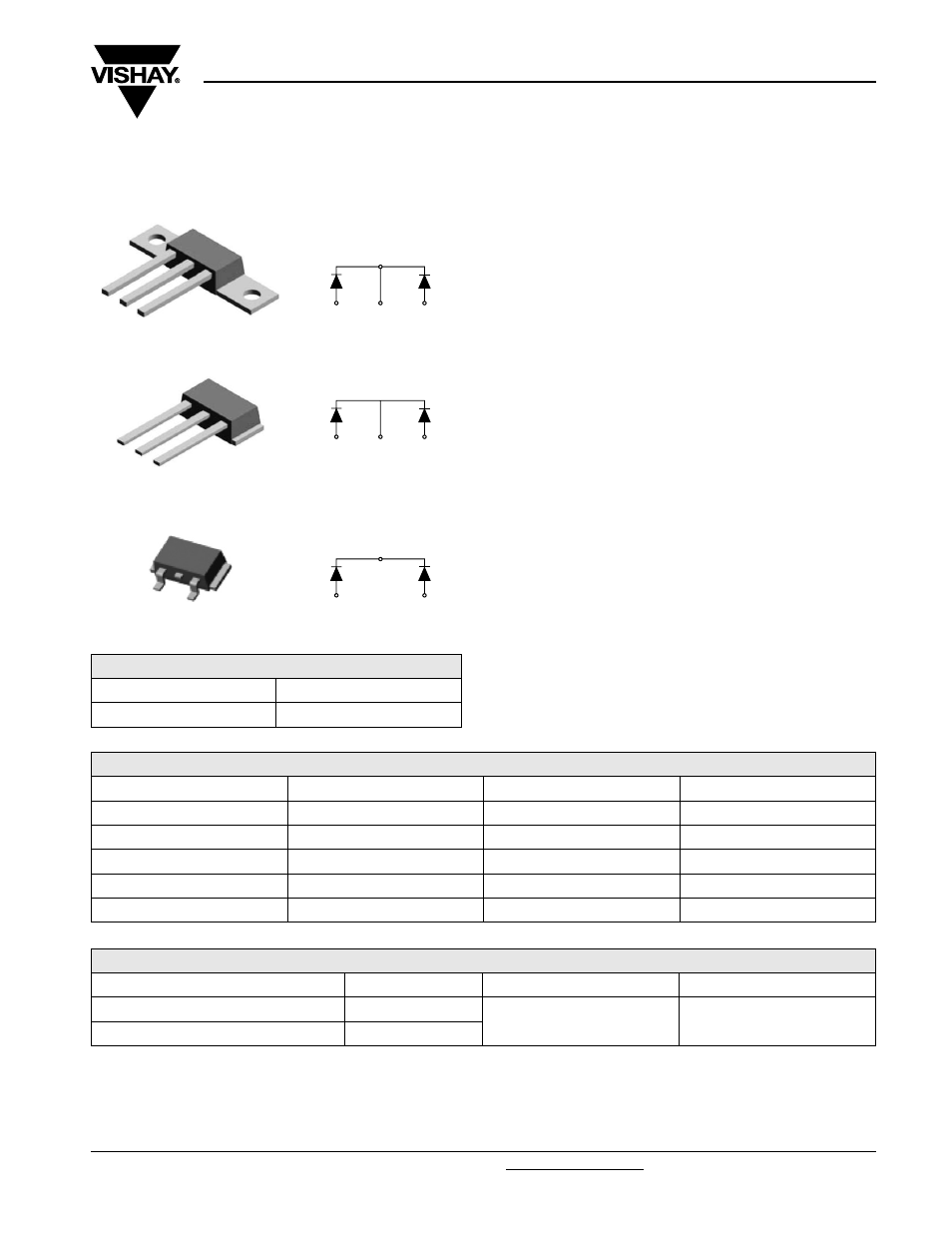

Base
common
cathode
Base
common
cathode
Common
cathode
Anode
2
Anode
1
1 2 3
Common
cathode
Anode
2
Anode
1
1 2 3
Anode
2
Anode
1
1 3
D-61-8
112CNQ030A
112CNQ030ASM
D-61-8-SM
112CNQ030ASL
D-61-8-SL
MAJOR RATINGS AND CHARACTERISTICS
SYMBOL CHARACTERISTICS VALUES UNITS
I
F(AV)
Rectangular waveform 110 A
V
RRM
30 V
I
FSM
t
p
= 5 µs sine 5100 A
V
F
55 Apk, T
J
= 125 °C (per leg) 0.39 V
T
J
Range - 55 to 150 °C
VOLTAGE RATINGS
PARAMETER SYMBOL 112CNQ030A UNITS
Maximum DC reverse voltage V
R
30 V
Maximum working peak reverse voltage V
RWM
