Document Number: 94013

For technical questions, contact: [email protected]

www.vishay.com

Revision: 21-Jul-08

1

Ultrafast Rectifier,

2 x 15 A FRED Pt

TM

30CPU04PbF

Vishay High Power Products

FEATURES

• Ultrafast recovery time

• Low forward voltage drop

• Low leakage current

• 175 °C operating junction temperature

• Lead (Pb)-free

• Designed and qualified for industrial level

DESCRIPTION/APPLICATIONS

FRED Pt

TM

series are the state of the art ultrafast recovery

rectifiers specifically designed with optimized performance
of forward voltage drop and ultrafast recovery time.
The planar structure and the platinum doped life time
control, guarantee the best overall performance,
ruggedness and reliability characteristics.
These devices are intended for use in the output rectification
stage of SMPS, UPS, dc-to-dc converters as well as
freewheeling diodes in low voltage inverters and chopper
motor drives.
Their extremely optimized stored charge and low recovery
current minimize the switching losses and reduce over

dissipation in the switching element and snubbers.

PRODUCT SUMMARY

t

rr

60 ns

I

F(AV)

2 x 15 A

V

R

400 V

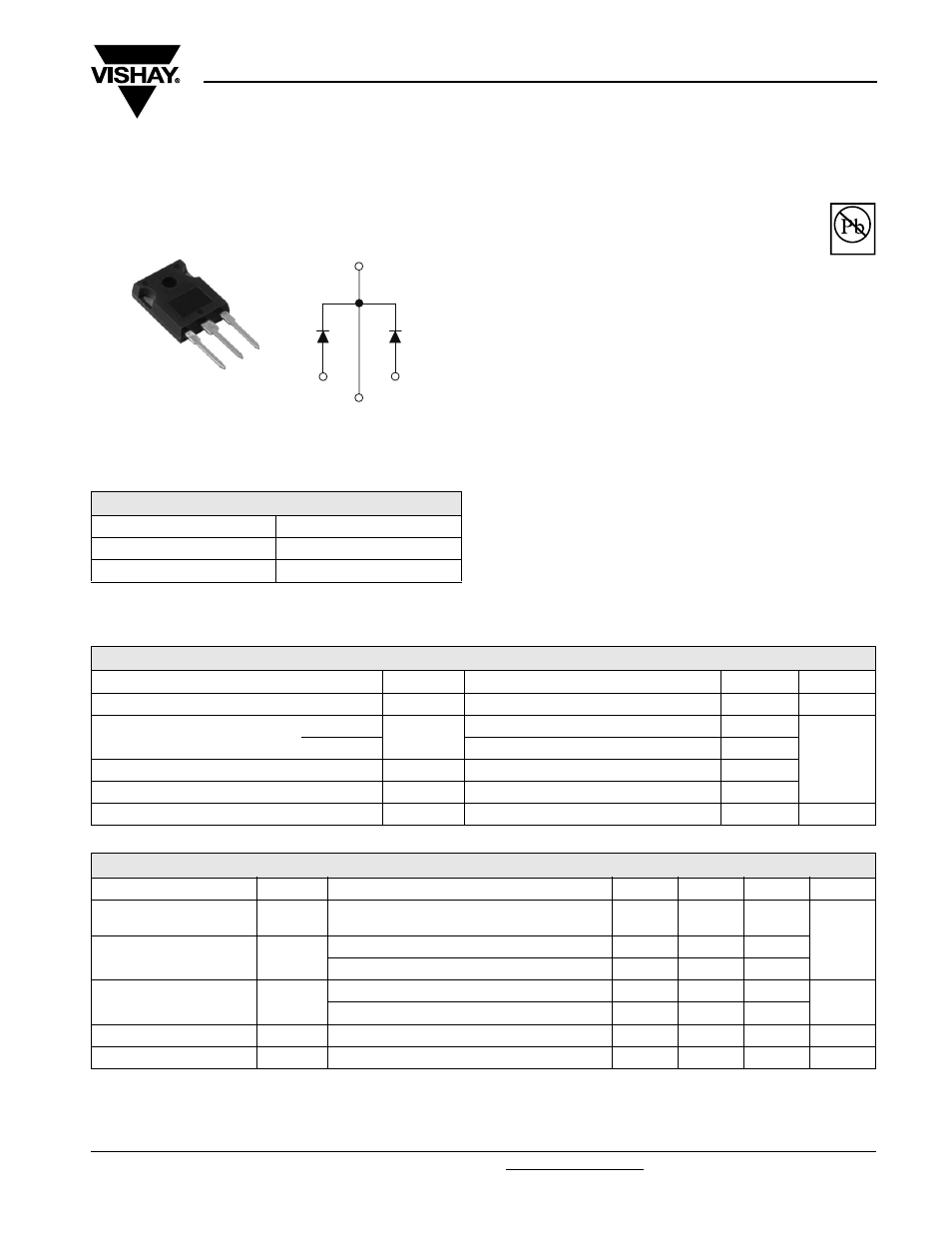

TO-247AC

Base

common

cathode

Common

cathode

2

2

1

3

Anode

1

Anode

2

Available

Pb-free

RoHS*

COMPLIANT

ABSOLUTE MAXIMUM RATINGS

PARAMETER SYMBOL

TEST

CONDITIONS

VALUES

UNITS

Peak repetitive reverse voltage

V

RRM

400

V

Average rectified forward current

per leg

I

F(AV)

15

A

total device

Rated V

R

, T

C

= 149 °C

30

Non-repetitive peak surge current per leg

I

FSM

T

C

= 25 °C

200

Peak repetitive forward current per leg

I

FRM

Rated V

R

, T

C

= 149 °C, square wave, 20 kHz

30

Operating junction and storage temperatures

T

J

, T

Stg

- 65 to 175

°C

ELECTRICAL SPECIFICATIONS (T

J

= 25 °C unless otherwise specified)

PARAMETER SYMBOL

TEST

CONDITIONS

MIN.

TYP.

MAX.

UNITS

Breakdown voltage,
blocking voltage

V

BR

,

V

R

I

R

= 100 µA

400

-

-

V

Forward voltage

V

F

I

F

= 15 A

-

1.17

1.25

I

F

= 15 A, T

J

= 150 °C

-

0.93

1.12

Reverse leakage current

I

R

V

R

= V

R

rated

-

0.3

10

µA

T

J

= 150 °C, V

R

= V

R

rated

-

30

500

Junction capacitance

C

T

V

R

= 400 V

-

28

-

pF

Series inductance

L

S

Measured lead to lead 5 mm from package body

-

12

-

nH

* Pb containing terminations are not RoHS compliant, exemptions may apply
