VSMD400AW60, VSMD400CW60
Vishay Semiconductors
Standard Recovery Diodes, 400 A
Preliminary

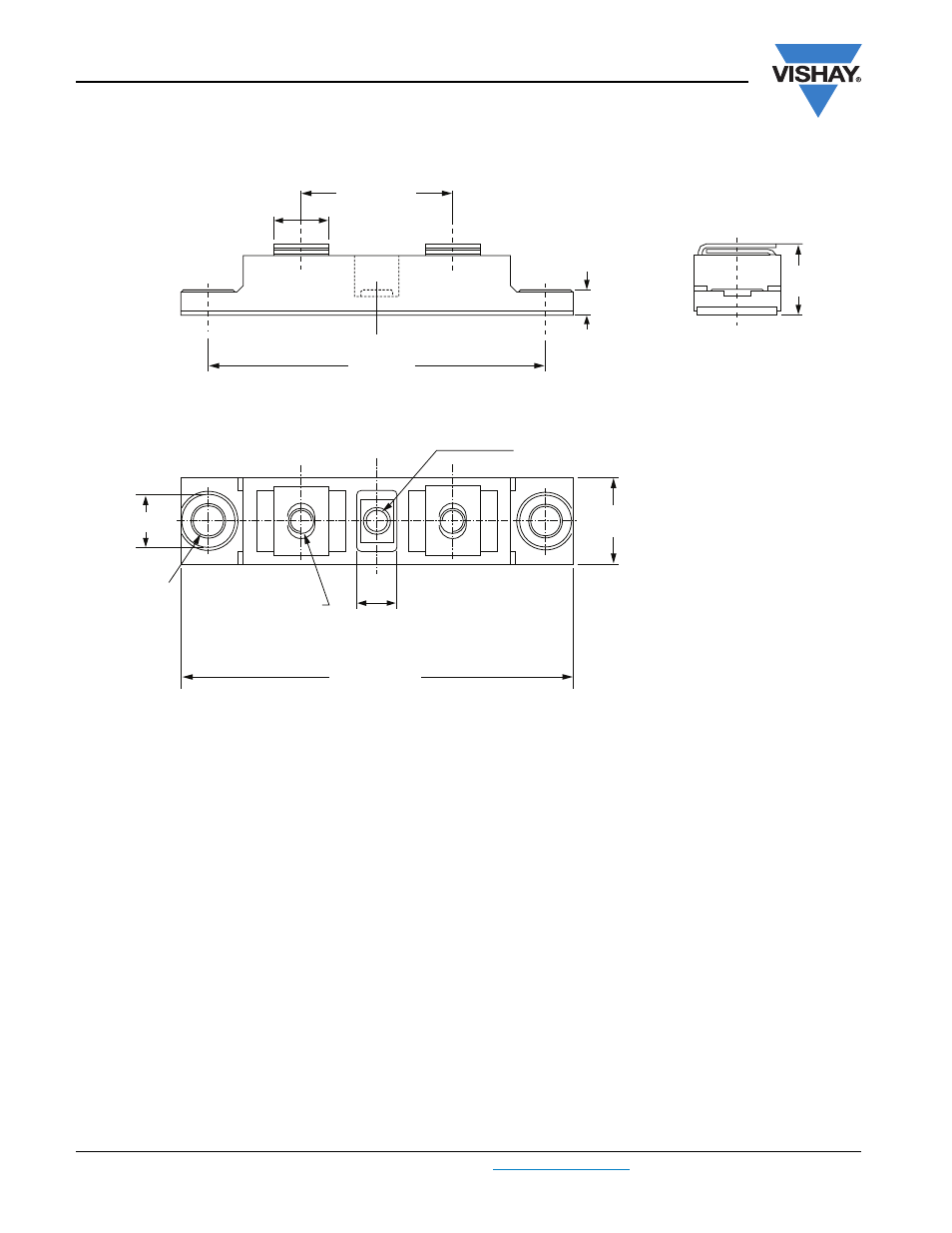

DIMENSIONS in millimeters (inches)
3
2
3
1
Ш 5.2 (Ш 0.20)
9.6 (0.37) MIN.
93 (3.66) MAX.
¼" - 20 UNC
80 (3.15)
13 (0.51)
35 (1.37) REF.
7 (0.27)
6 (0.23)
17.5 (0.69)
16.5 (0.65)
21 (0.82)
20 (0.78)
Ш 7.2 (Ш 0.28)
(2 places)
12.6 (0.5)
