Document Number: 94512 For technical questions, contact: [email protected] www.vishay.com
Revision: 25-Apr-08 1

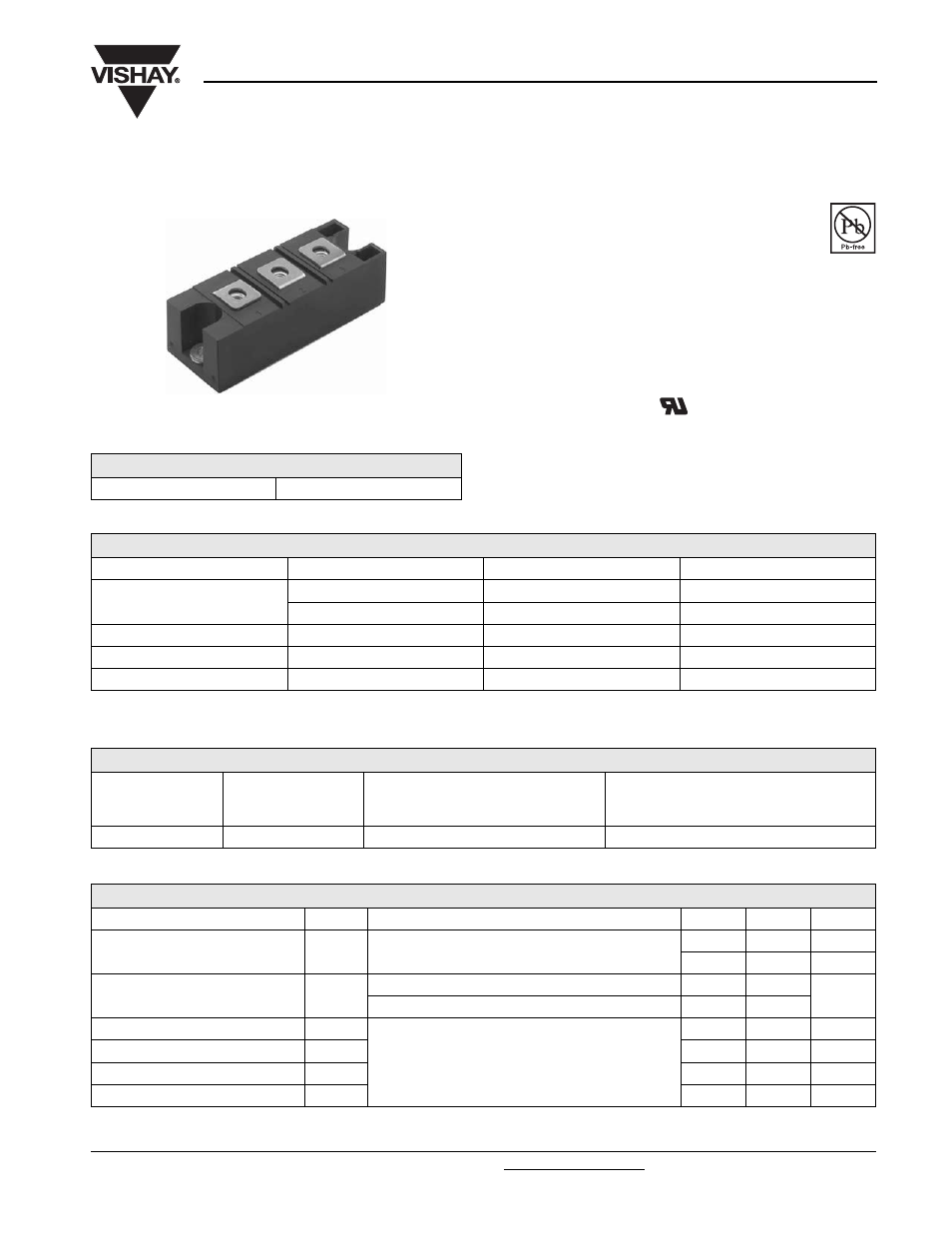

HEXFRED ® Ultrafast Diodes, 100 A
(New INT-A-PAK TM Power Modules)
VSKDU162/12PbF
Vishay High Power Products
FEATURES
• Electrically isolated: DBC base plate
• 3500 V
RMS
isolating voltage
• Standard JEDEC package
• Simplified mechanical designs, rapid assembly
• High surge capability
• Large creepage distances
• UL E78996 approved
• Case style New INT-A-PAK
• Totally lead (Pb)-free
• Designed and qualified for industrial level
ELECTRICAL SPECIFICATIONS
PRODUCT SUMMARY
I
F(AV)
100 A
New INT-A-PAK TM
RoHS
COMPLIANT
MAJOR RATINGS AND CHARACTERISTICS
SYMBOL CHARACTERISTICS VALUES UNITS
I
F(AV) rect
100 A
T
C
88 °C
t
rr
200 ns
V
RRM
1200 V
T
J
, T
Stg
- 40 to 150 °C
VOLTAGE RATINGS
TYPE NUMBER
VOLTAGE
CODE
V
RRM
, MAXIMUM REPETITIVE PEAK
REVERSE VOLTAGE
V
V
RSM
, MAXIMUM NON-REPETITIVE
PEAK REVERSE VOLTAGE
V
VSKDU162/12PbF 12 1200 1250
FORWARD CONDUCTION
PARAMETER SYMBOL TEST CONDITIONS TYP. MAX. UNITS
Maximum average forward current
at case temperature
I
F(AV)
Rectangular conduction, 50 % duty cycle
- 100 A
- 88 °C
Forward voltage drop V
FM
I
F
= 100 A, T
J
= 25 °C, t
p
= 400 µs square wave 2.5 3.2
V
I
F
= 160 A, T
J
= 25 °C, t
p
= 400 µs square wave 2.9 3.9
Reverse recovery time t
rr
I
F
= 160 A, T
J
= 25 °C, - dI/dt = 200 A/µs, V
R
= 200 V
150 200 ns
Reverse recovery charge Q
rr
2000 2400 nC
Reverse recovery current I
REC
20 22 A
Maximum forward voltage drop dI
(rec)M
/dt - 300 A/µs
