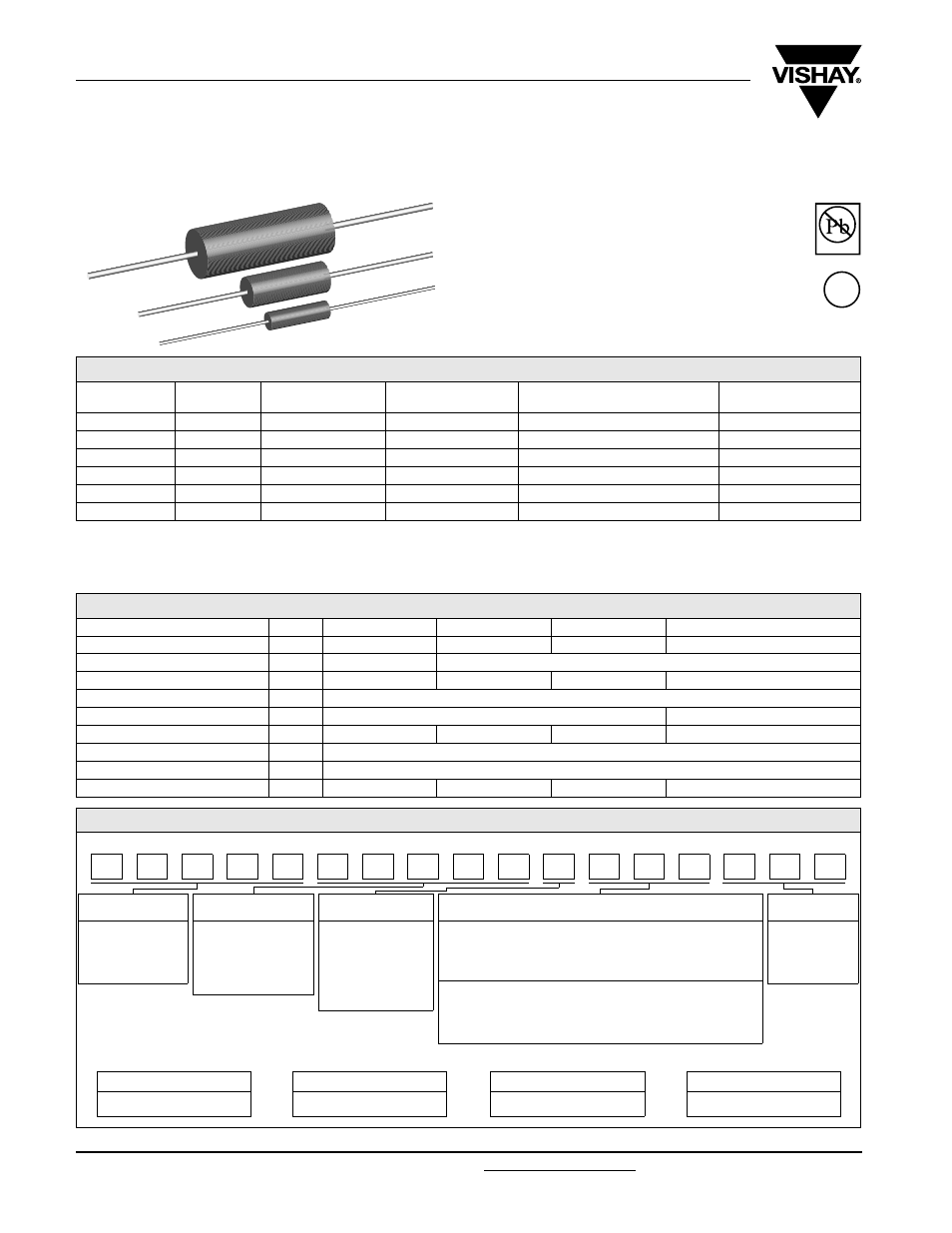

Vishay Lead LVR - Manual

Wirewound Resistors, Precision Power, Low Value,
Commercial, Military, MIL-PRF-49465 Type RLV, Axial Lead
LVR
Vishay Dale
www.vishay.com For technical questions, contact: [email protected] Document Number: 30206
152 Revision: 29-Feb-08
FEATURES
• Ideal for all types of current sensing applications
including switching and linear power supplies,
instruments and power amplifiers
• Proprietary processing technique produces
extremely low resistance values
• Excellent load life stability
• Low temperature coefficient
• Low inductance
• Cooler operation for high power to size ratio
Notes
(1) Resistance is measured 3/8" [9.52 mm] from the body of the resistor, or at 1.183" [30.05 mm], 1.315" [33.40 mm], 1.675" [42.545 mm] or
2.575" [65.405 mm] spacing for the LVR01, LVR03, LVR05 and LVR10 respectively
(2) Standard resistance values are 0.01
Ω, 0.015 Ω, 0.02 Ω, 0.025 Ω, 0.03 Ω, 0.033 Ω, 0.04 Ω, 0.05 Ω, 0.051 Ω, 0.06 Ω, 0.068 Ω, 0.07 Ω, 0.08 Ω,
0.09 Ω and 0.1 Ω with 1 % tolerance. Other resistance values may be available upon request
* Pb containing terminations are not RoHS compliant, exemptions may apply
Available
Pb-free
RoHS*
COMPLIANT
e3
STANDARD ELECTRICAL SPECIFICATIONS
GLOBAL
MODEL HISTORICAL
MODEL
MIL-PRF-49465
TYPE
POWER RATING
P
25 °C
W
RESISTANCE RANGE
Ω (1)
± 1 %, ± 3 %, ± 5 %, ± 10 %
TECHNOLOGY
LVR01 LVR-1 - 1 0.01 - 0.1 (2) Metal Strip
LVR03 LVR-3 - 3 0.005 - 0.2 Metal Strip
LVR03...26 LVR-3-26 RLV30 (M4946506) 3 0.01 - 0.2 Metal Strip
LVR05 LVR-5 - 5 0.005 - 0.3 Metal Strip
LVR05...26 LVR-5-26 RLV31 (M4946507) 5 0.01 - 0.3 Metal Strip
LVR10 LVR-10 - 10 0.01 - 0.8 Coil Spacewound
TECHNICAL SPECIFICATIONS
PARAMETER UNIT LVR01 LVR03 LVR05 LVR10
Rated Power at + 25 °C W 1 3 5 10
Operating Temperature Range °C - 65 to + 175 - 65 to + 275
Dielectric Withstanding Voltage V
AC
1000 1000 1000 1000
Insulation Resistance
Ω
10 000 M
Ω minimum dry
Short Time Overload - 5 x rated power for 5 s 10 x rated power for 5 s
Terminal Strength (minimum) lb 5 10 10 10
Temperature Coefficient ppm/°C See TCR vs. Resistance Value chart
Maximum Working Voltage V ( P x R) 1/2
Weight (maximum) g 2 2 5 11
GLOBAL PART NUMBER INFORMATION
New Global Part Numbering: LVR055L000FS73 (preferred part number format)
GLOBAL MODEL VALUE TOLERANCE PACKAGING SPECIAL
LVR01
LVR03
LVR05
LVR10 R = Decimal
L = m
Ω
(values < 0.010
Ω)
R1500 = 0.15
Ω
7L000 = 0.007
Ω
D = ± 0.5 %
F = ± 1.0 %
G = ± 2.0 %
H = ± 3.0 %
J = ± 5.0 %
K = ± 10.0 %
E12 = Lead (Pb)-free bulk
E03 = Lead (Pb)-free lacer pack (LVR10)
E70 = Lead (Pb)-free, tape/reel 1000 pieces (LVR01, 03)
E73 = Lead (Pb)-free, tape/reel 500 pieces
(Dash Number)
(up to 3 digits)
From 1 - 999
as applicable
B12 = Tin/lead bulk
L03 = Tin/lead lacer pack (LVR10)
S70 = Tin/lead, tape/reel 1000 pieces (LVR01, 03)
S73 = Tin/lead, tape/reel 500 pieces
Historical Part Number Example: LVR-5 0.005 Ω 1 % S73 (will continue to be accepted for tin/lead product only)
LVR-5 0.005
Ω
1 % S73
HISTORICAL MODEL RESISTANCE VALUE TOLERANCE CODE PACKAGING
V R 0 5 5 L 0 0 0 F S 7 3 L
