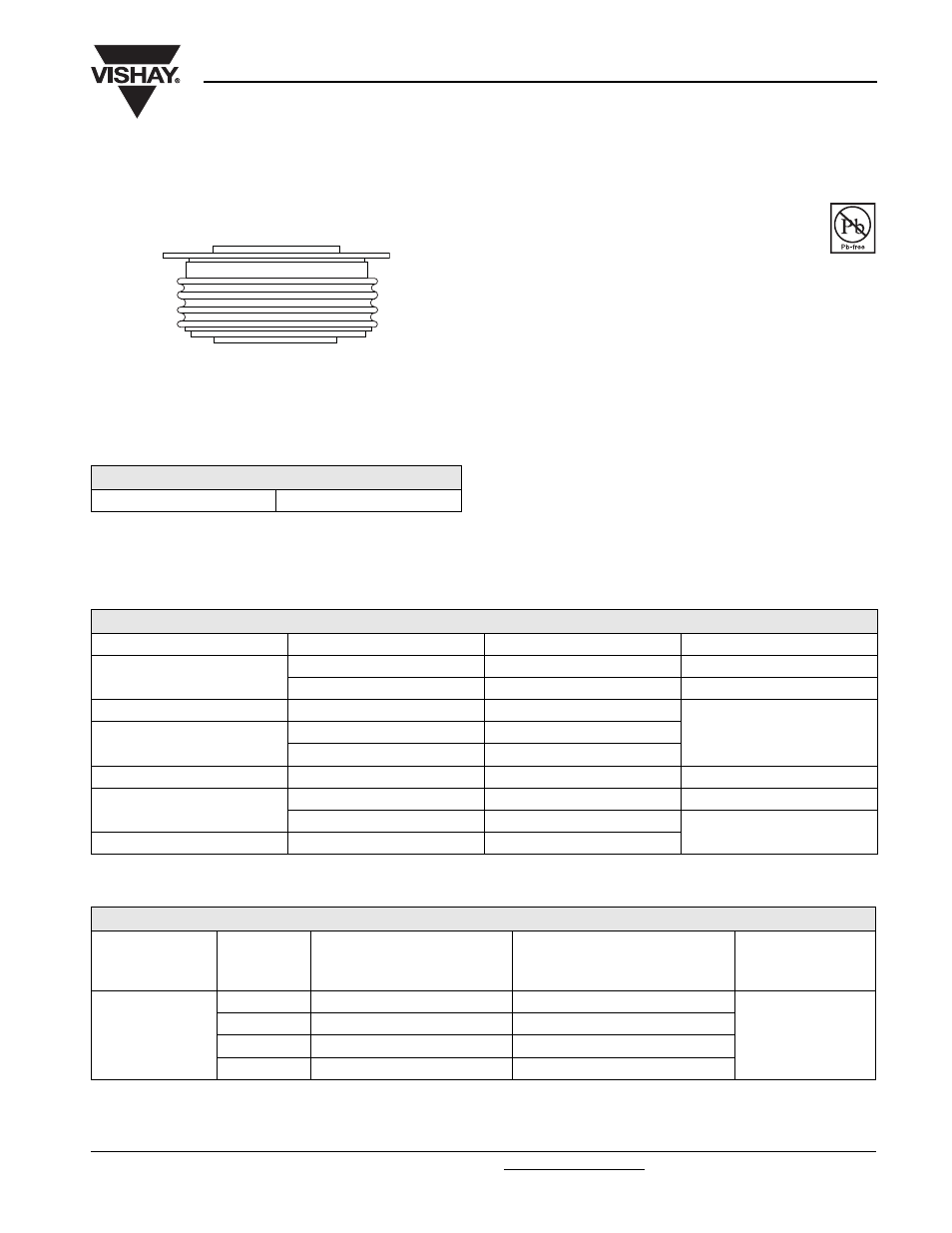

Vishay SD263C..S50L Series - Manual

Document Number: 93173 For technical questions, contact: [email protected] www.vishay.com
Revision: 14-May-08 1
Fast Recovery Diodes
(Hockey PUK Version), 375 A
SD263C..S50L Series
Vishay High Power Products
FEATURES
• High power FAST recovery diode series
• 4.5 µs recovery time
• High voltage ratings up to 4500 V
• High current capability
• Optimized turn-on and turn-off characteristics
• Low forward recovery
• Fast and soft reverse recovery
• Press PUK encapsulation
• Case style conform to JEDEC DO-200AB (B-PUK)
• Maximum junction temperature 125 °C
• Lead (Pb)-free
TYPICAL APPLICATIONS
• Snubber diode for GTO
• High voltage freewheeling diode
• Fast recovery rectifier applications
ELECTRICAL SPECIFICATIONS
PRODUCT SUMMARY
I
F(AV)
375 A
DO-200AB (B-PUK)
RoHS
COMPLIANT
MAJOR RATINGS AND CHARACTERISTICS
PARAMETER TEST CONDITIONS VALUES UNITS
I
F(AV)
375 A
T
hs
55 °C
I
F(RMS)
408
A
I
FSM
50 Hz 5500
60 Hz 5760
V
RRM
Range 3000 to 4500 V
t
rr
4.5 µs
T
J
125
°C
T
J
- 40 to 125
VOLTAGE RATINGS
TYPE NUMBER
VOLTAGE
CODE
V
RRM
, MAXIMUM REPETITIVE
PEAK REVERSE VOLTAGE
V
V
RSM
, MAXIMUM NON-REPETITIVE
PEAK REVERSE VOLTAGE
V
I
RRM
MAXIMUM
AT T
J
= T
J
MAXIMUM
mA
SD263C..S50L
30 3000 3100
50
36 3600 3700
40 4000 4100
45 4500 4600
