AL600ULX Series
- 5 -

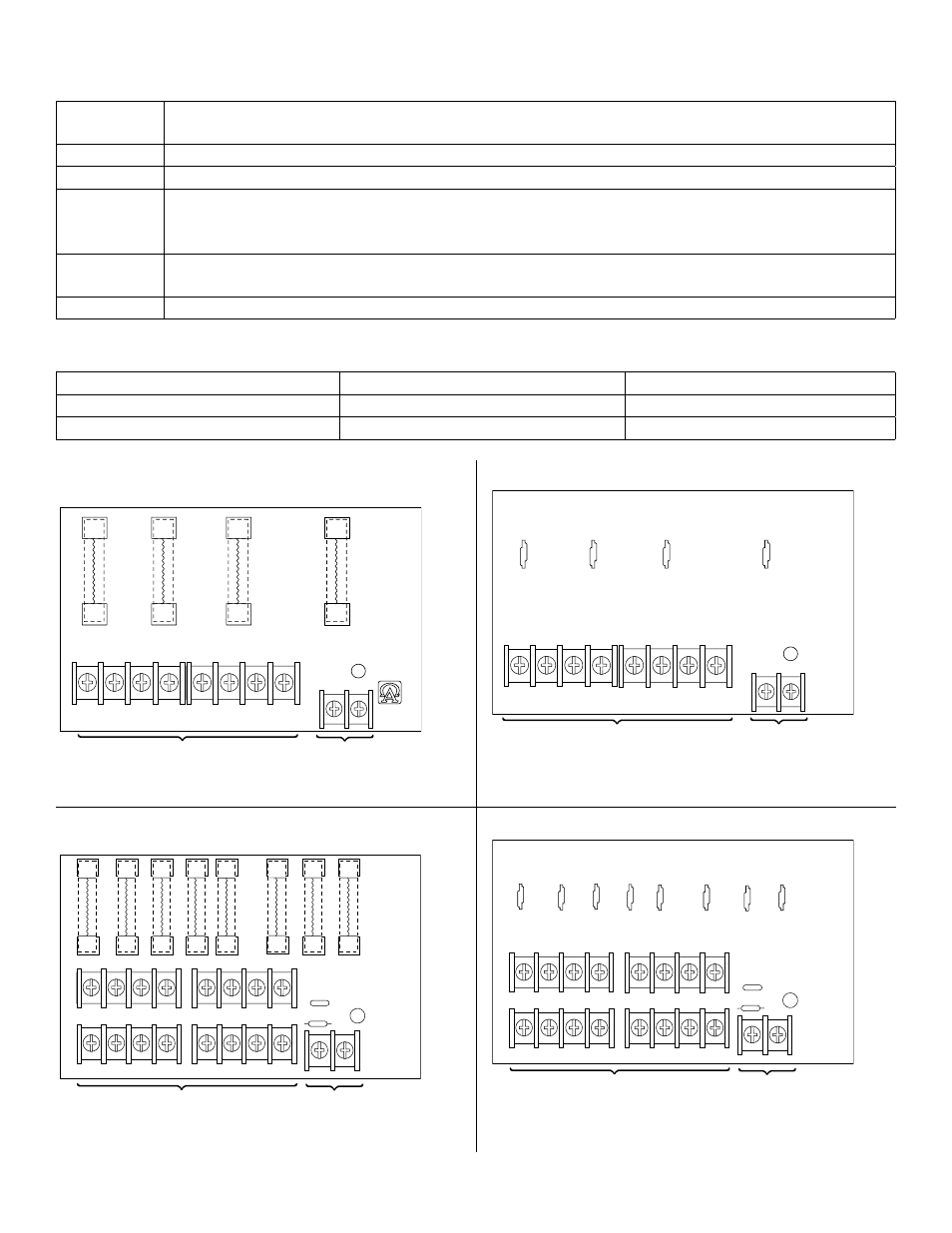

Terminal Identification:
Power Supply Board
Terminal
Legend
Function/Description
L, G, N
Connect 115VAC 60 Hz. to these terminals: L to hot, N to Neutral.
+ DC ---
12VDC or 24VDC @ 6 amp continuous npn power-limited output.
AC Fail
NC, C, NO
Indicates loss of AC power, e.g. connect to audible device or alarm panel. Relay normally energized
when AC power is present. Contact rating 1 amp @ 28VDC. AC or brownout fail is reported within
1 minute of event. To delay reporting of up to 6 hrs., cut “AC delay” jumper and reset power to unit.
Bat Fail
NC, C, NO
Indicates low battery condition, e.g. connect to alarm panel. Relay normally energized
when DC power is present. Contact rating 1 amp @ 28VDC.
+ BAT ---
Stand-by battery connections. Maximum charge current 0.7 amp.
Power Distribution Module
Terminal Legend PD4UL/PD4ULCB Terminal Legend PD8UL/PD8ULCB Function/Description
1P to 4P
1P to 8P
Normal operating condition.
1N to 4N
1N to 8N
No Power Output.
INPUT
LED
PD4UL
POWER DISTRIBUTING UNIT
AL
TRONIX CORP
.
BROOK
LY
N, NY
1
1220
MADE IN US
A
1P, 2P, 3P, 4P = FUSED OUTPUTS
1N, 2N, 3N, 4N = COMMON OUTPUTS
F1
F2
F3
F4
COMMON POWER OUTPUTS
1P
1N
2P
2N
3P
3N
4P
4N
From Power Supply
Board
(Factory Installed)
Replace fuses with the same type and rating 3.5A, 250V.
Non Power-Limited
DC Output to devices
1P-4P Power Outputs,
1N-4N Common Outputs
(
)
Fig. 2a
Fig. 3a
N
C O M M O N P O W E R O U T P U T S
P
F U S E D P O W E R O U T P U T S
1
2
3
4
5
6
7
8
D1
INPUT
R1
LED
From Power Supply
Board
(Factory Installed)
Replace fuses with the same type and rating 3.5A, 250V.
Non Power-Limited
DC Output to devices
1P-8P Power Outputs,
1N-8N Common Outputs
(
)
PD8UL
POWER DISTRIBUTING UNIT
INPUT
LED
F1
F2
F3
F4
POWER OUTPUTS
1P
1N
2P
2N
3P
3N
4P
4N
Class 2 Rated Power-Limited
DC Output to devices
1P-4P Power Outputs,
1N-4N Common Outputs
From Power Supply
Board
(Factory Installed)
(
)
PD4ULCB
POWER DISTRIBUTING UNIT
Fig. 2b
Fig. 3b
N
COMMON POWER OUTPUTS
P
FUSED POWER OUTPUTS
1
2 3
4
5
6
7
8
D1
INPUT
R1
LED
From Power Supply
Board
(Factory Installed)
Class 2 Rated Power-Limited
DC Output to devices
1P-8P Power Outputs,
1N-8N Common Outputs
(
)
PD8ULCB
POWER DISTRIBUTING UNIT
