AL600ULX Series - 3 -
Door
CAUTION: De-energize unit prior to servicing. For continued protection against risk of electric shock and
fire hazard replace fuse with the same type and rating. Do not expose to rain or moisture.
Wire
Strap
(from
Enclosure
to Door)
Battery & AC
Supervision
Circuit
(power-limited)
Class 1
Power
Distribution
Module(s)
INPUT
Divider
Earth
Ground
+ DC ---
BA
T
FA
IL
NC C NO NC C NO
+ BAT ---
AC
FA
IL
DC
AC
BA
T
LG
N
5A
250V
OPEN - 24V
CLOSED - 12V
AC Delay
OPEN - 24V
CLOSED - 12V
Battery
connection
(non power-limited)
(non power-limited)
(non
power-
limited)
CAUTION: Optional rechargeable stand-by batteries must match the power supply output
voltage setting.
Keep power-limited wiring separate from non power-limited. Use minimum 0.25" spacing.
Optional Rechargeable
Stand-by Battery
Optional Rechargeable
Stand-by Battery
Stand-by Specifications (total current shown):
Output
4 hr. of Stand-by &
5 Minutes of Alarm
24 hr. of Stand-by &
5 Minutes of Alarm
60 hr. of Stand-by &
5 Minutes of Alarm
12VDC / 40AH Battery
Stand-by = 6.0 amp
Alarm = 6.0 amp
Stand-by = 1.0 amp
Alarm = 6.0 amp
Stand-by = 300mA
Alarm = 6.0 amp
24VDC / 12AH Battery --------
Stand-by = 200mA
Alarm = 6.0 amp
--------
24VDC / 40AH Battery
Stand-by = 6.0 amp
Alarm = 6.0 amp
Stand-by = 1.0 amp
Alarm = 6.0 amp
Stand-by = 300mA
Alarm = 6.0 amp
Installation Instructions:
Wiring methods shall be in accordance with the National Electrical Code/NFPA 70/NFPA 72/ANSI, and with all local
codes and authorities having jurisdiction. Product is intended for indoor use only.
1. Mount unit in desired location. Mark and predrill holes in the wall to line up with the top two keyholes in the
enclosure. Install two upper fasteners and screws in the wall with the screw heads protruding. Place the enclosure’s
upper keyholes over the two upper screws, level and secure. Mark the position of the lower two holes.
Remove the enclosure. Drill the lower holes and install the two fasteners. Place the enclosure’s upper keyholes over the
two upper screws. Install the two lower screws and make sure to tighten all screws (Enclosure Dimensions, pg. 7-8).
2. The power supply is pre-wired to the ground (chassis). Connect main incoming ground to the provided green
grounding conductor lead. Connect unswitched AC power (115VAC / 60 Hz to terminals marked [L, N]
(Fig. 1, pg. 3). Use 14 AWG or larger for all power connections (Battery, DC output, AC input). Use 22 AWG to
18 AWG for power-limited circuits (AC Fail/Low Battery reporting).
Keep power-limited wiring separate from non-power limited wiring (115VAC / 60Hz Input, DC Output,
Battery Wires). Minimum 0.25” spacing must be provided.

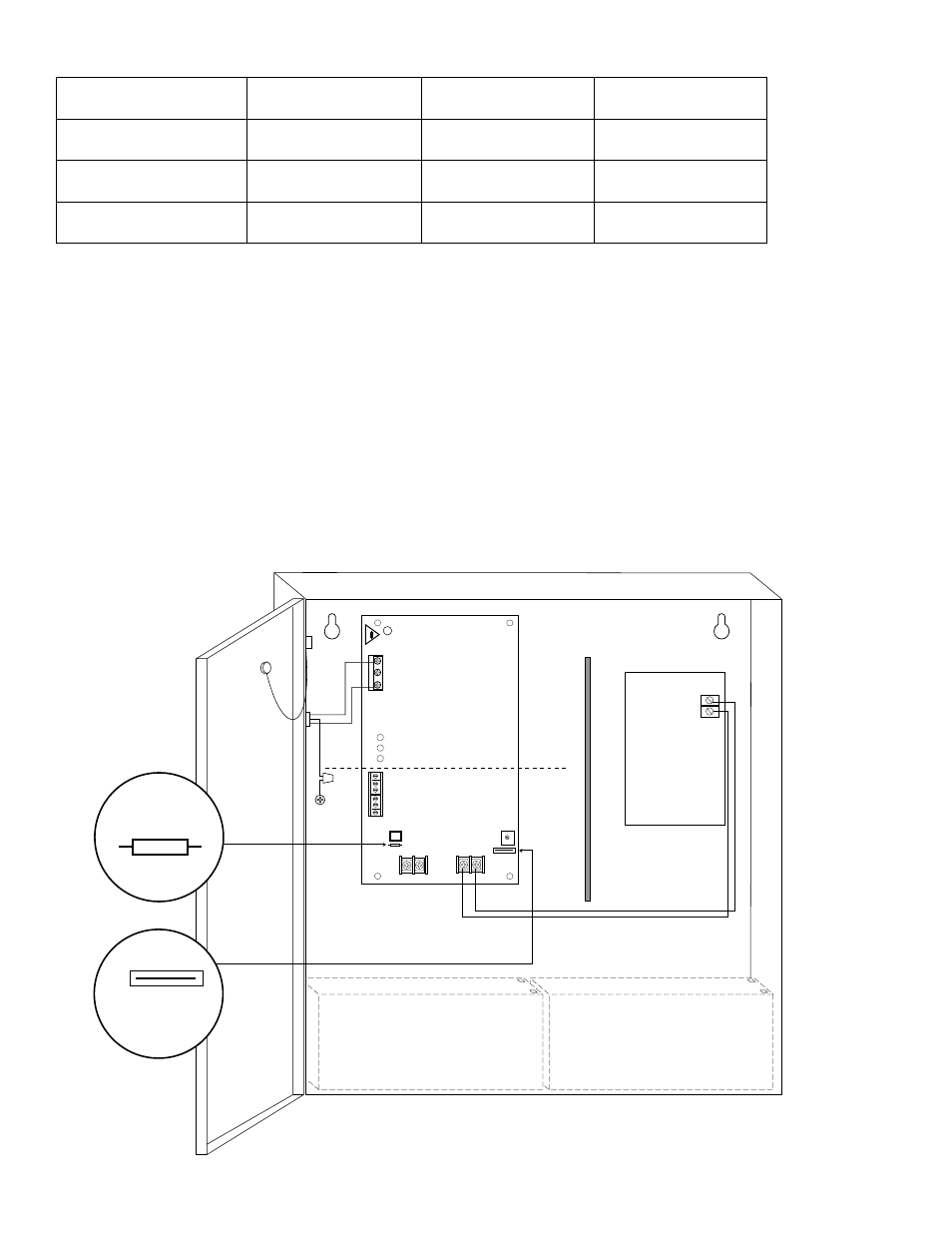

Fig. 1
Fig. 1a
Fig. 1b
