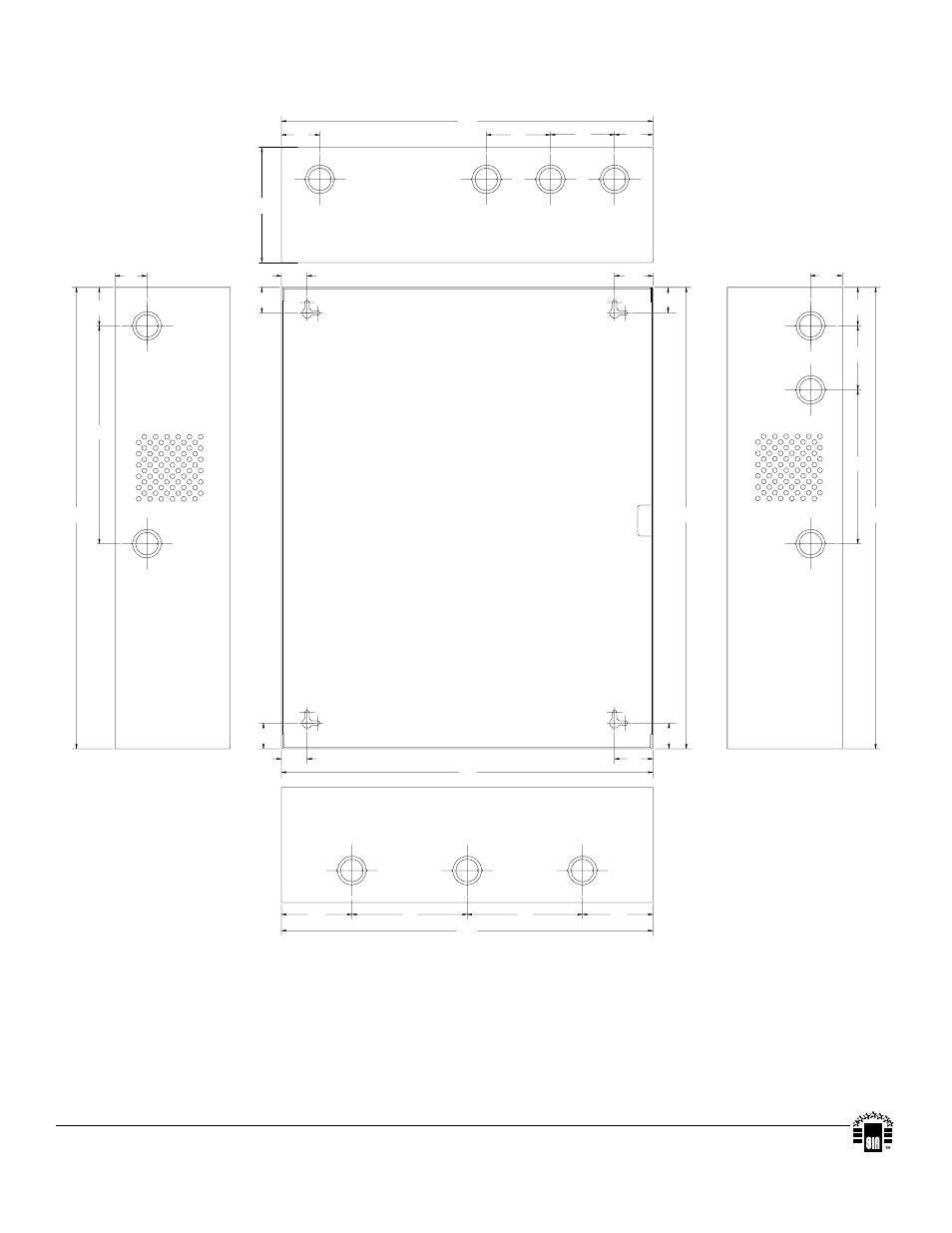

Enclosure Dimensions

(H x W x D approximate)

:

18” x 14.5” x 4.5” (457.2mm x 368.3mm x 114.3mm)

1.5”

(38.1mm)

1.0”

(25.4mm)

4.5”

(114.3mm)

1.0”

(25.4mm)

1.0”

(25.4mm)

1.25”

(31.75mm)

1.25”

(31.75mm)

1.0”

(25.4mm)

1.5”

(38.1mm)

1.5”

(38.1mm)

1.5”

(38.1mm)

1.5”

(38.1mm)

8.5”

(215.9mm)

18.0”

(457.2mm)

18.0”

(457.2mm)

18.0”

(457.2mm)

6.0”

(152.4mm)

2.5”

(63.5mm)

2.75”

(69.85mm)

2.75”

(69.85mm)

4.5”

(114.3mm)

4.5”

(114.3mm)

14.5”

(368.3mm)

14.5”

(368.3mm)

1.0”

(25.4mm)

1.0”

(25.4mm)

14.5”

(368.3mm)

2.5”

(63.5mm)

1.5”

(38.1mm)

2.5”

(63.5mm)
