SMP1012Xseries - 3 -
Earth Ground
Wire Strap
(from
Enclosure
to Door)
115 power mains
CAUTION: De-energize unit prior to servicing. For continued protection
against fire hazard replace fuse with the same type and rating, 15A, 32V.
Power Supply
Board
L G N
OFF ON
LOW BA
T
NC C NO NC C NO
AC
FA
IL
--- BAT + --- DC +
AC DC
5A 250V
15A
12VDC Rechargeable Battery
(optional)
CAUTION: Optional rechargeable stand-by batteries must match the power supply
output voltage setting.
Keep power-limited wiring separate from non power-limited. Use minimum 0.25" spacing.

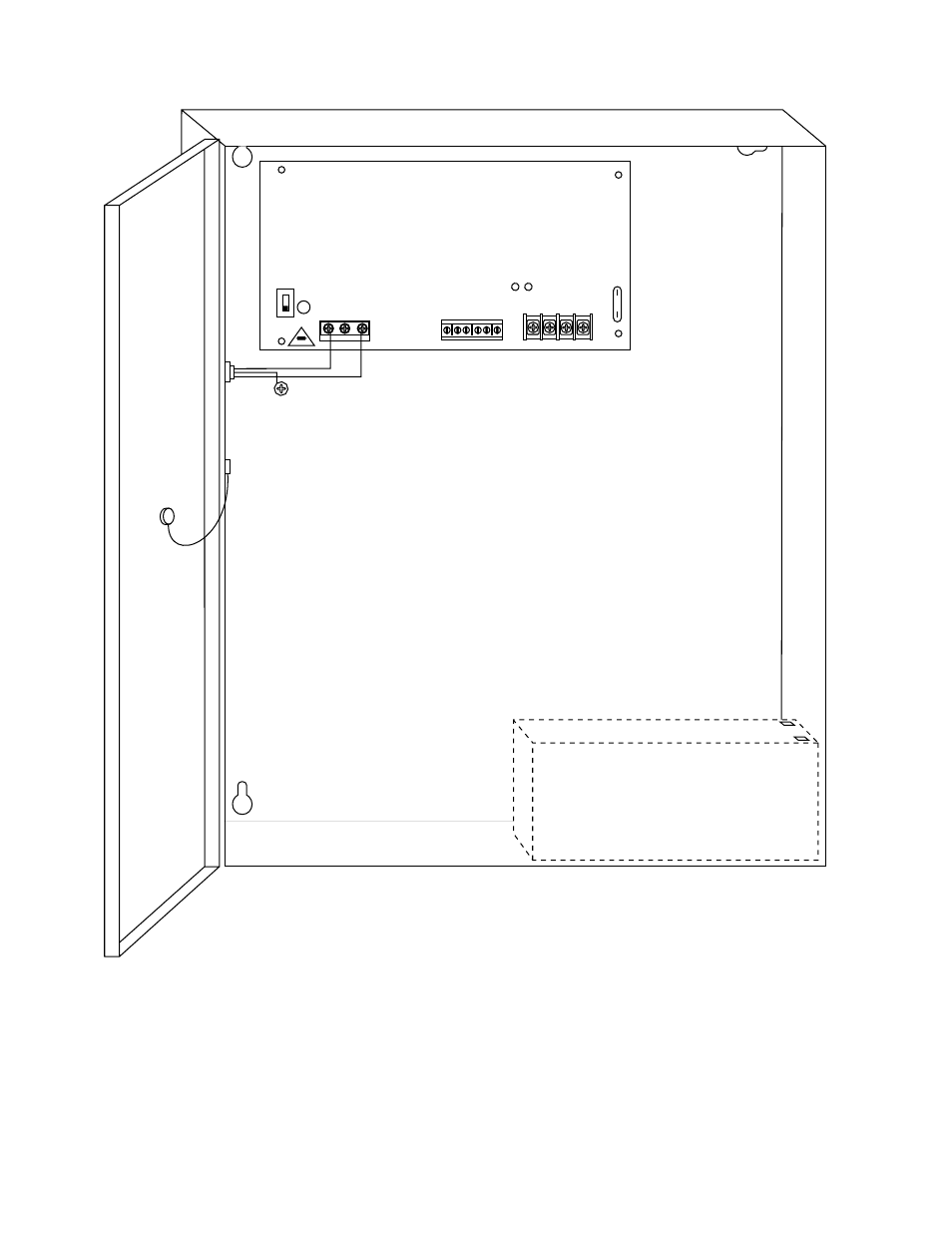

Fig. 2
