eFlow6N Series - 9 -
Door
Wire Strap
(from
Enclosure
to Door)
Battery & AC Supervision
Circuit (power-limited)
CAUTION: When power supply board is set for 12VDC use only one (1) 12VDC
stand-by battery.
Keep power-limited wiring separate from non power-limited. Use minimum 0.25" spacing.
12AH Rechargeable batteries are the largest batteries that can fit in this enclosure.
A UL Listed external battery enclosure must be used if using the 40AH or 65AH batteries.
OPEN 24V
CLOSED 12V
Switch Detail
L G
N NC C NO NC C NO
BAT FAIL AC FAIL
---
DC
+
AC AC1 DC
---
BA
T
+
– AUX + TRIGGER EOL
SUPERVISED
5A 250V
RESET
GND NO
OPEN --- 24V
CLOSED --- 12V
disable
enable 2 hr.
1 min.
AC DELA
Y
SHUTDOW
N
O N
120VAC power mains
(non power-limited)
Class 1
power-limited
Green
Lead
(ground)
Battery connections
(non power-limited)
Optional Rechargeable Stand-by
Battery for UL294 Applications.
Note: 12V batteries required for UL603,
UL1481 and Canadian installations.
Optional Rechargeable Stand-by
Battery for UL294 Applications.
Note: 12V batteries required for UL603,
UL1481 and Canadian installations.
DC Output to devices*
(refer to Fig. 3a, 3b
for board configuration pg. 6)
PD8UL/PD8ULCB
DC Output to devices*
(refer to Fig. 3a, 3b
for board configuration pg. 6)
PD8UL/PD8ULCB
Edge of
Enclosure
to Access Control
Panel or
U.L. Listed
Reporting
Device
Enclosure
Sentrol
model # 3012
Tamper Switch
or equivalent
(Not Included)

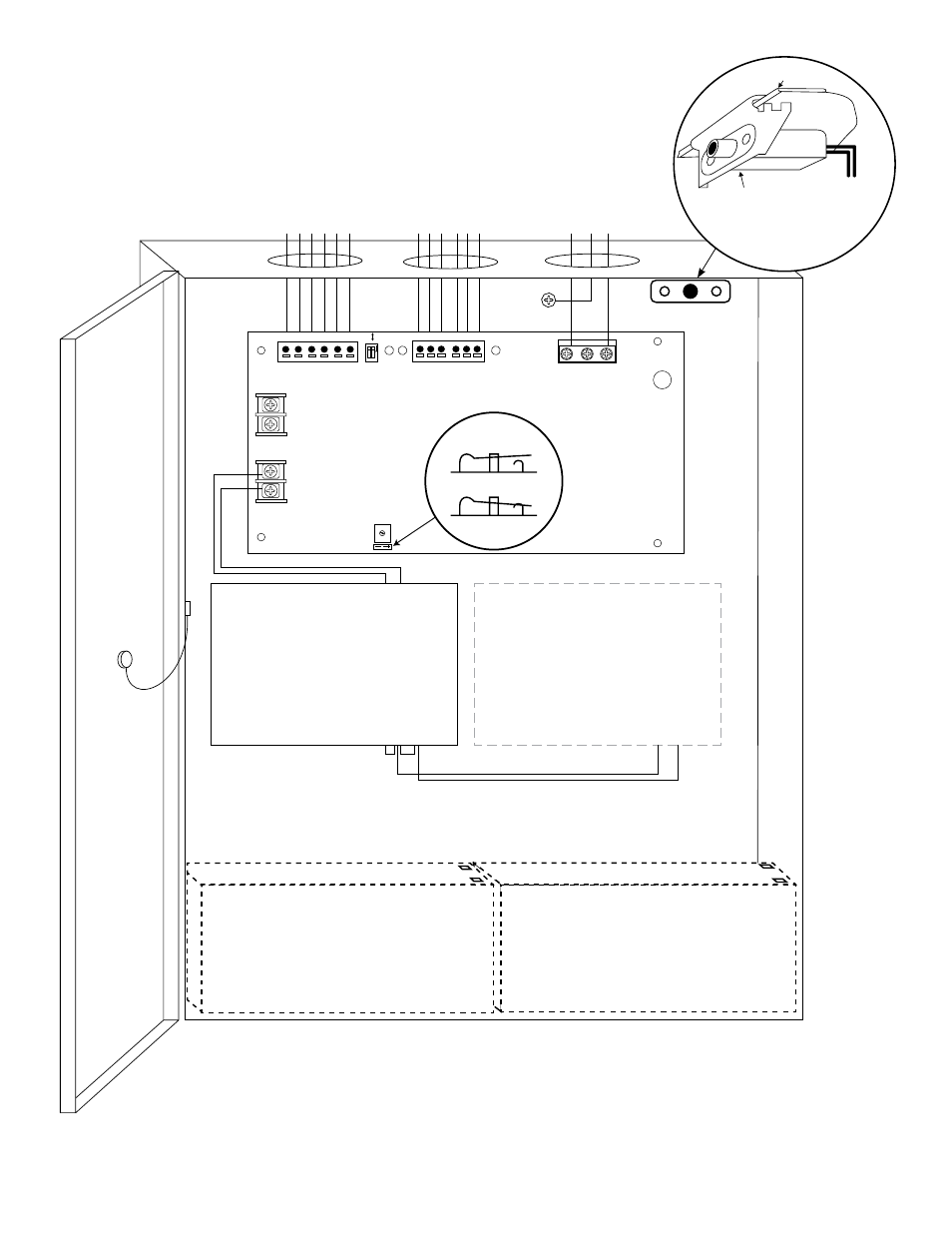

Fig. 8 - eFlow6NX configuration
*Outputs are non power-limited: eFlow6NX, eFlow6NX8, eFlow6NX8D, eFlow6NX16.
Outputs are power-limited: eFlow6NX8D, eFlow6NX16D.
