- 6 - eFlow6N Series
Power Distribution Module(s):

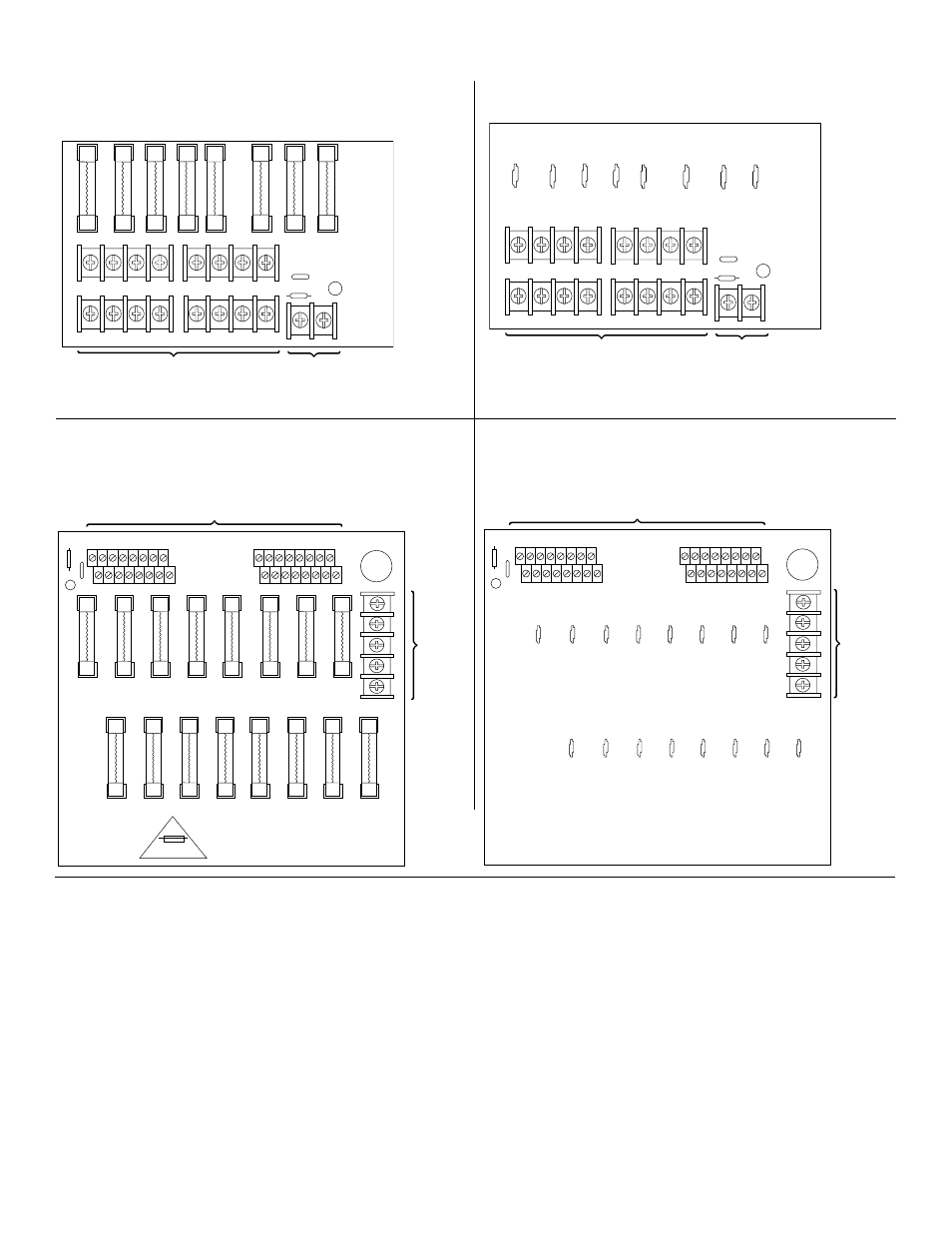

Fig. 3a - PD8UL Power Distribution Board Fig. 3b - PD8ULCB - Power Distribution Board
Non Power-Limited Outputs Power-Limited Outputs
Fig. 4a - PD16W Power Distribution Board Fig. 4b - PD16WCB - Power Distribution Board
Non Power-Limited Outputs Power-Limited Outputs
N
COMMON POWER OUTPUTS
P
FUSED POWER OUTPUTS
1 2 3 4 5 6 7 8
D1
INPUT
R1
LED
From Power Supply
Board
(Factory Installed)
Replace fuses with the same type and rating 3.5A, 250V.
DC Output to devices
1P-8P Power Outputs,
1N-8N Common Outputs
( )
N
COMMON POWER OUTPUTS
P
FUSED POWER OUTPUTS
1 2 3 4 5 6 7 8
D1
INPUT
R1
LED
From Power Supply
Board
(Factory Installed)
DC Output to devices
1P-8P Power Outputs,
1N-8N Common Outputs
( )
common
outputs
protected
outputs
P
N
N
P
S
Input
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
P
N
3.5A 250V
For continuous protection against risk of fire
replace fuses with same type and rating.
From
Power
Supply
Board
(Factory
Installed)
DC Output to devices
1P-16P Power Outputs,
1N-16N Common Outputs
( )
P
N
N
P
S
Input
N
P
common
outputs
protected
outputs
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
From
Power
Supply
Board
(Factory
Installed)
DC Output to devices
1P-16P Power Outputs,
1N-16N Common Outputs
) (
