J2 j1, Power supply board output voltage settings, Fig. 1 fig. 1a – Altronix Maximal77D Installation Instructions User Manual

Page 9: Fig. 2 fig. 2a fig. 2b, Maximal11d/maximal33d - power supply board, Switch detail, No c nc facp, Open switch closed switch

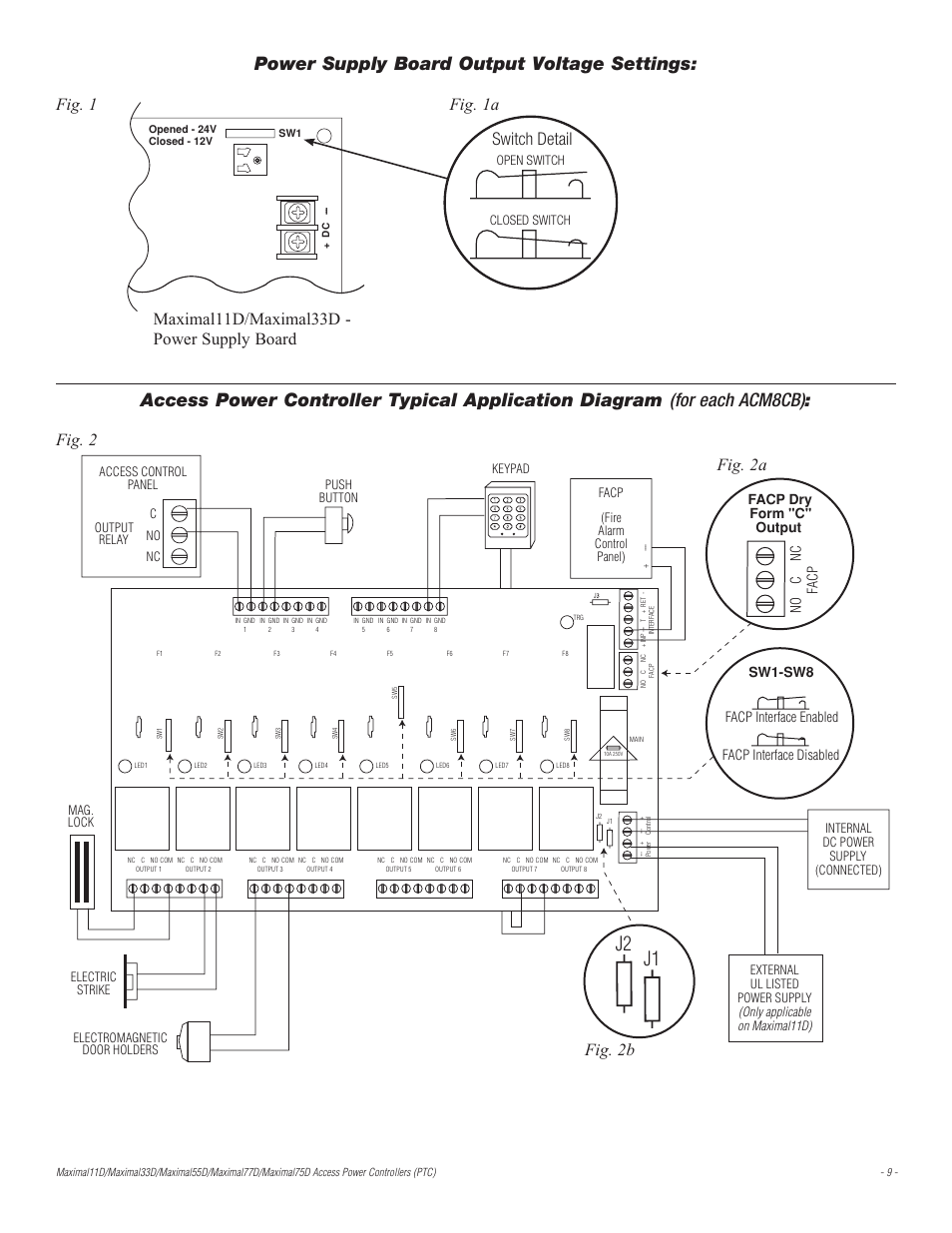

J2 j1, Power supply board output voltage settings, Fig. 1 fig. 1a | Fig. 2 fig. 2a fig. 2b, Maximal11d/maximal33d - power supply board, Switch detail, No c nc facp, Open switch closed switch | Altronix Maximal77D Installation Instructions User Manual | Page 9 / 20 J2 j1, Power supply board output voltage settings, Fig. 1 fig. 1a | Fig. 2 fig. 2a fig. 2b, Maximal11d/maximal33d - power supply board, Switch detail, No c nc facp, Open switch closed switch | Altronix Maximal77D Installation Instructions User Manual | Page 9 / 20
