eFlow3N Series - 9 -
Door
Wire Strap
(from
Enclosure
to Door)
Battery & AC Supervision
Circuit (power-limited)
CAUTION: When power supply board is set for 12VDC use only one (1) 12VDC
stand-by battery.
Keep power-limited wiring separate from non power-limited. Use minimum 0.25" spacing.
12AH Rechargeable batteries are the largest batteries that can fit in this enclosure.
A UL Listed external battery enclosure must be used if using the 40AH or 65AH batteries.
OPEN 24V
CLOSED 12V
Switch Detail
L G
N NC C NO NC C NO
BAT FAIL AC FAIL
---
DC
+
AC AC1 DC
---
BA
T
+
– AUX + TRIGGER EOL
SUPERVISED
5A 250V
RESET
GND NO
OPEN --- 24V
CLOSED --- 12V
disable
enable 2 hr.
1 min.
AC DELA
Y
SHUTDOW
N
O N
120VAC power mains
(non power-limited)
Class 1
power-limited
Green
Lead
(ground)
Battery connections
(non power-limited)
Optional Rechargeable Stand-by
Battery for UL294 Applications.
Note: 12V batteries required for UL603,
UL1481 and Canadian installations.
Optional Rechargeable Stand-by
Battery for UL294 Applications.
Note: 12V batteries required for UL603,
UL1481 and Canadian installations.
PD4UL/PD4ULCB
DC Output to devices
(refer to Fig. 3a or 3b
for board configuration pg. 6)
Edge of
Enclosure
to Access Control
Panel or
U.L. Listed
Reporting
Device
Enclosure
Sentrol
model # 3012
Tamper Switch
or equivalent
(Not Included)

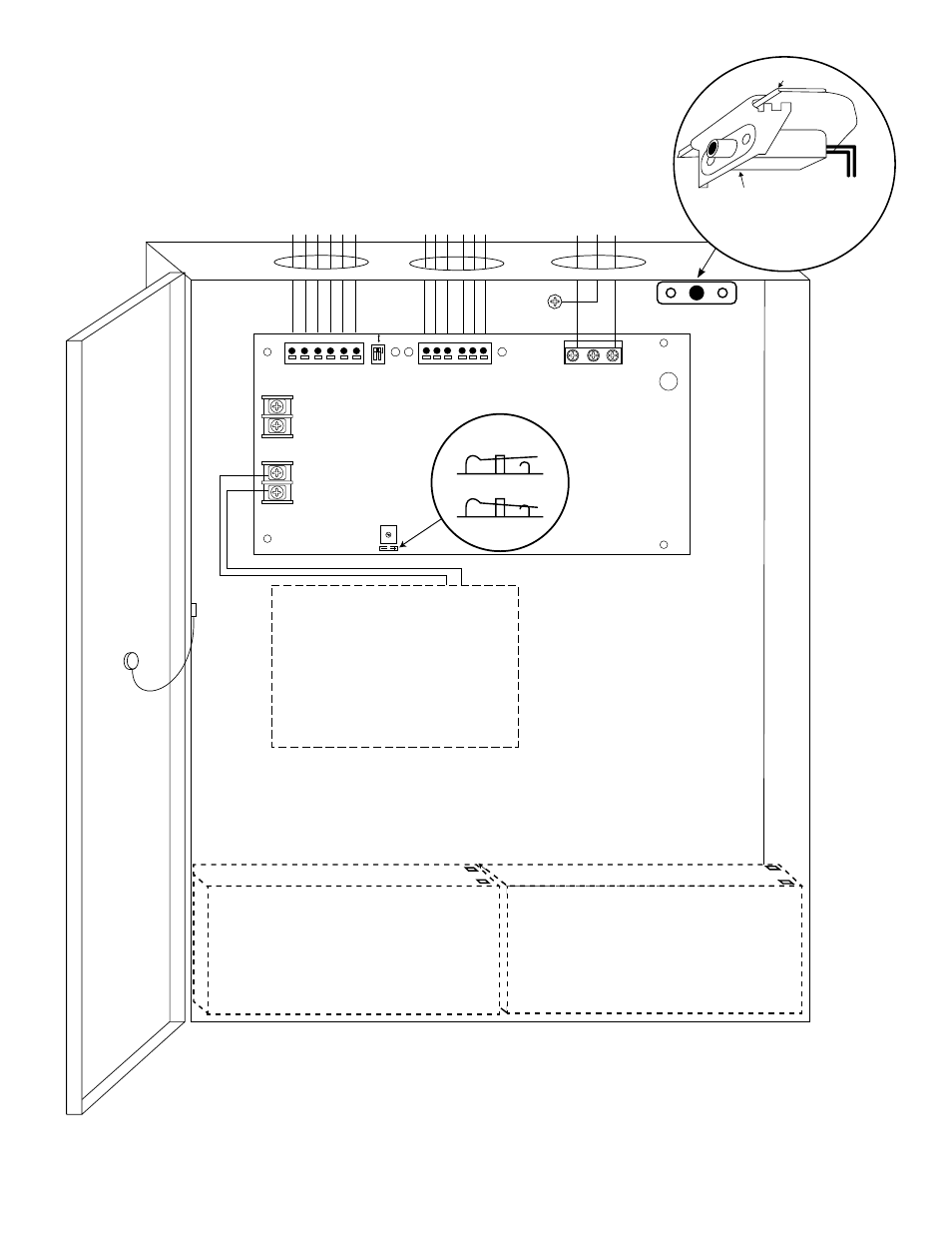

Fig. 6 - eFlow3NX configuration
