eBridge1PCRMT
- 3 -

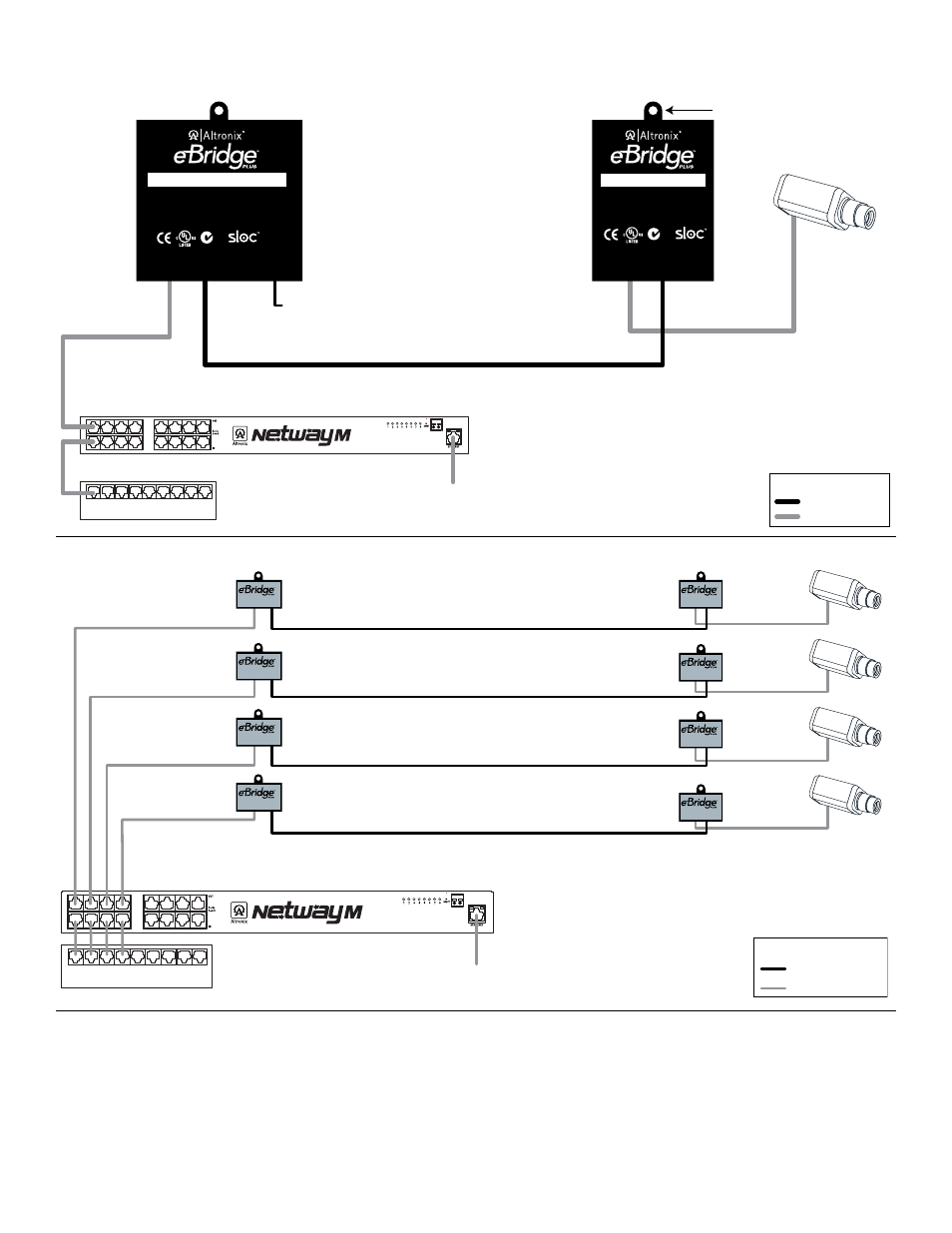

Single PoE camera connection:
Fig. 2
Fig. 2a
Multiple PoE camera connection:
Fig. 3
Ethernet Switch
NetWay8M - Front Panel
+ PoE --
SHUTDOWN
Local Area Network (LAN)
or Laptop connection
PoC (PoE/PoE+ over Coax) 457m (1,500 ft.) max.
Aux. 24VAC
or 24VDC Input
PoE compliant
100m (328 ft.) max.
100m (328 ft.) max.
Coax
Structured Cable
Legend:
Mounting Hole
PoE Camera
eBridge1PCTX
eBridge1PCRM
