Connections
MoRoS Modem - ISDN 1.3
18
8
CTS
Clear To Send
9
RI
Ring Indication
Table 11: Description of the pin allocation of the sub-D jack
6.5
RJ45 phone connection (for modem)

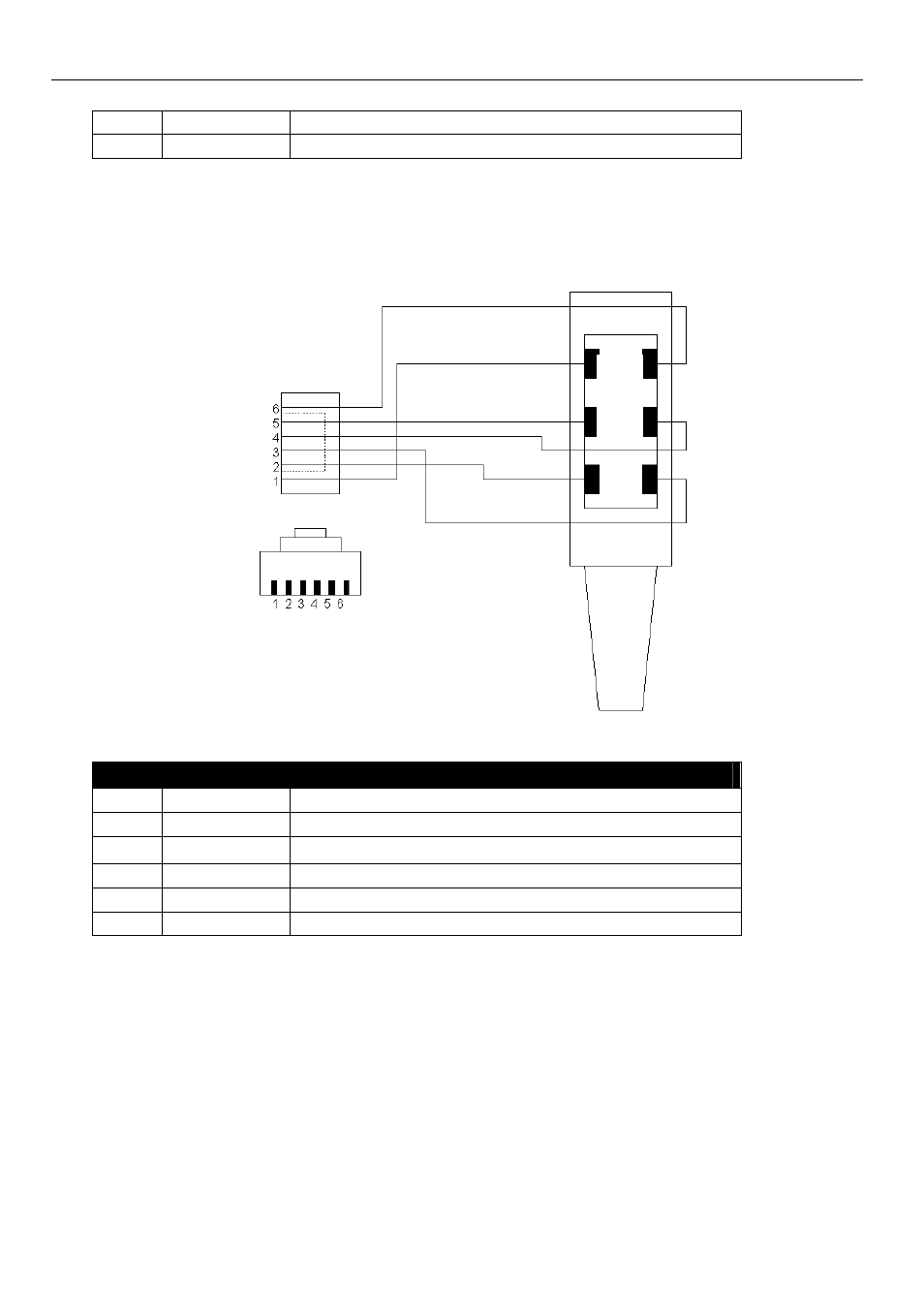

Figure 6: RJ12 jack connected to TAE jack
Pin
Signal
Description
1
E
Not connected.
2
a2
To connect a phone in series.
3
a1
Incoming phone line (PSTN or PBX).
4
b1
Incoming phone line (PSTN or PBX).
5
b2
To connect a phone in series.
6
W
Not connected.
Table 12: Layout description of the RJ12 and TAE plugs
6.6
ISDN connection (for ISDN)
E W
b2 b1
a2 a1
