3 Product description
PLICSRADIO C62 • Wireless processing unit for PLICSRADIO T62
32627-EN-130701
3 Product description
3.1 Configuration
The scope of delivery encompasses:
•
PLICSRADIO C62 processing unit
•
Terminal socket
•
Coded pins and bridges
•
RS232 modem connection cable (optional)
•
Documentation
– this operating instructions manual
– Supplementary instruction 30325 "RS232/Ethernet connection"
(optional)
– Supplementary instructions manual 30768 "Modbus-TCP,
VEGA ASCII protocol" (optional)
The PLICSRADIO C62 consists of the components:
•
PLICSRADIO C62 with display and adjustment unit in the front
•
Terminal socket
1 2 3 4
9 10 11 12
17 18 20 21 22
5 6 7 8
13 14 15 16
23 24 25 26 27 28
Ser. No.
12345678
on
OK ESC
COM
3
2
1
1
2
3
5
4

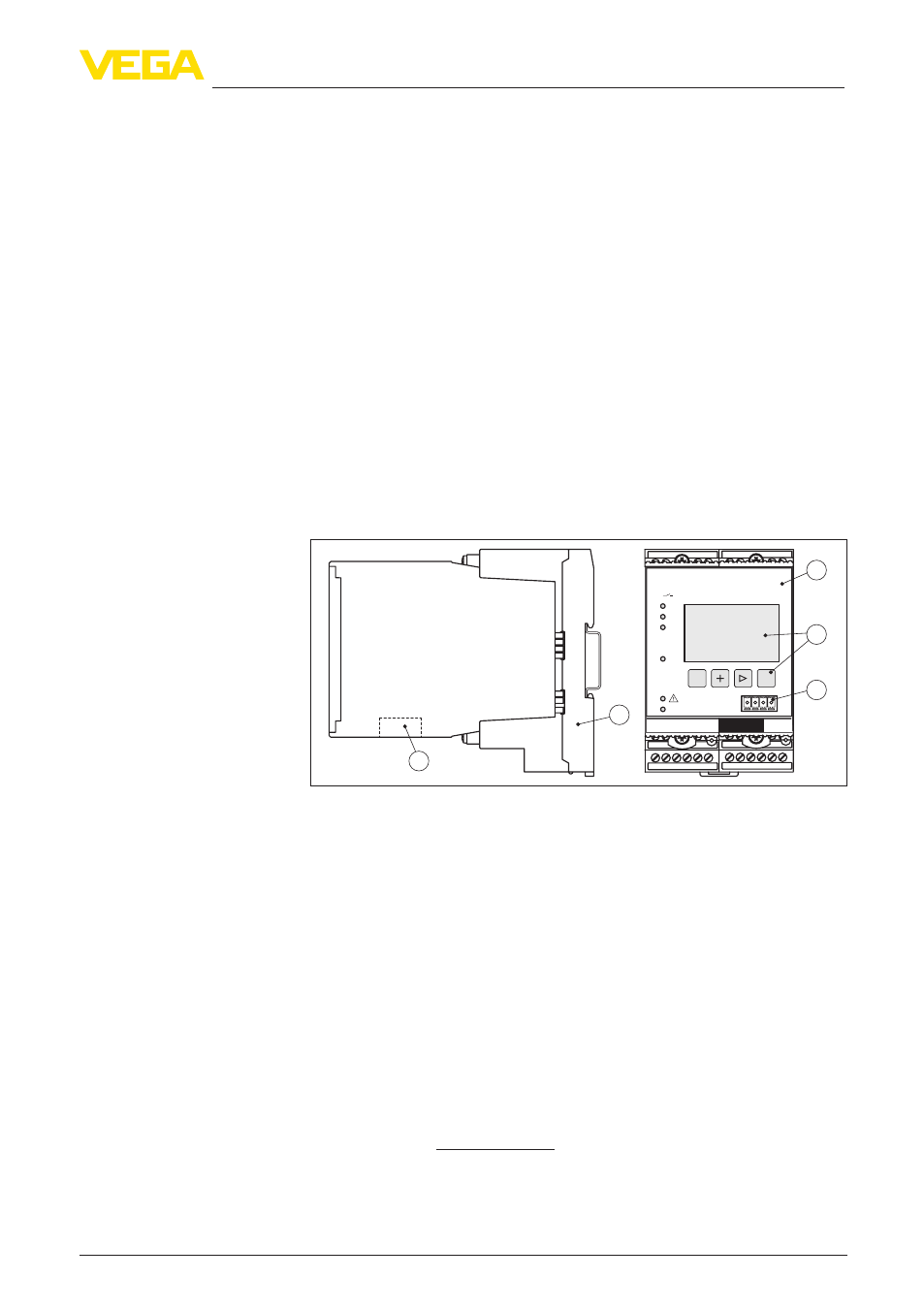

Fig. 1: PLICSRADIO C62
1 PLICSRADIO C62
2 Display and adjustment unit
3 Communication interface for VEGACONNECT (I²C)
4 RS232 or Ethernet interface (optional)
5 Terminal socket
The nameplate contains the most important data for identification and
use of the instrument:
•
Article number
•
Serial number
•
Technical data
•
Article numbers, documentation
The order data and the documentation of the instrument can be
retrieved by means of the instrument serial number on the type label.
To do this, go to www.vega.com, "VEGA Tools" and "serial number
search".
Scope of delivery
Constituent parts
Type plate
