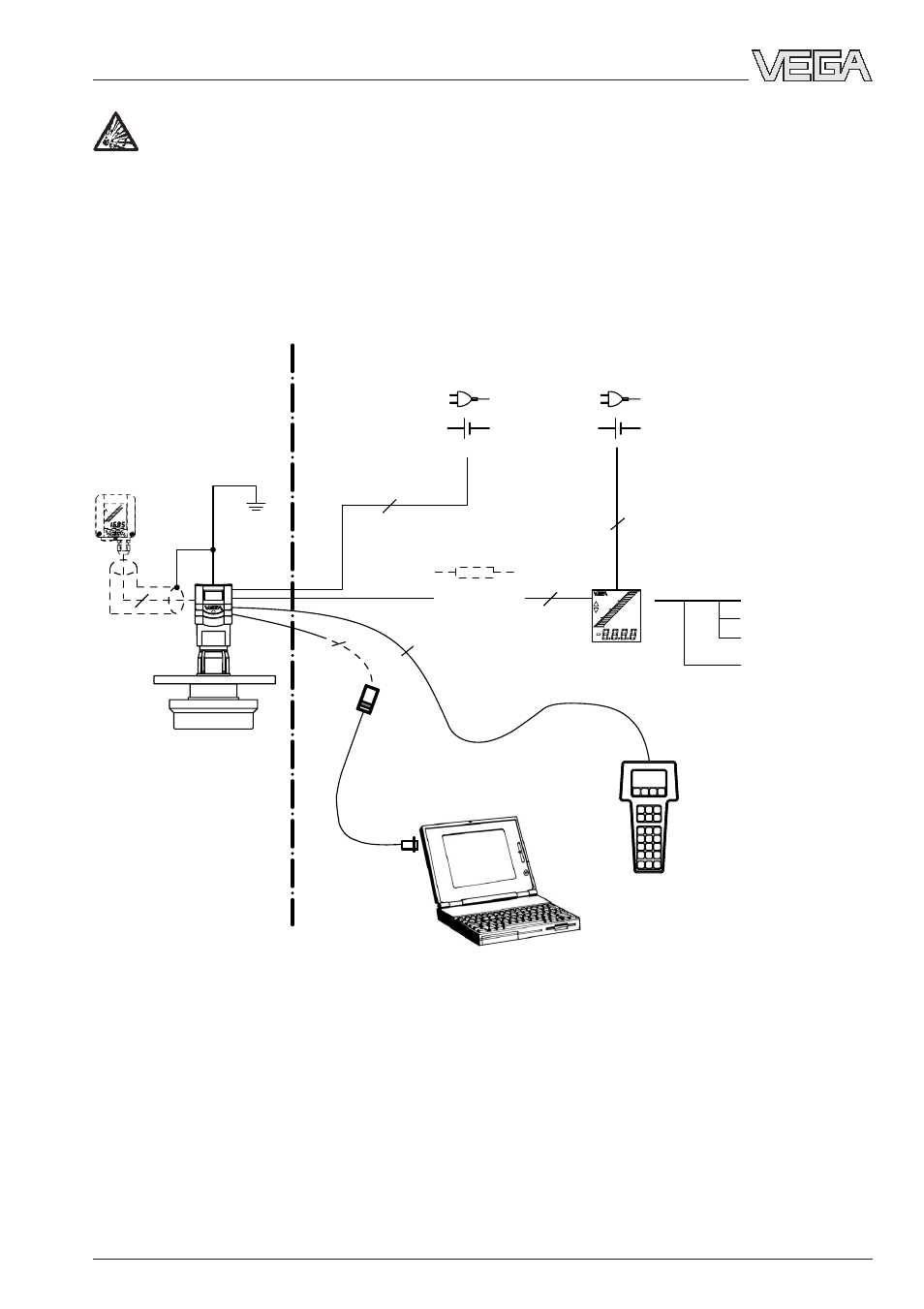

Measuring system consisting of VEGASON 54K … 56K and
VEGADIS 371 Ex indicating instrument with current and relay output
• Output signal 4 … 20 mA active
• Display module integrated into the sensor
• Optional external indicating instrument with analogue and digital indication (can be mounted
up to 25 m from the sensor)
• Adjustment with PC, HART ® handheld or adjustment module MINICOM (pluggable in the
sensor or in the external VEGADIS 50 indicating instrument)
Types and versions
(active)
VEGADIS 50
(see "3.2 Approvals“)
StEx area Non Ex area
HART ® handheld
VEGA-
CONNECT 2
Relay 1
Relay 2
Relay 3
