WOOD FRAME INSTALLATION & REMOVAL
The backside of the picture frame is in full contact with the front edges of the metal frame. Position the two corner woods and clips to
be guided by the vertical edges of the metal frame. Carefully push down (Figure C2) on the picture frame to set it in place.
The Corner wood blocks will make slight noise when they are bottom out to the metal frame. Push up picture frame (2 inches approx.)
to remove.
A SPDT switch is provided for security connection (optional). Contact rating: 10A, 1/2HP, 125/250VAC or 6A, 30VDC
.

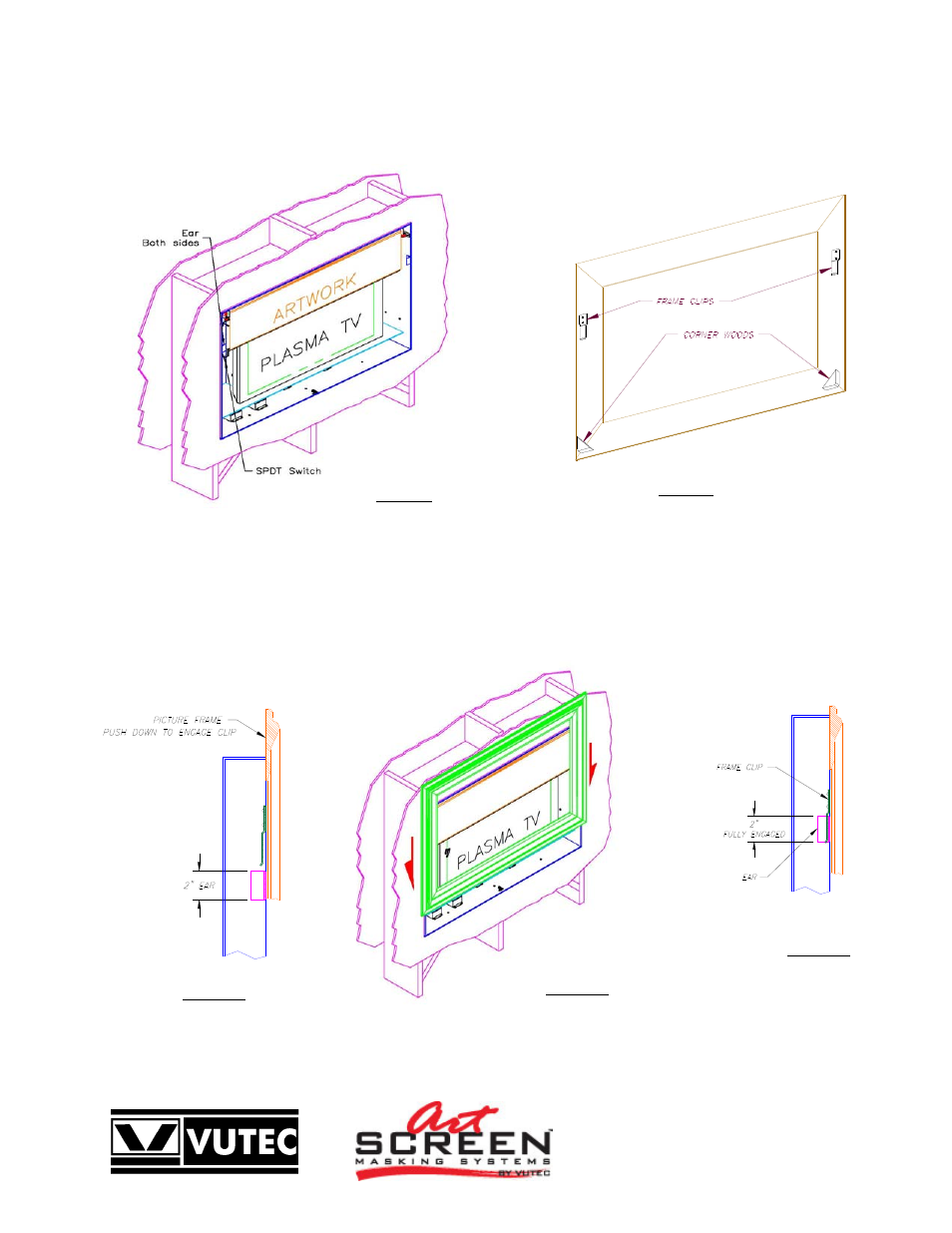

Figure A
Installed unit without picture frame
Figure B
Backside of wood frame
Figure C2
Wood frame pushed down
Figure C1
Frame clip and ear prior to
engagement
Figure C3
Clip fully engaged
